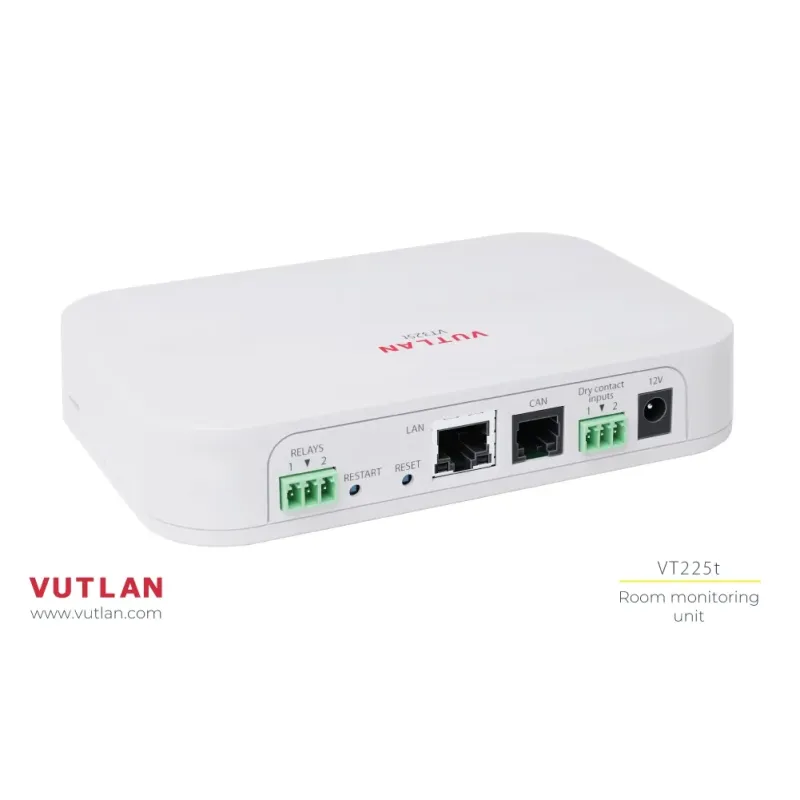

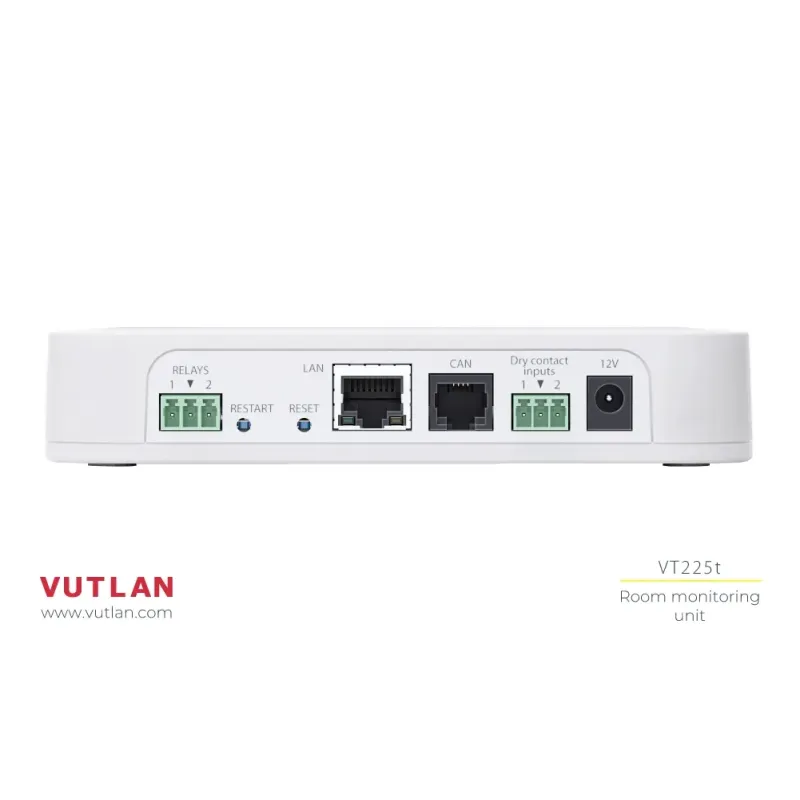

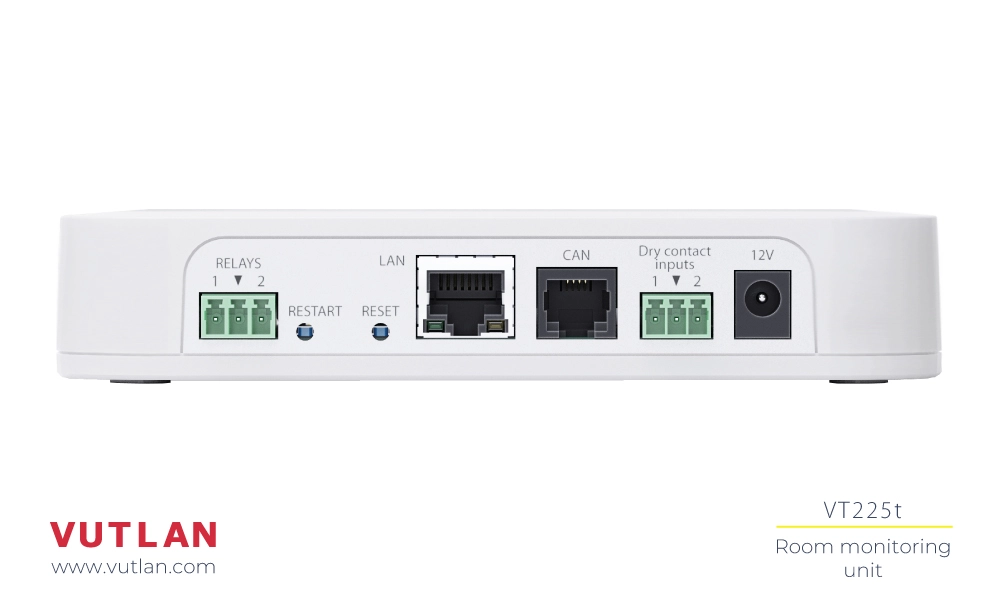

VT225t Office monitoring unit

€241.08 Tax included

Description
Use cases
Specifications
Features

Description

The VT225 / Office Monitoring Unit can be used for remote environmental monitoring in small offices. Its primary features include:

  • Environmental Monitoring: Measures temperature, humidity, voltage, access, smoke, dust, vibration, access, leakage, movement, airflow.

  • I/O Controller: 4 analog inputs, CAN input, two dry contacts, two relays 12V, SD, USB.

  • Scalability: Supports up to 500 elements, including sensors, virtual sensors, logic, notifications.

  • Built-in Web Interface:  100Mbit/s.

  • Notifications: Telegram, mail.
  • Processor: 600Mhz dual-core Cortex-A7,  128Mbit RAM.
VT225t Room Monitoring Unit - Flyer
VT225t online datasheet
VT225t package content
System specifications & comparison chart
CE EMC LVD ROHS certificate - LV units
Installation & Configuration manual
SNMP manual
Drivers
API

Specification

Device type:
Monitoring unit
Network Interface:
100Mit/s
Analog ports:
4
CAN:
1
Max. distance from the unit:
Analog sensors: 50-150m, CAN - 225m
Maximum units in a CAN bus:
31, depends on CAN device type
12V relays:
2
Dry contacts IN:
2
Dry contacts OUT:
8
Mounting:
Desktop, Wall
Extensions:
SD, USB-C
Status Indicators:
Red (Error), Green Led, Yellow, Orange (Relais)
Power inputs:
12V DC
Processor:
Dual core ARM, 600 Mhz, 128 MB
Operating temperature:
-10° C to +80° C
Origin of goods:
Made in EU
HS Code:
8537 10 910

Use cases

The VT225t / Remote Monitoring System can be highly effective for small IT rooms in several ways:

  • Monitoring the working environment: tracks the microclimate in the room.
  • The VT225t can integrate with IoT devices to provide automated control of office equipment.

Built-in web interface

All Vutlan monitoring devices have a built-in multilingual web interface for monitoring and managing the device. Here you can configure notifications and alerts, logic schemes, user access rights, sensors and elements. You can also view sensor graphs, logs and camera images.

Set up a Dashboard
WebUI configuration
Demo

Connecting CAN sensors

You can connect multiple CAN devices to a CAN bus chain.

Each VT408 unit in the CAN bus chain adds 8 analog sensors. Each VT440 unit adds 32 or 64 dry contact inputs to the system.

An additional CAN12V-1A power supply is only required if the number of CAN devices in the CAN bus chain exceeds 12 pieces.

Connecting CAN sensors
Configure CAN bus
CAN-12V-1A CAN power supply
