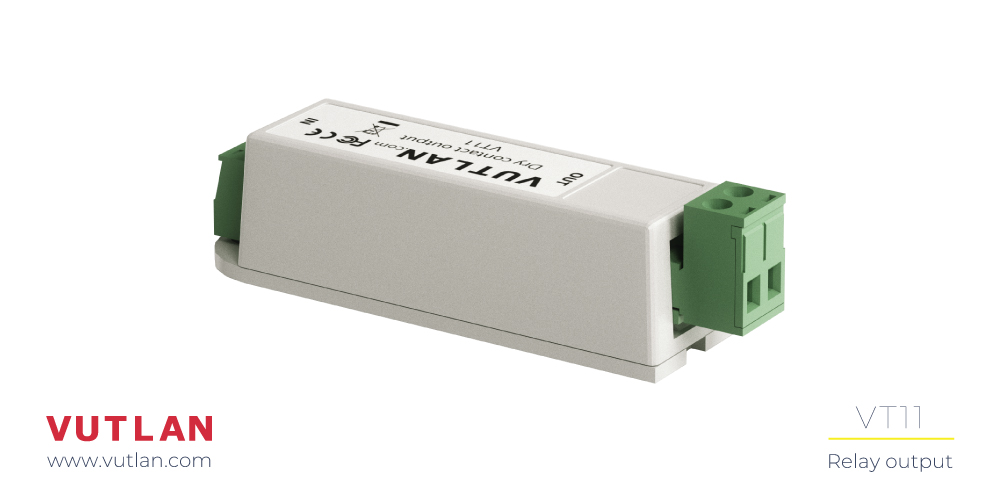

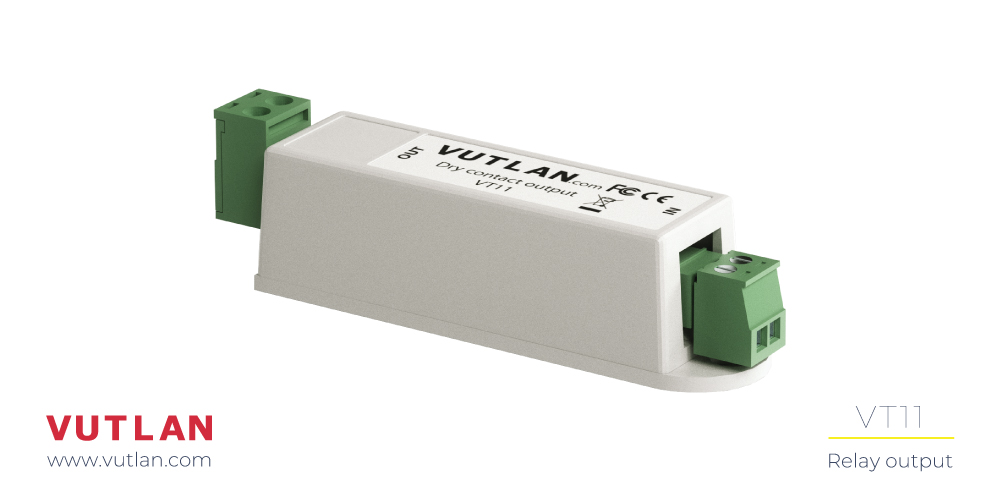

VT11 Relay output
Previous
Next
Description
The VT11 Relay output is designed to turn on/off loads. It can be connected to the 12VDC relay output of any Vutlan monitoring device to turn on/off when the device's 12V output is triggered.
Can manage max 5A power for magnetic locks, bolt locks, solenoid electromagnets, sirens, light sources, heaters, air conditioners, etc.
Can be connected to any Vutlan unit with 12V relay outputs.

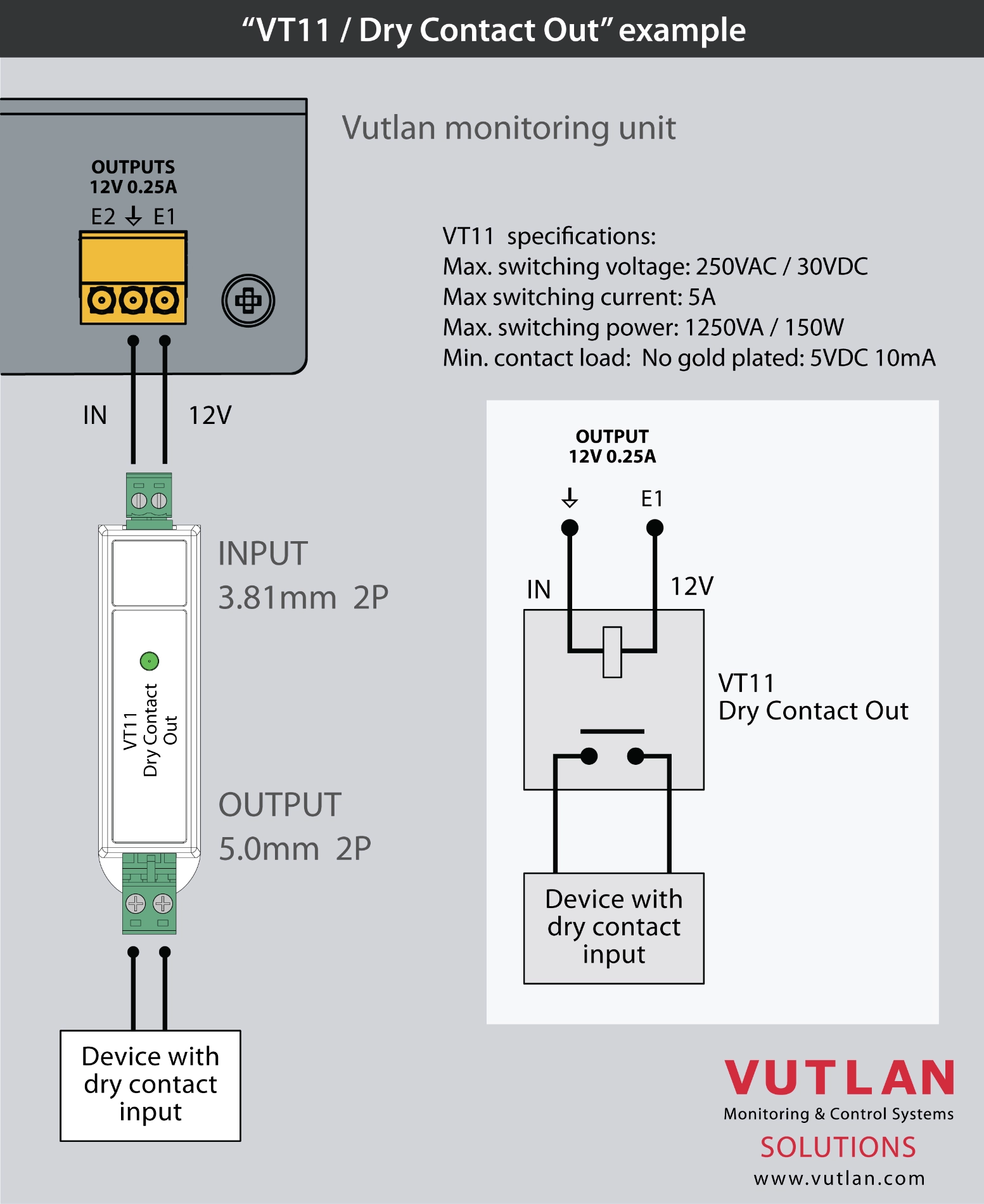

VT11 can be used separately with third-party controllers.
Use cases
Using VT11 in different conditions: in security and automation.

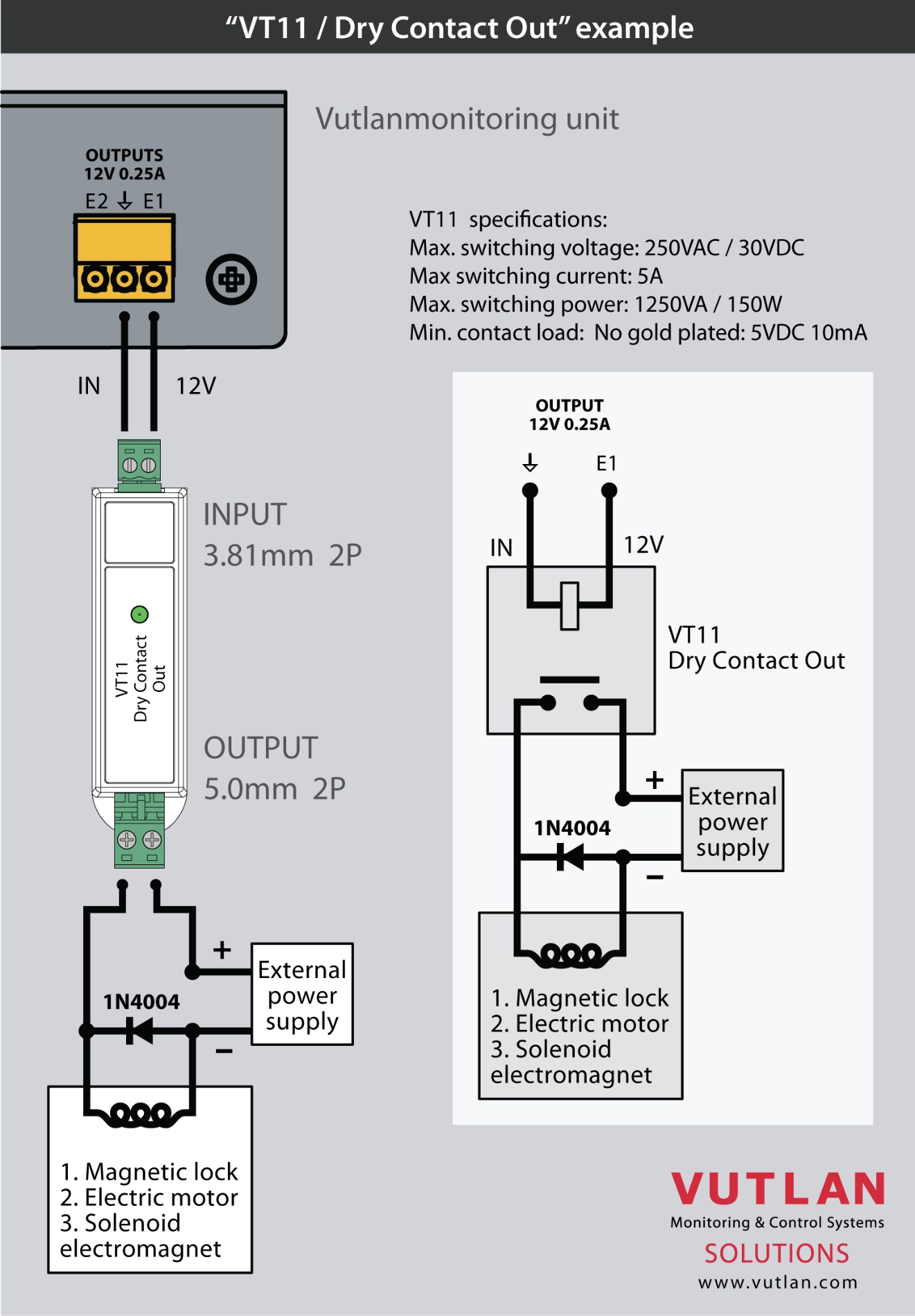

- Access control systems: VT11 can be used to control magnetic locks by signal from access control systems.

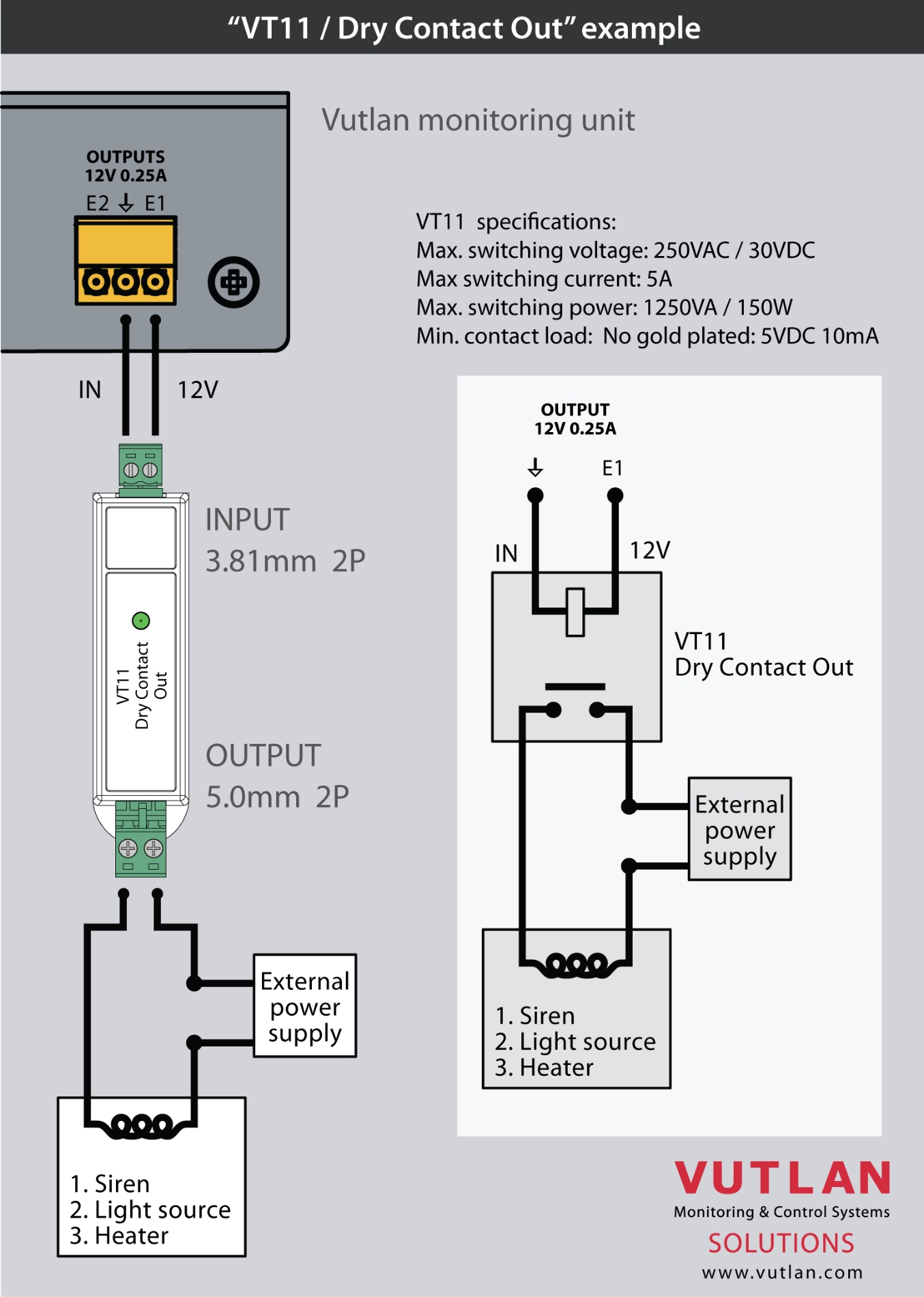

- Security Alarm Systems: In security systems, the VT11 can activate sirens or lights when an alarm is triggered.
Specifications
Used for:
Can be connected to Vutlan monitoring system with 12V DC outputs. Used as a relay switchable contact.
Input:
wire terminal, pitch 3.81mm, 2P
Outputs:
wire terminal, pitch 5.0mm, 2P
Operating temperature:
Min. -50 °C - Max.105 °C
Operating humidity:
Min. 5% - Max. 95% (Non-Condensing)
Max switching current:
5A
Max. switching voltage:
250VAC / 30VDC
Max. switching power:
1250VA / 150W
Min. contact load:
No gold plated: 5VDC 10mA
Power consumption:
12 mW
Max. distance:
200 meters
Dimensions:
60×18×18 mm
Mounting:
The mounting bracket, sticker, and screws are included.
Manufactured in:
Slovak Republic, E.U., Vutlan s.r.o.
HS Code:
9025 11 800
GTIN:
8588009886525
Controllers with 12V DC outputs:
The following Vutlan systems have 12V relay outputs that can be connected to 12VDC beacons as well as to the VT11 relay contact.
