LR800 Lora gateway server
Previous
Next
€479.70
Tax included
Description

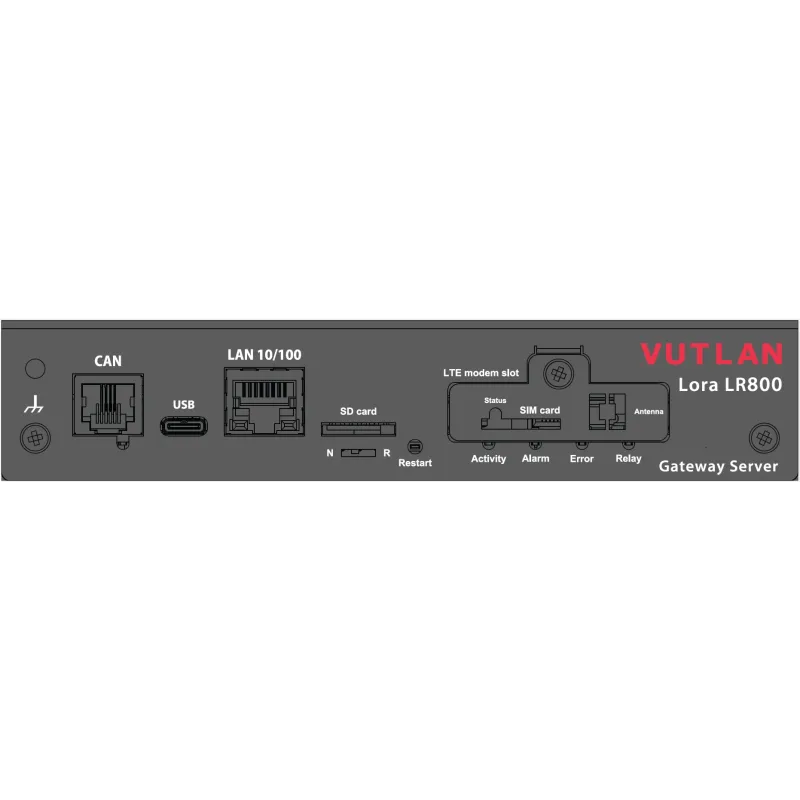

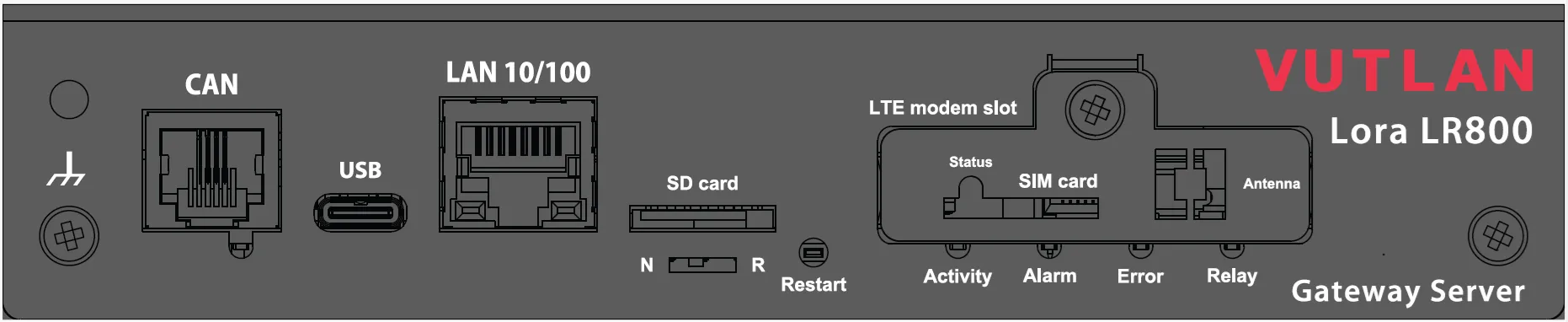

The Vutlan LR800 is a wireless LoRaWAN gateway with built-in web server designed for wireless security monitoring. It connects different Lorawan sensors, enabling use of the Vutlan mobile app.
Overview
The LR800 gateway unit serves as a bridge between LoRaWAN sensors and the gateway's built-in Lorawan server, enabling data collection from multiple wireless nodes in home, buildings, offices, or other facilities. It transmits sensor data to the Vutlan monitoring interface or save them on SD card.
The unit supports up to 8 LoRa channels, ensuring stable and high-performance communication in dense sensor networks. It includes an alarm relay, two dry contacts, and a built-in modem for flexible deployment and redundancy.
Technical Specifications
Lora channels:
8
Frequency:
868, 915 Mhz
Activation:
OTAA
Communication:
LoRaWAN, Ethernet, CAN
Network:
100 Mbit, IPv4, IPv6 by demand.
Data storage:
SD card, USB stick, IOT cloud
Power supply:
12V DC
Power consumption:
1W, 85 mA
Built-In devices:
Alarm relay, two dry contacts, CAN
Range:
Up to 5 km
Mounting:
Desktop, DIN rail
Dimensions:
145 × 90 × 45 mm
Processor:
Dual core ARM, 720 Mhz, 256 MB
Operating temperature:
-10° C to +80° C
Origin:
Made in EU
HS Code:
8517 69 90
Key Features
● Wide-Area Monitoring: Supports multiple wireless sensors for monitoring temperature, humidity, voltage, access, water leaks, smoke, vibration, and movement.
● Connectivity: 8 LoRa channels, CAN input, alarm relay, 2 dry contacts, Ethernet, 4G.
● Integration: Works seamlessly with Vutlan monitoring systems, SNMP tools, Zabbix.
● Scalability: Can monitor hundreds of LoRa sensors in smart homes or offices, as well as in fields and other agricultural facilities.
● Remote Alerts: Generates notifications when sensor readings exceed set thresholds.
● Easy Deployment: Plug-and-play setup with auto-discovery of compatible LoRa sensors.
About Vutlan
Vutlan is a European manufacturer of monitoring systems for data centers, home, offices, and agriculture. The company specializes in both wired and LoRaWAN-based solutions for power, environmental and access monitoring.
