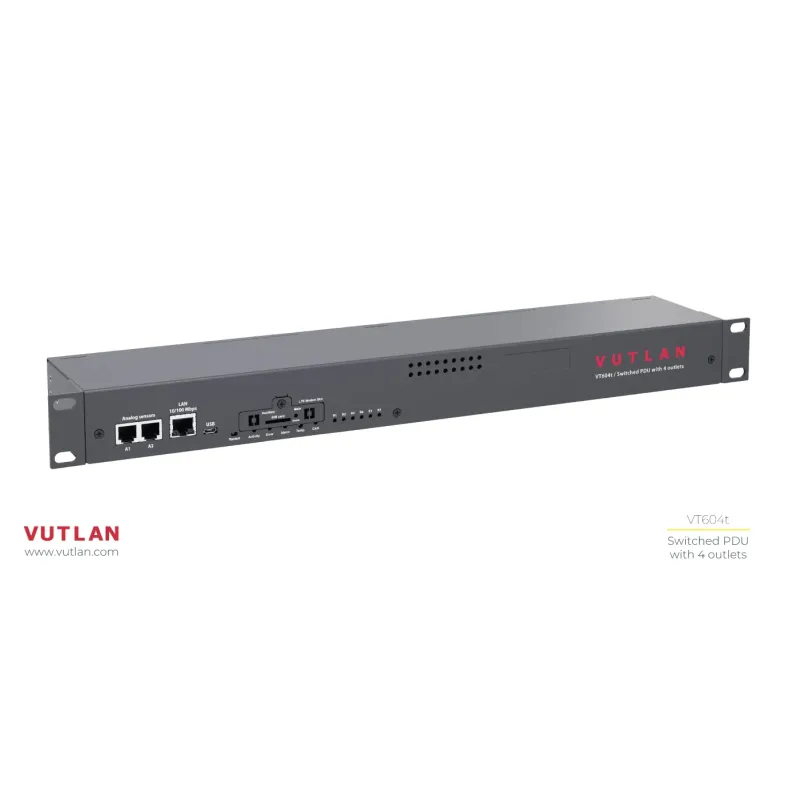

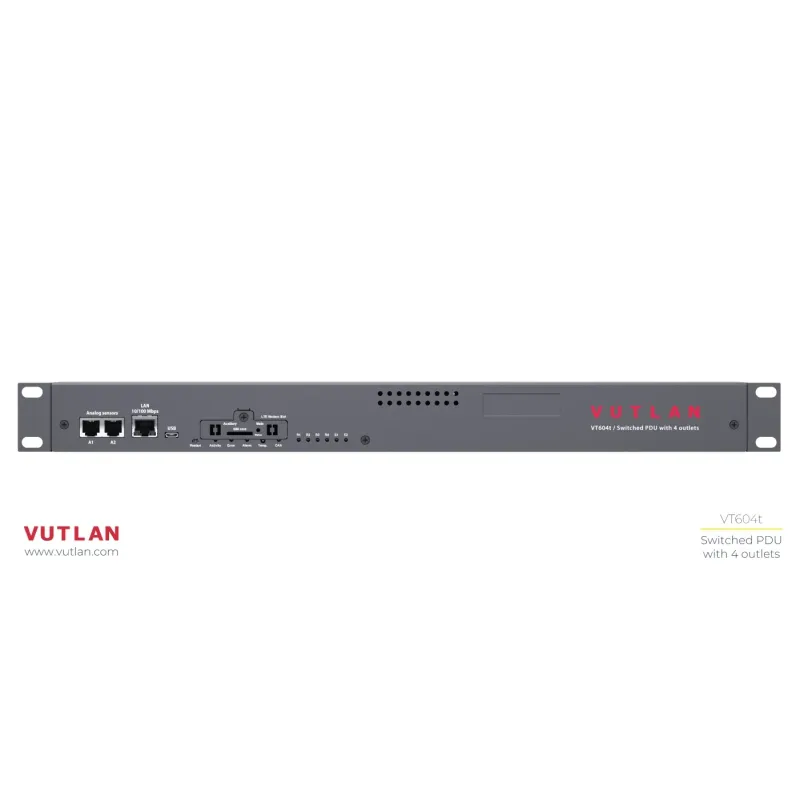

VT604G Switched PDU
Price:
€479.70
Tax included
Description

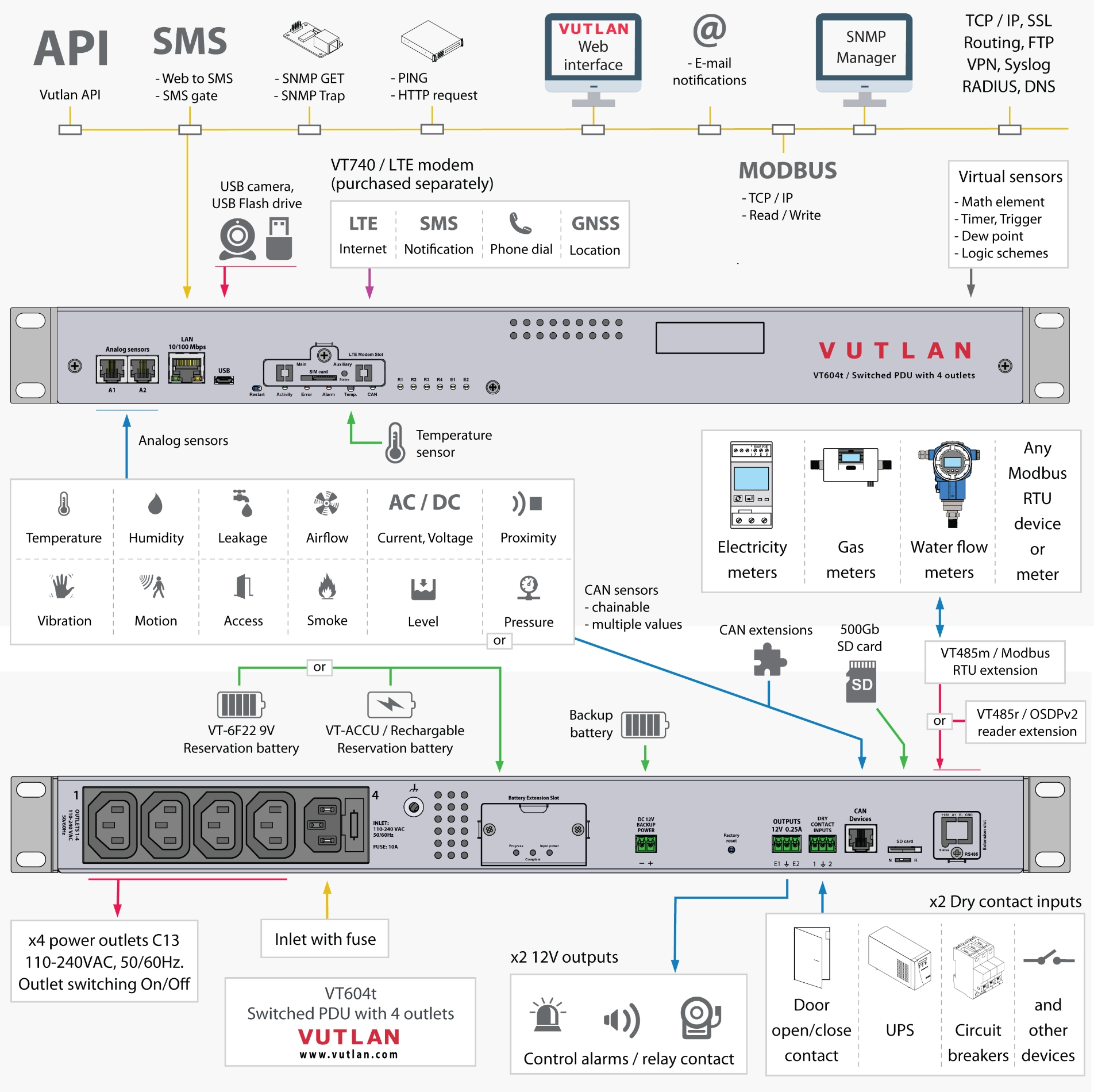

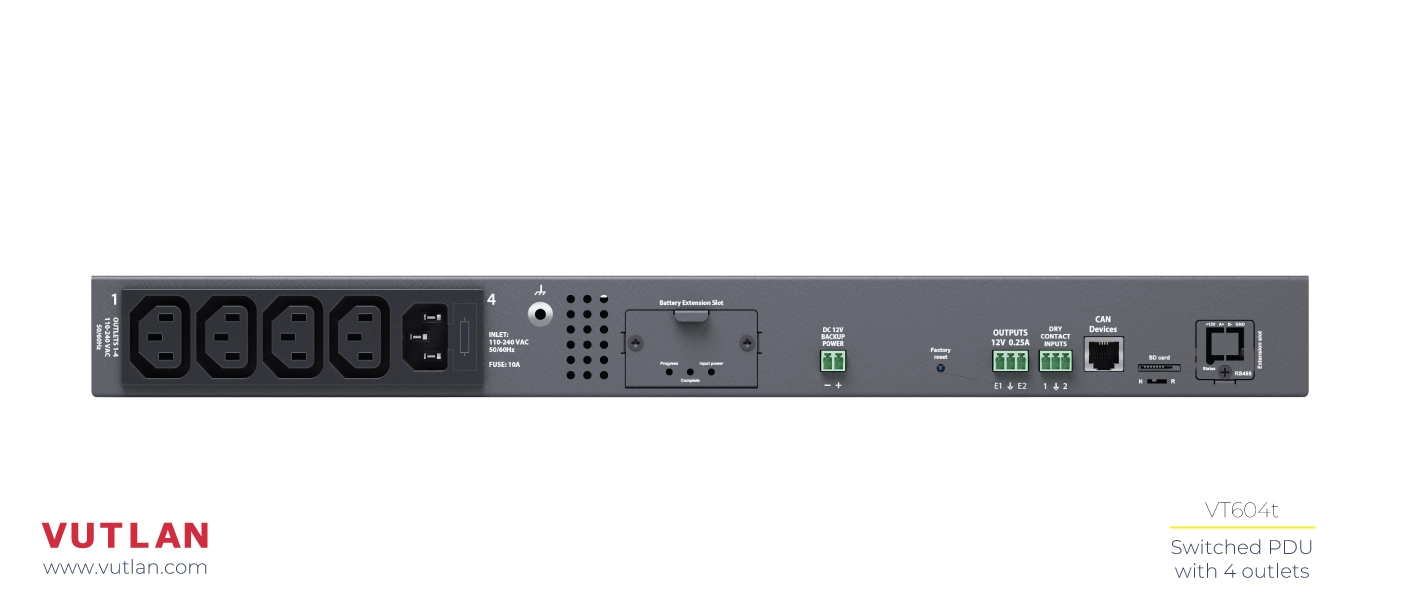

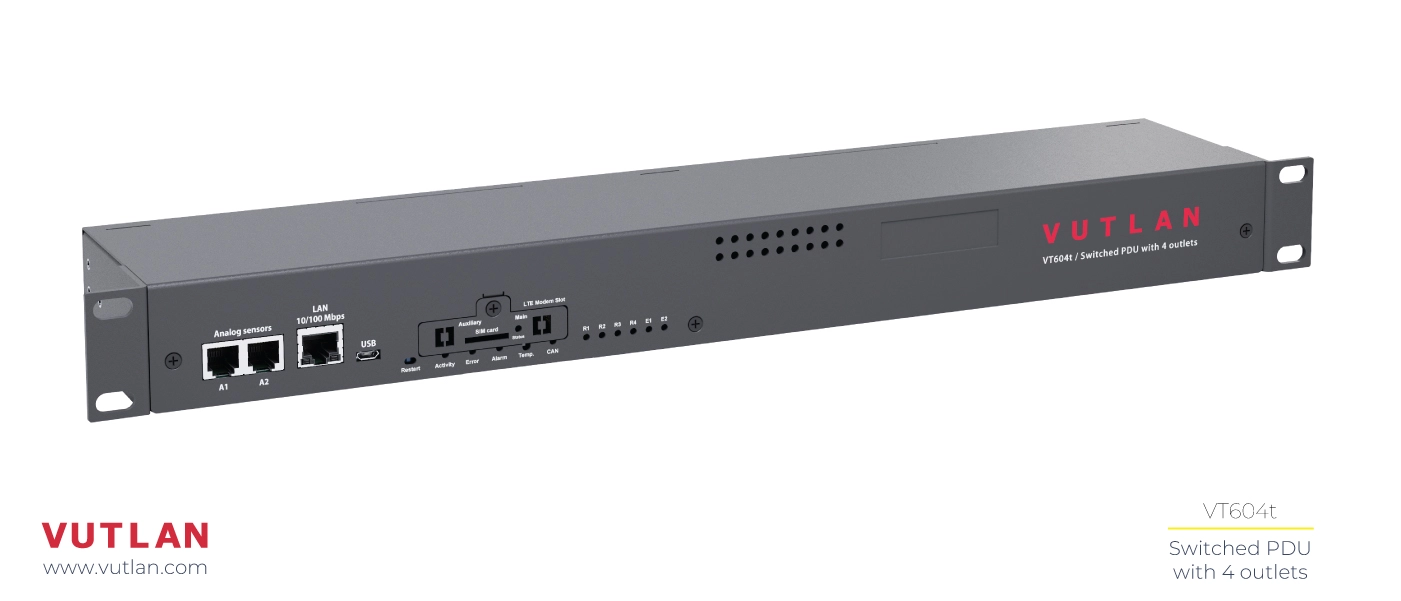

VT604G/ Switched PDU with 4 Outlets with Gigabit Ethernet can be used for manage up to four individual outlets, including:

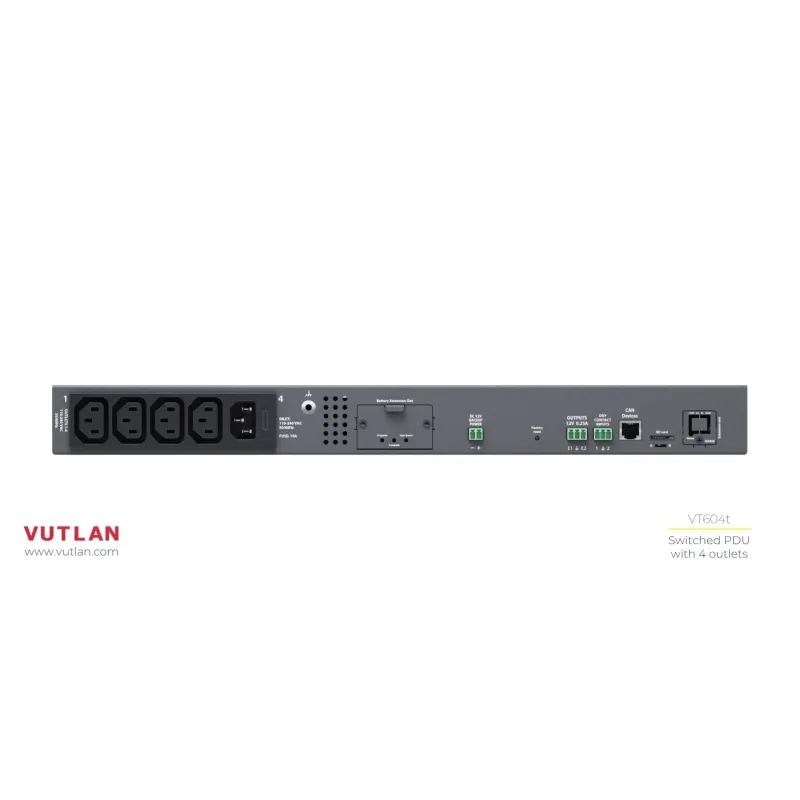

- PDU switch: 4 outlets with 10A, 230V bistable relays.
I/O Controller: analog sensors inputs, CAN, dry contacts, 4 relays, SD, USB, alarm relays, 4G.
Built-in Web Interface: 10/100/1000 Mbit/s, IPv4; IPv6 by demand.

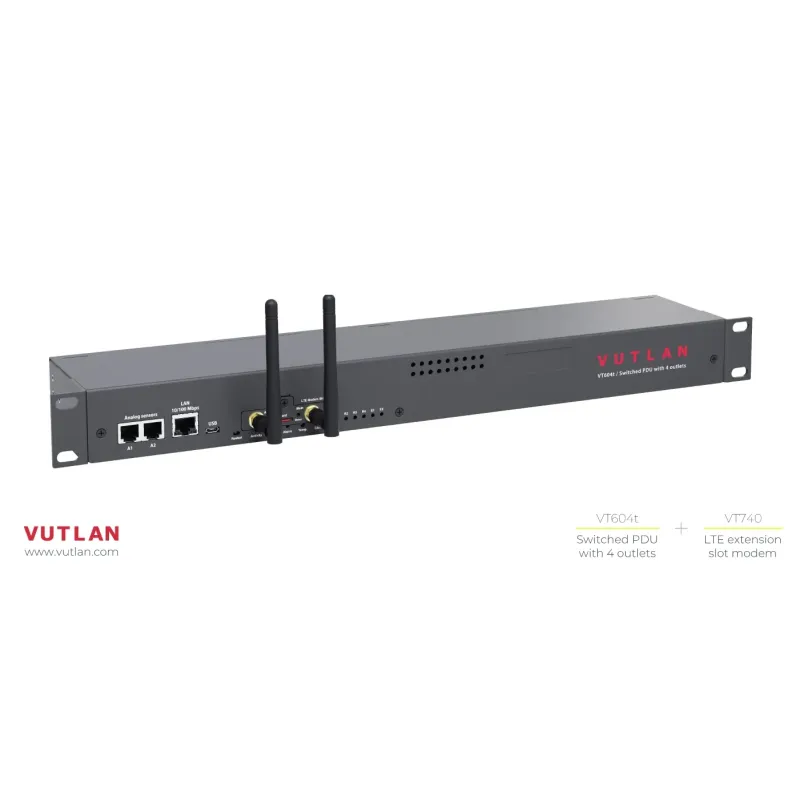

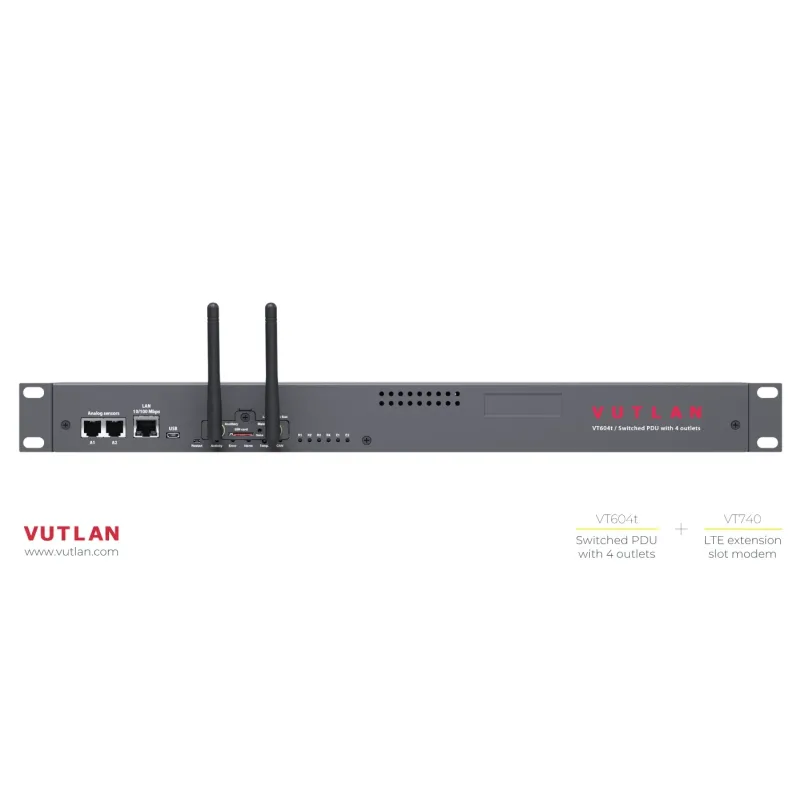

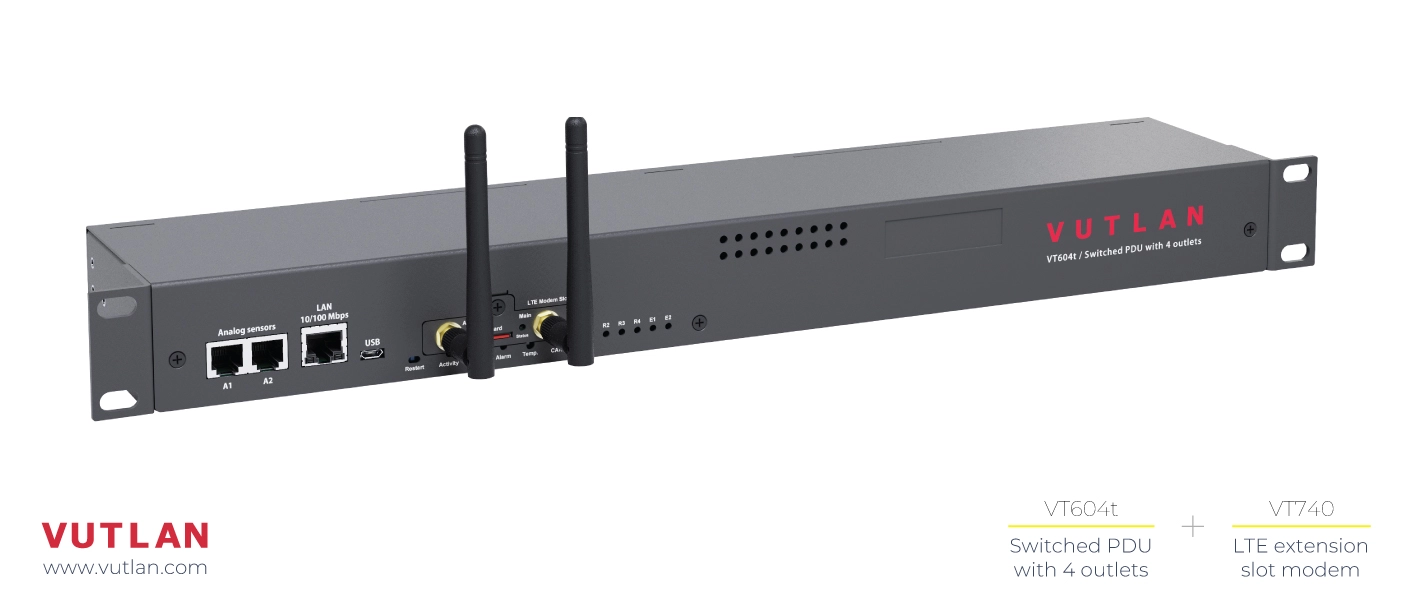

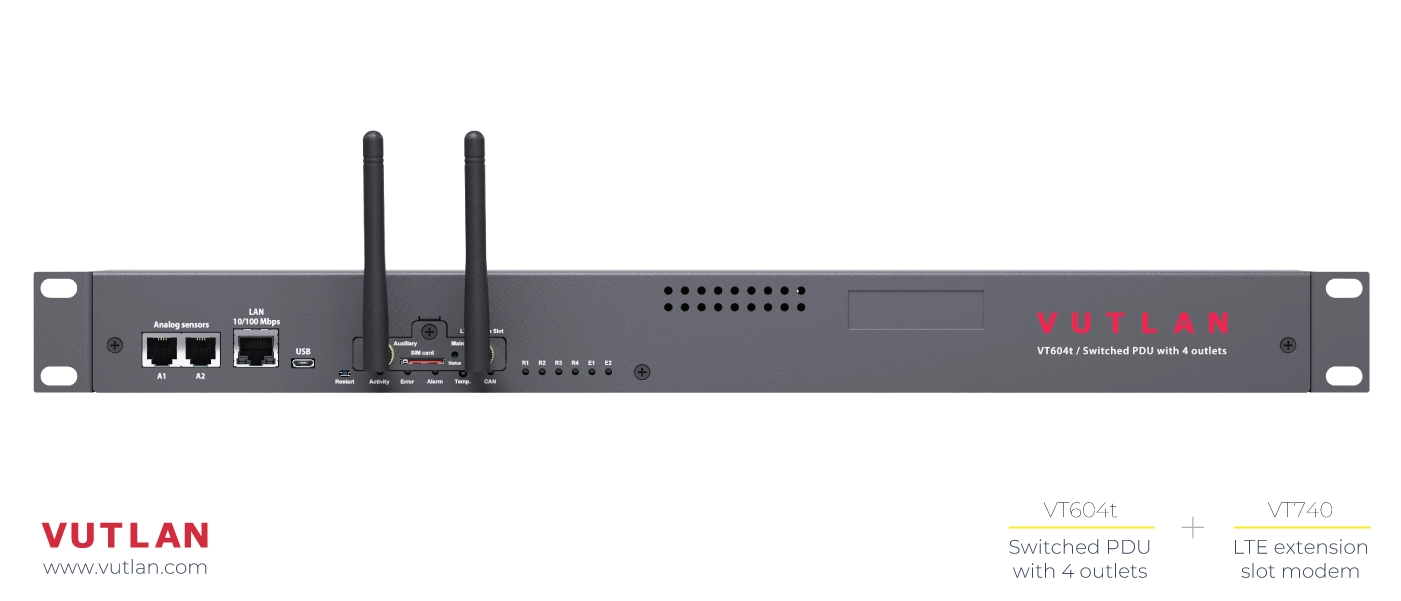

Extensions: 4G modem, Built-In UPS.
- Notifications: Telegram, mail; VPN, SMS and voice call in case of LTE modem built-IN.
- Processor: 720Mhz dual-core Cortex-A7.
Specification
Device type:
PDU
Switchable outputs:
4 bistable relays 10A 230V
Network Interface:
1000 Mbit/s
Analog ports:
2
CAN:
1
Relays with output 12V:
2
Dry contacts IN:
2
Mounting:
19"
Extensions:
SD, USB-C
Expansions:

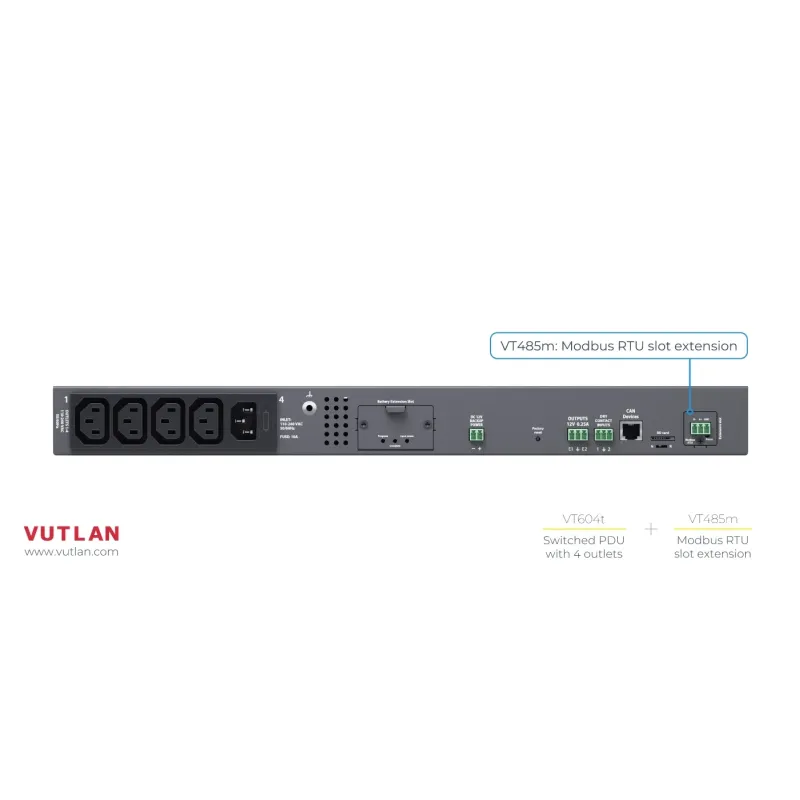

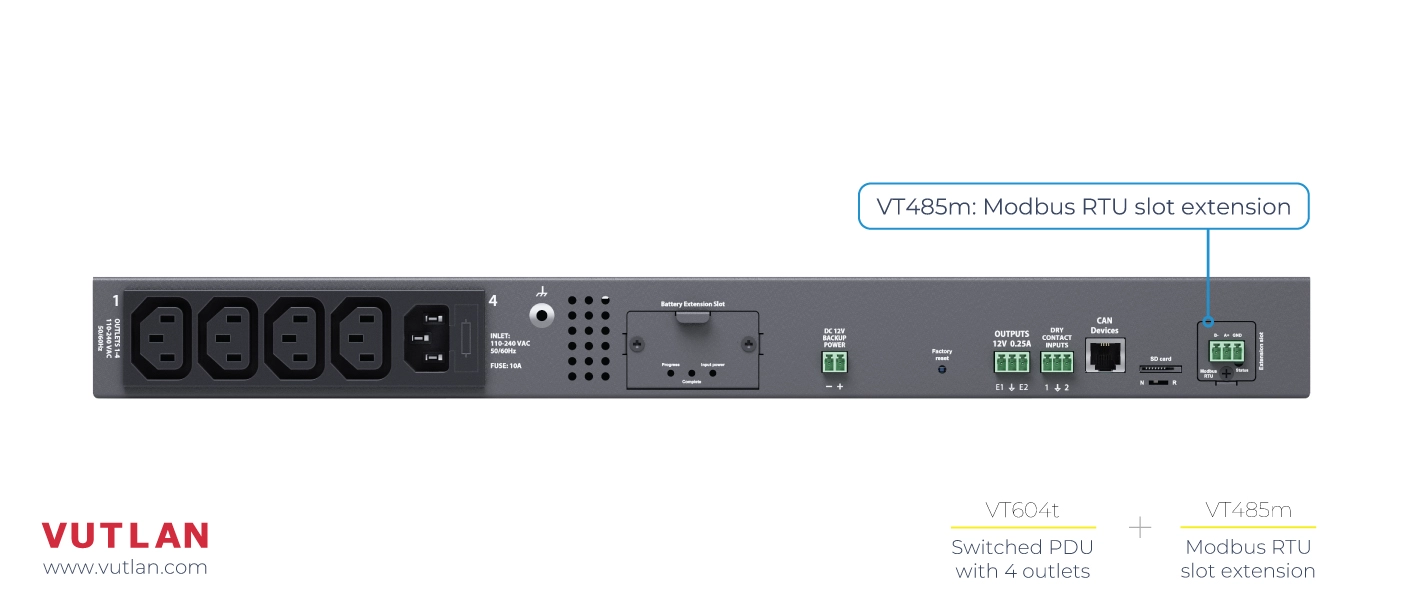

4G, RS485, built-In UPS
Status Indicators:
Red (Error), Green Led, Yellow, Orange (Relais)
Processor:
Dual core ARM, 720 Mhz, 128 MB
Power inputs:
10A, 230VDC
Operating temperature:
-10° C to +80° C
Origin of goods:
Made in EU
HS Code:
8537 10 910
Use cases
- Data Center Management: The world's only switchable PDU with gigabit Ethernet!
- Remote Ethernet: when 4G modem is installed, a built-in VPN provides easy remote access, allowing you to monitor and control equipment in remote locations.
Advanced technology
From sensing to connecting, from data to the power that transforms the world, what we do matters.
Built-in web interface
All Vutlan monitoring devices have a built-in multilingual web interface for monitoring and managing the device.
Here you can configure notifications and alerts, logic schemes, user access rights, sensors and elements.
You can also view sensor graphs, logs and camera images.
