Description

The VT405 Current converter transmits measured current data from the Hall meters to the Vutlan monitoring device.

This plug-and-play transceiver easily connects to any analog port of Vutlan monitoring units or VT408 analog port extension.

Use cases

Order Options / Models

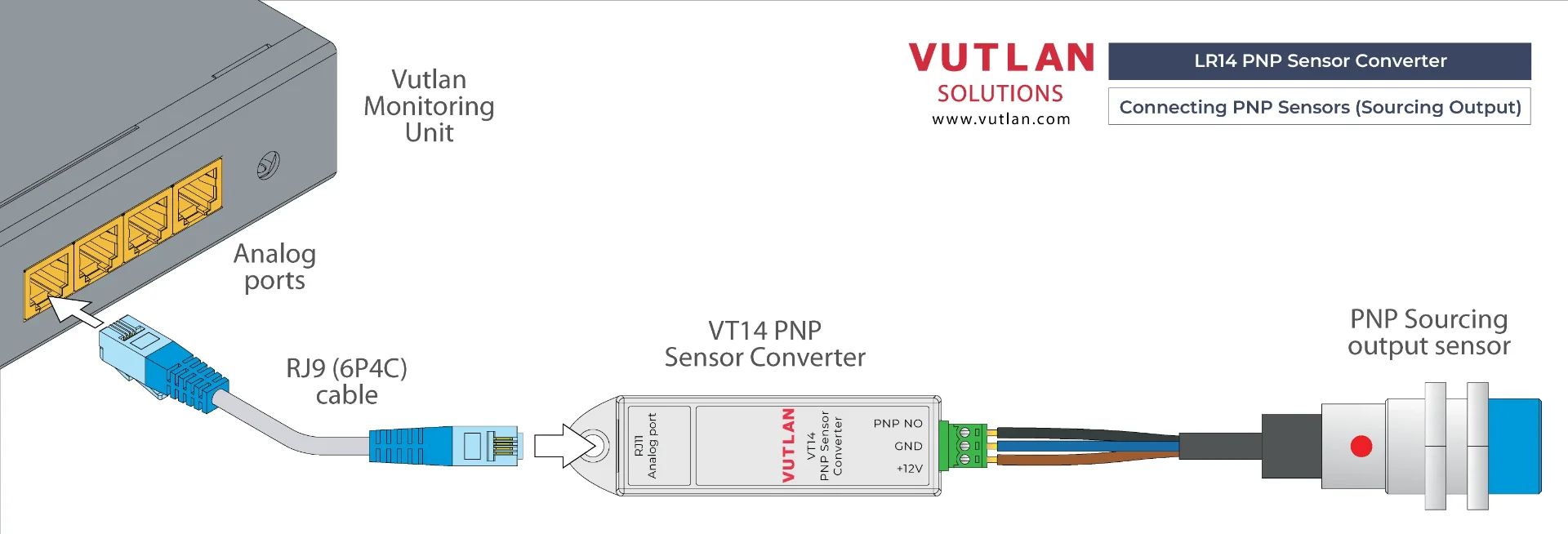

VT14 PNP:

For monitoring sourcing output sensors

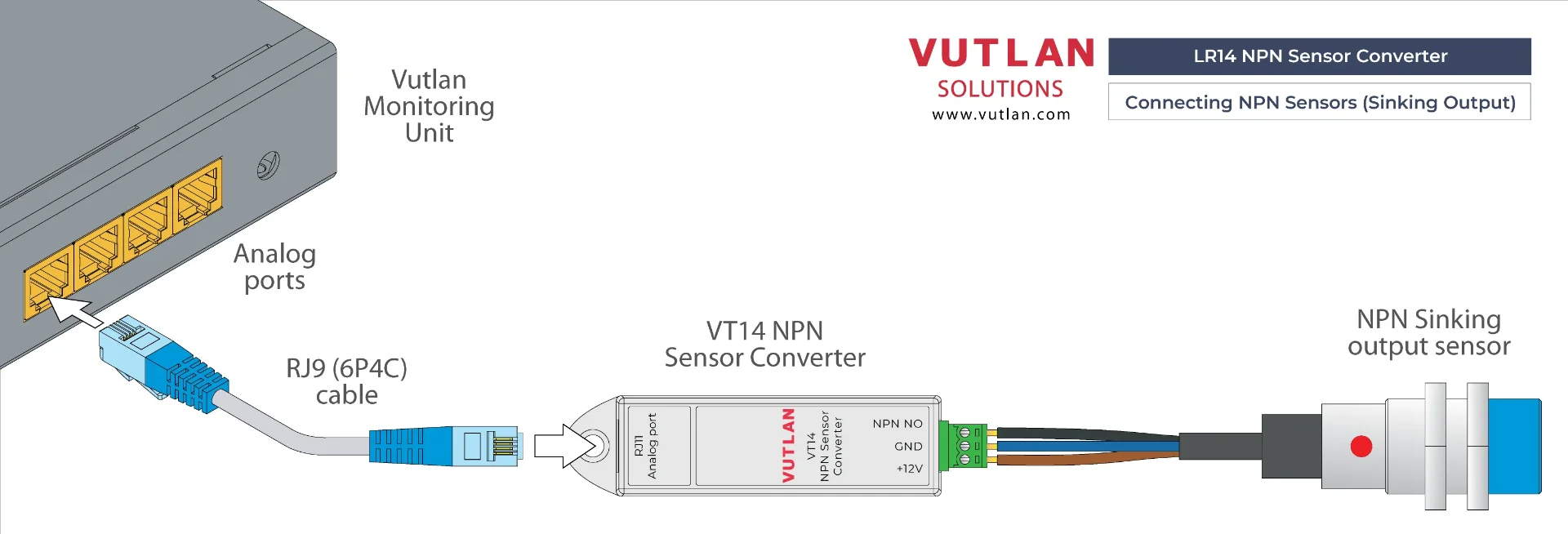

VT14 NPN:

For monitoring sinking output sensors

Add more analog sensors
using VT408 extension unit.

Each VT408 extension unit connected to the Vutlan monitoring device via the CAN bus adds the ability to connect 8 analog sensors to the system.

Sensors connected to the unit are automatically displayed in the system.

Technical Specification

Function & Purpose

Detects:

Current via Hall-effect transducer/meter.

Accuracy:

1 %

Communications

Input

3-pin power terminal, pitch 2.54 mm

Output:

RJ11 6p4c

Max. distance:

50 m from Vutlan monitoring unit or the VT408 extension unit

Environmental

Working temperature range:

−10 to +8 °С

Humidity operating range:

0 to 95% RH (Non-Condensing)

Power Requirement

Power consumption:

1 mW

Power:

Power using analog port from Vutlan monitoring unit or VT408 analog port extenion unit.

Max. distance from the monitoring unit:

225m

Mechanics

Mounting options:

Desktop, Wall mount

Dimensions:

80 × 19 × 20 mm (LxWxH)

Sensor weight:

20 g

General

Origin:

Made in EU

Manufactured by:

Vutlan s.r.o.

HS code:

9030 33 100

GTIN:

8588009886839

Warranty:

90 days
