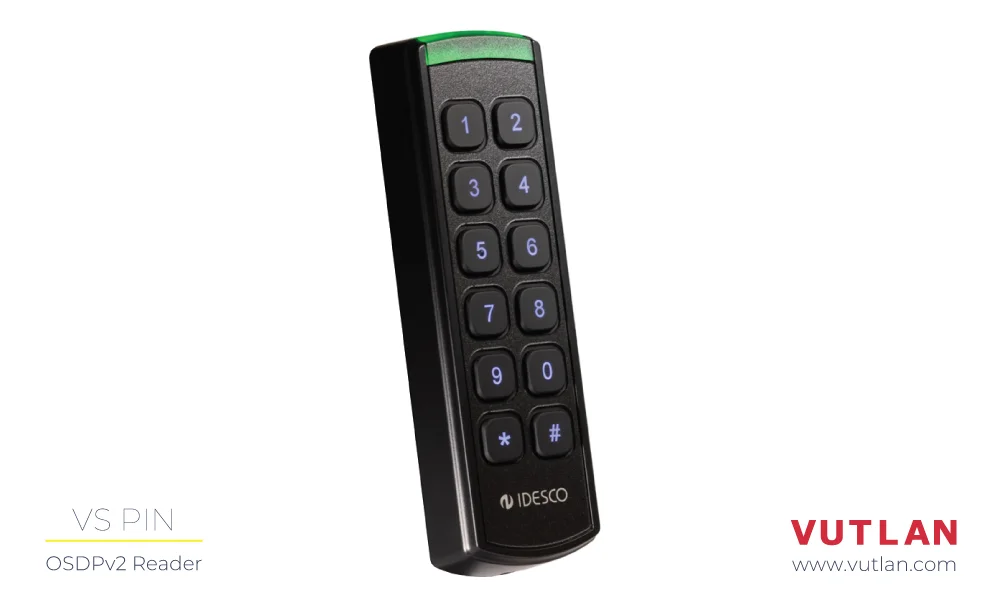

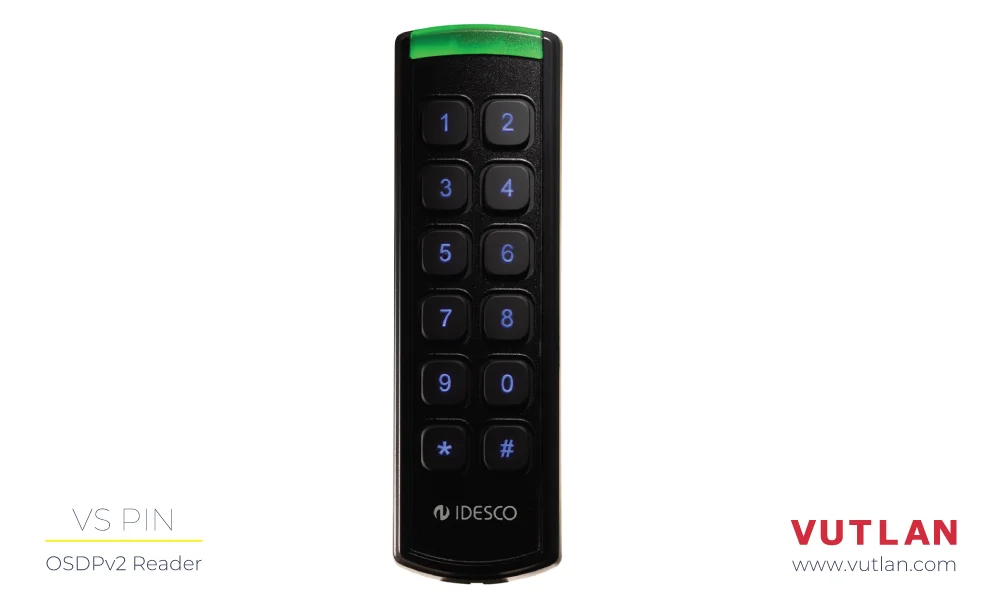

8CD VS PIN RFID reader with a keypad
€273 Tax included
Description
Secure access control reader with pin code identification. Highly configurable with mobile phone or configuration card. Highly configurable with mobile phone or configuration card.
The reader is used together with VT485r / OSDPv2 reader extension slot
Features:
Tolerates moisture and dust. High protection class; IP54 to IP67.
Vandal-proof: Impact resistance from IK-09 to IK-10
Reliable optical tamper reduces false tamper alarms
OSDPV2 version.
Low power consumption - smaller energy costs
Downloads
Required Components
VT485r Reader extension slot
It is an extension PCB board and should be purchased separately.
Allows to connect readers, and keypads with OSDP protocol support.
It can be used with VT335t, VT336t, VT825t, and VT855t monitoring systems. VT485r can be inserted inside the monitoring unit while the unit is in operation.
Use cases
- Access Control: The SE Mini Reader can be used as an access control.
- Integration with security systems: When connected to a security system, the reader allows you to keep a visitor log.
Technical Specification
Electrical specifications
Operating frequency:
13,56 MHz
Voltage:
+10 .... +30 VDC
Power consumption:
2,5 W in Idesco default configuration
Keypad type:
2 x 6 moving keypad with a dot on key 5 (VS Pin)
3 x 4 moving keypad with a dot on key 5 (VM Pin)
Supported card technologies
RFID chip support:
MIFARE® DESFire EV1 & EV2 & EV3; UID + Application files. MIFARE® Classic; UID + Sectors.
MIFARE® Ultralight; UID + Pages. MIFARE® Plus X, S, SE, Ev1, Ev2; UID security levels 1 and 3.
MIFARE® SmartMX (MIFARE® Classic emulation mode)
Additional Security feature for DESFire:
Support for DESFire EV1, EV2 & EV3 random UID, and proximity EV2 & EV3
UID selection:
Reader can be configured to read either 4 or 7 Byte UIDs, or both. For improved security UID reading
can be disabled
Mechanical specifications
Housing material:
Plastic
Installation method:
With screws. VM Pin can also be installed to a standard electrical socket with screws.
Cable:
LIYY
Cable length:
3 m
Connectors:
Available (cable as default)
Colour:
Black
Customized versions:
Yes, with sticker or customer specific programming
Protection class:
Units with cable; IP67.
Units with connector; IP54
IK-rating:
IK-09
Flammability class:
Horizontal specimen UL94 HB, vertical specimen UL94 V-2
Environmental specifications
Operational temperature range:
-30 C°- +55 C°
Storage temperature range
-30 C°- +55 C°
