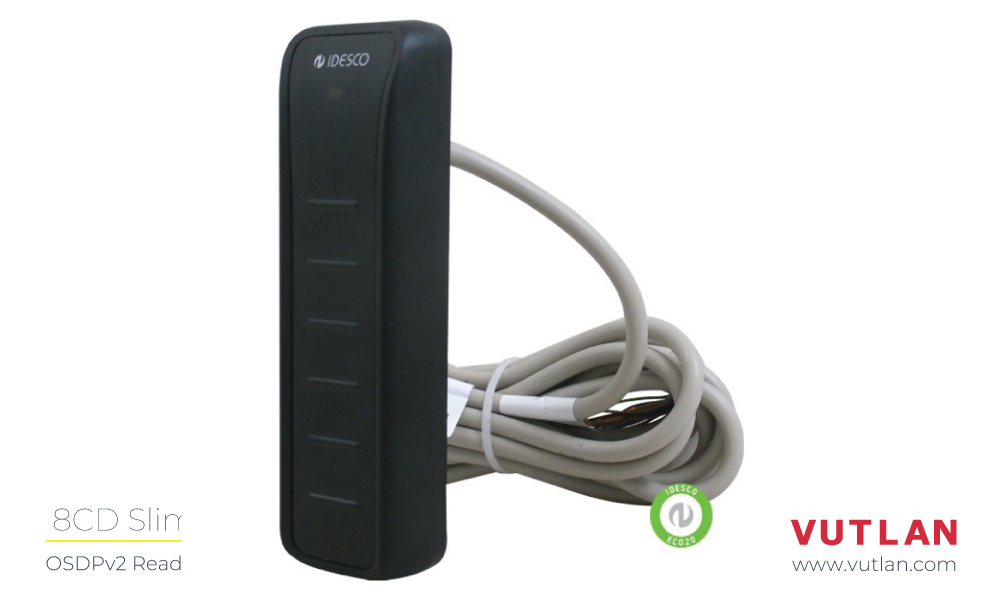

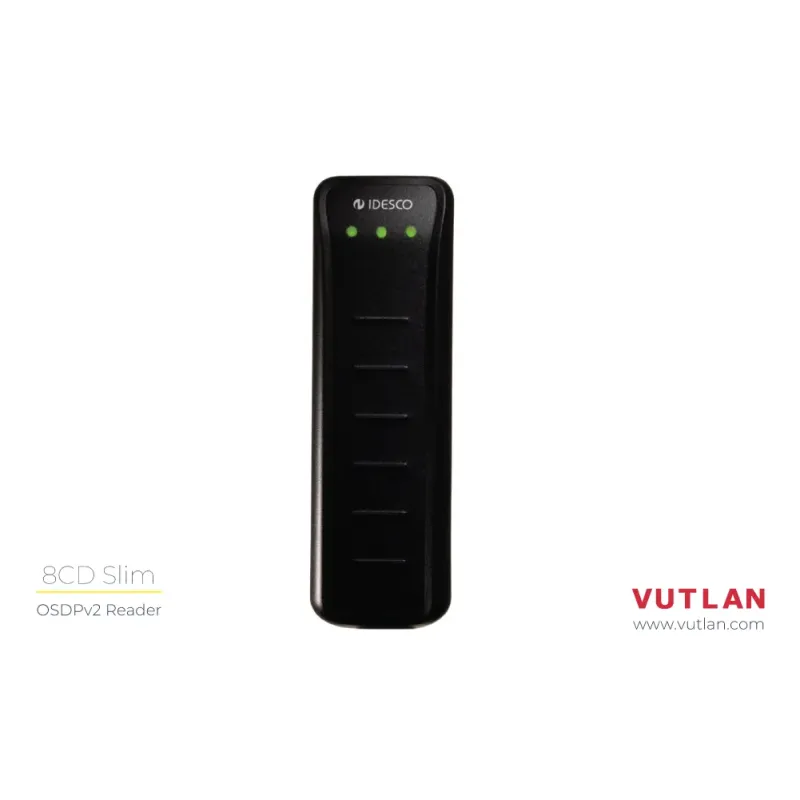

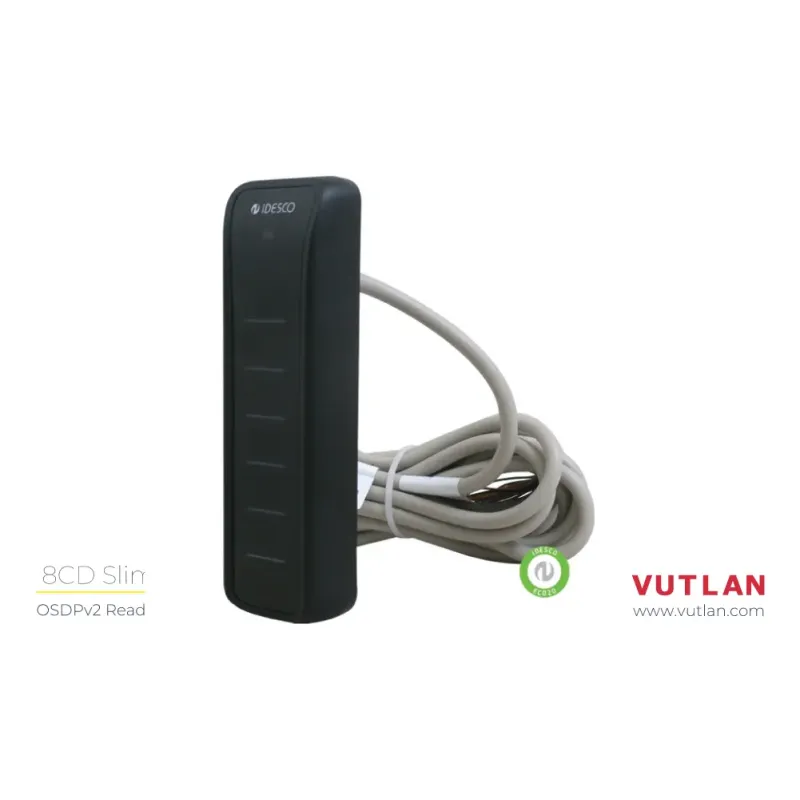

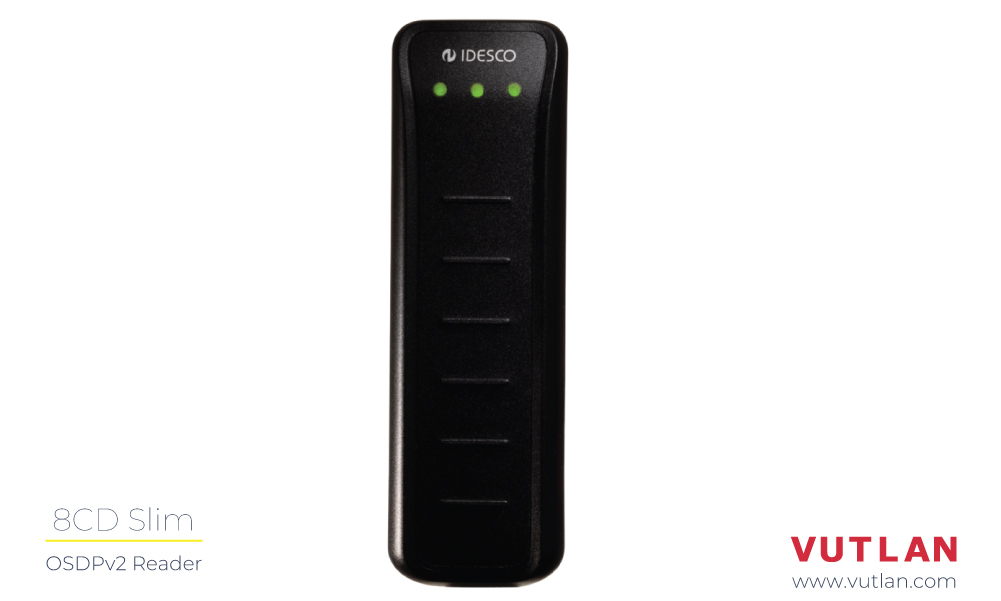

8CD Slim RFID reader

€273 Tax included

Description

Downloads

Components

Use cases

Specifications

Description

Highly secure, open technology MIFARE DESFire reader in a range of housings and keypads up to moisture, dust, and vandal proof, compatible with other manufacturers' DESFire devices.

The reader is used together with VT485r / OSDPv2 reader extension slot

Features:

Tolerates moisture and dust. High protection class; IP54 to IP67.
Vandal-proof: Impact resistance from IK-09 to IK-10
Reliable optical tamper reduces false tamper alarms
OSDPV2 version.
Low power consumption - smaller energy costs

Downloads

Required Components

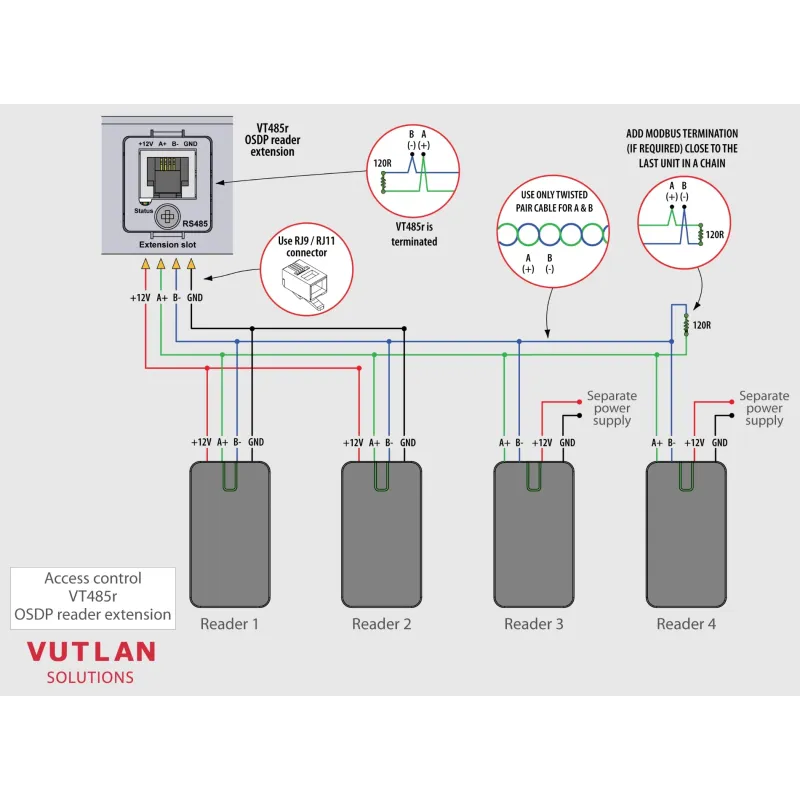

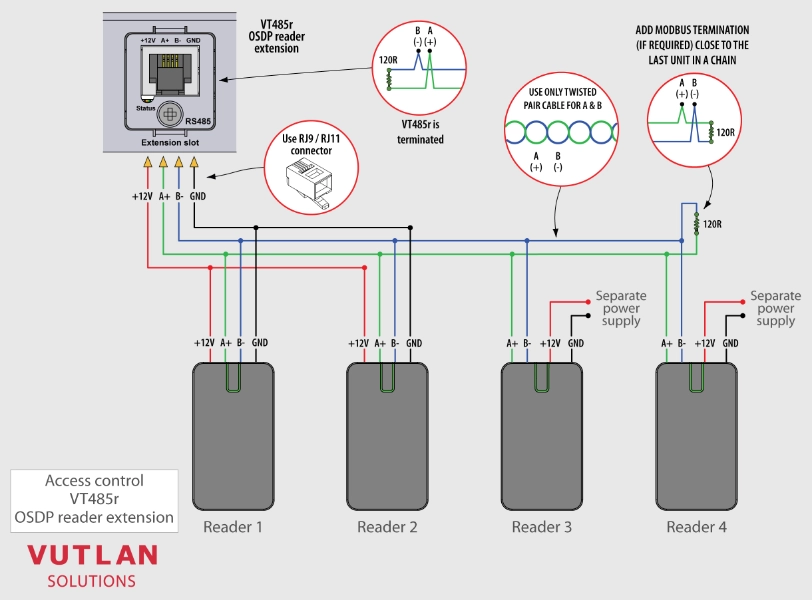

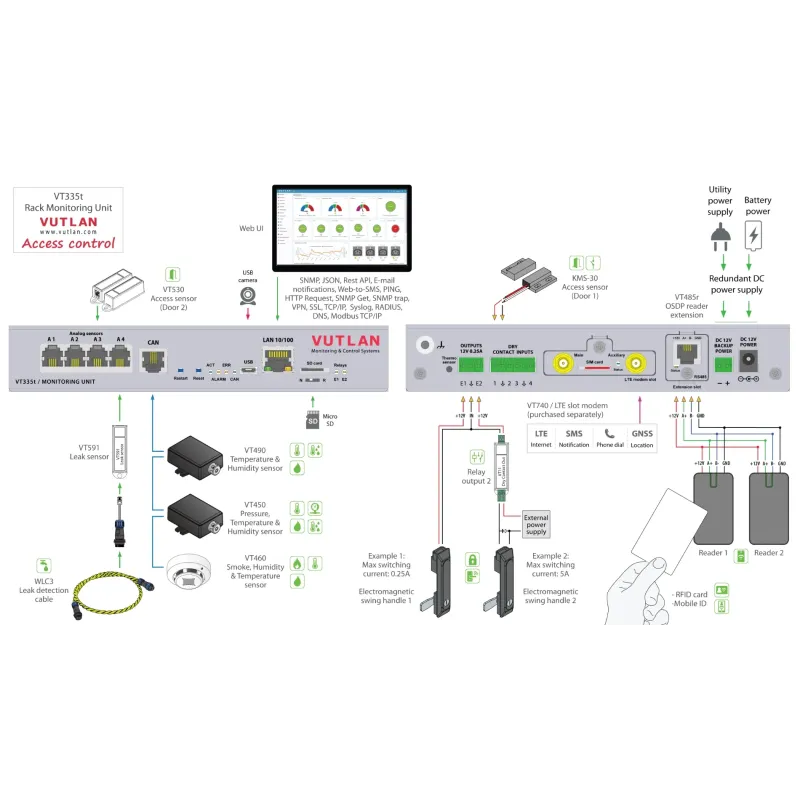

VT485r Reader extension slot

It is an extension PCB board and should be purchased separately.

Allows to connect readers, and keypads with OSDP protocol support.

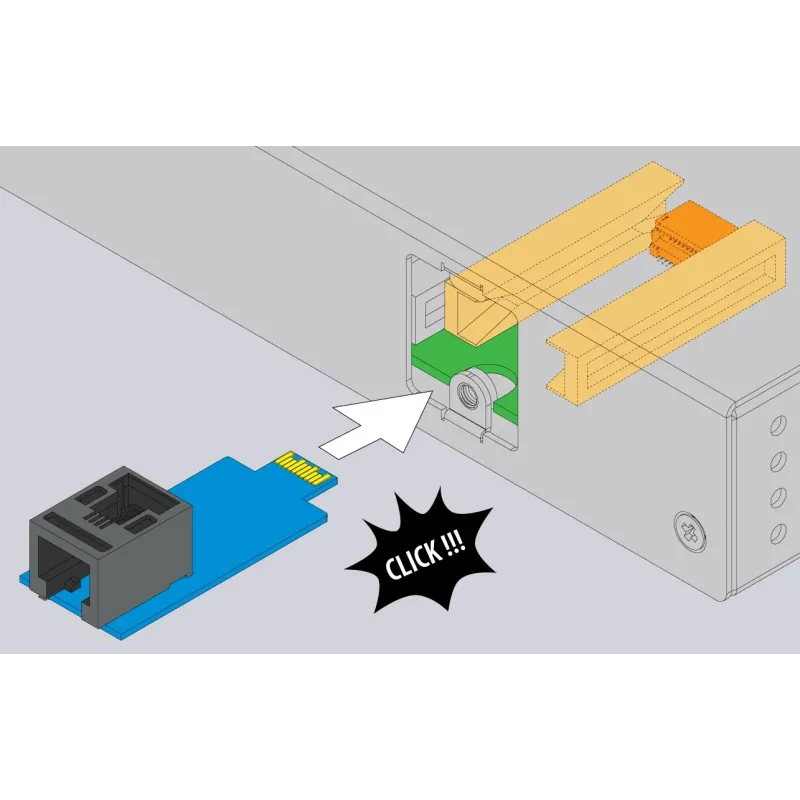

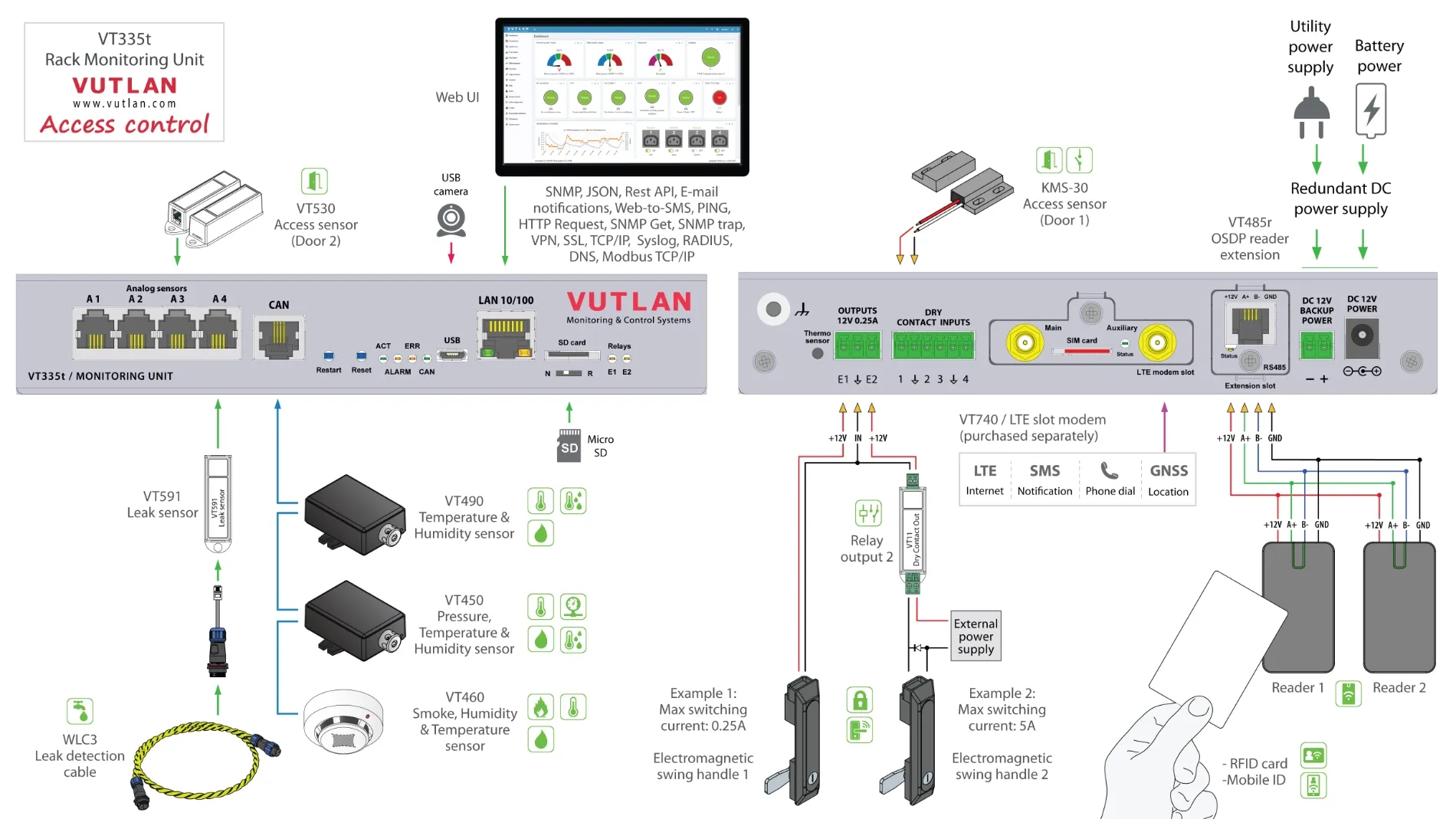

It can be used with VT335t, VT336t, VT825t, and VT855t monitoring systems. VT485r can be inserted inside the monitoring unit while the unit is in operation.

Use cases

Specifications

Used for:

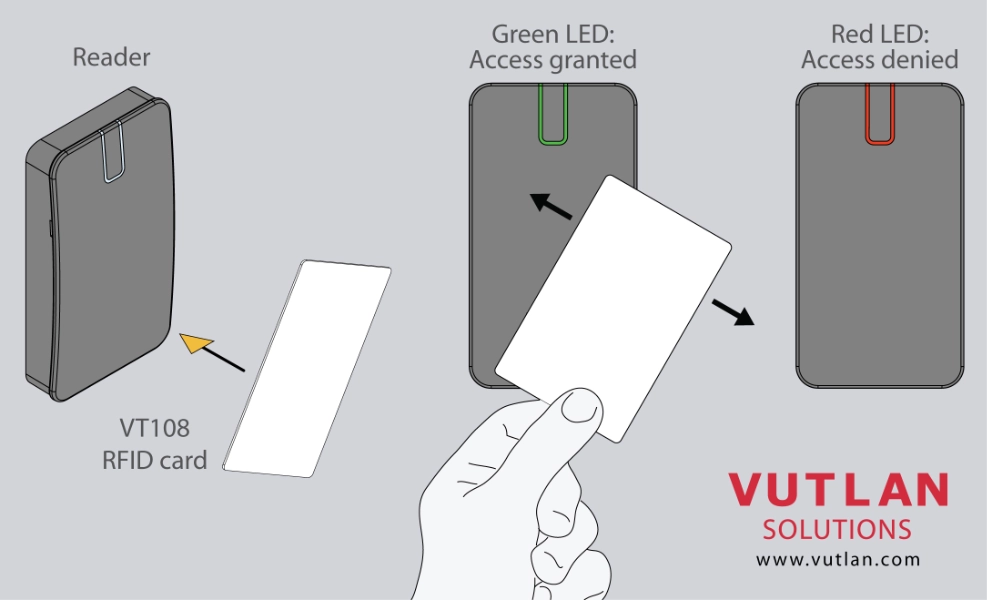

Provides access control of doors. Possible to use different keys, RFID cards and mobile keys.

Housing:

Plastic, self-extinguishing - UL94 flammability tests (classification HB, V-2)

Color:

Black

Mechanical protection of mounting screws:

Sticker

Protection level:

IP67 , with cable and wires

Mechanical resistance:

IK9

Operating temperature range:

-40 °C to +55 °C

Inputs/outputs:

2 FET outputs (tamper control and general purpose), max 500 mA, 1 general purpose input

EMC:

In accordance with CE requirements

Field strength:

According to EN300330

Mounting possibilities:

Wall mount, surface-mounted

Recommended distance from another reader:

Minimum 10 cm

Interference on metal:

Suitable for metal without interference

Cable:

LIYY 3m

LED:

Tri-color

Piezo:

Yes

Optical tamper:

Yes

Warranty:

2 years after the purchase date

Dimensions:

Height 141 x Wdth 43 x Depth 20 mm
