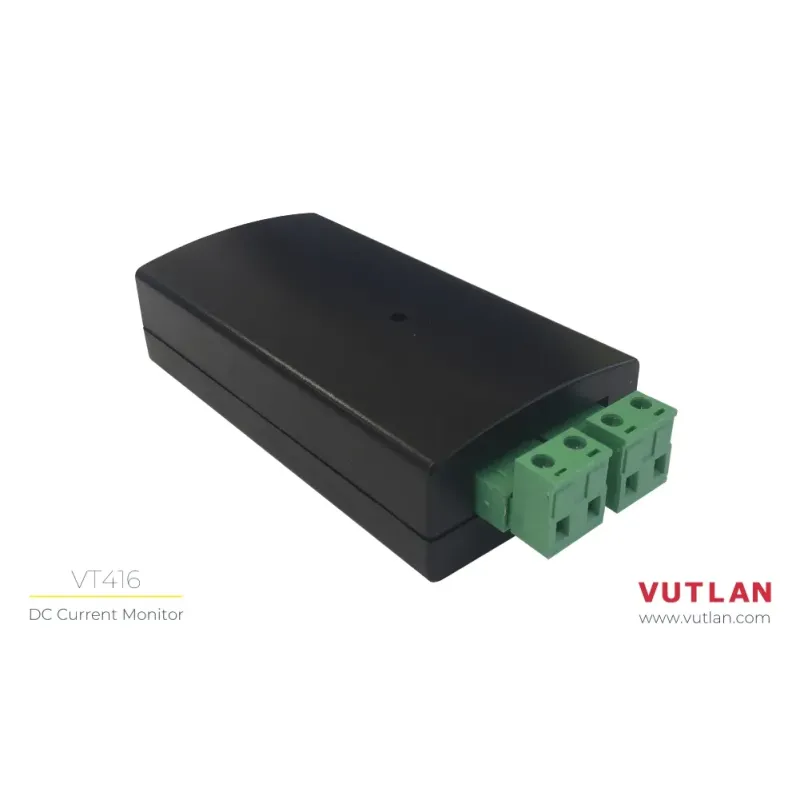

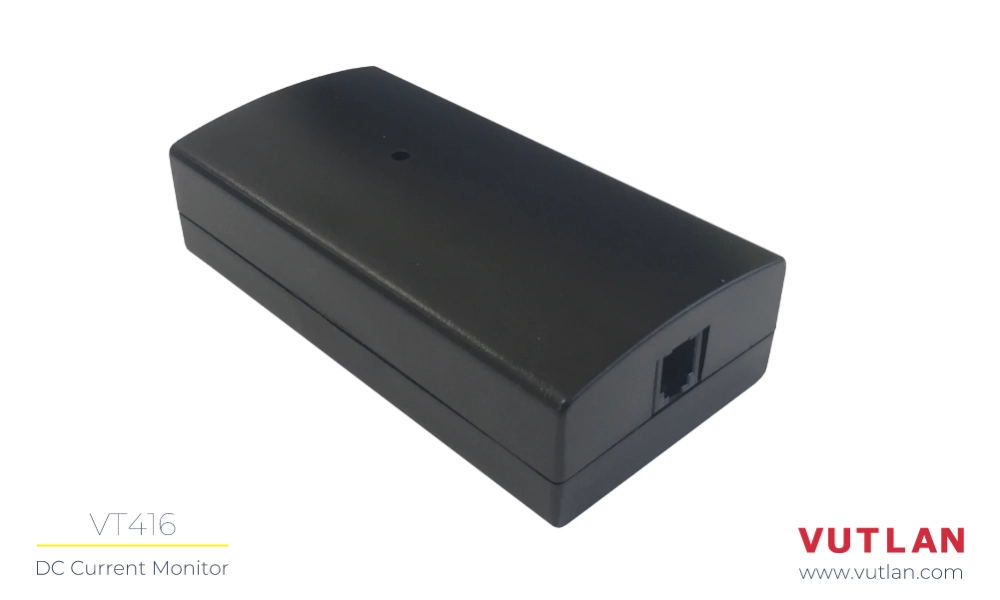

VT416 DC ampermeter

€88.50 Tax included

Description
Downloads
Use cases
Specifications
Features
Used with

Description

Simple Bidirectional DC current monitor VT416 can measure DC currents in the range of ± 6A.

Key Highlights:

  • Measures DC current in both directions (± 6 A typical, ± 8 A maximum) for versatile monitoring of power systems.
  • High accuracy: approx. 1 % measurement error ensures reliable readings.
  • Outputs a 0–5 V signal corresponding to current flow, making it easily integrable into existing monitoring systems.
  • Galvanic isolation up to 2.5 kV protects your sensor and system—even in demanding environments.

Downloads

VT416 Bidirectional DC Ammeter - Flyer
VT416 Online datasheet

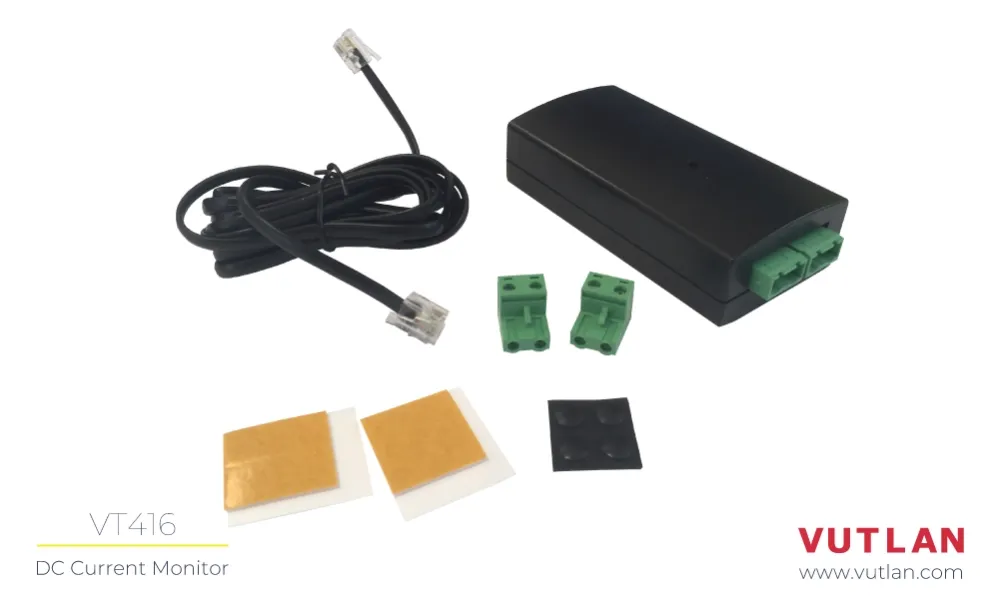

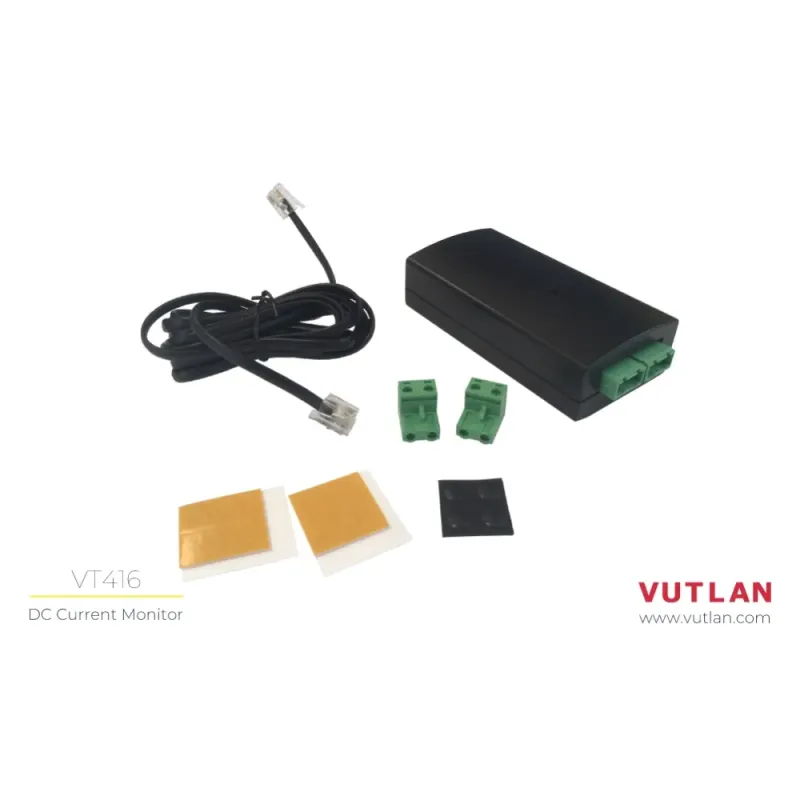

VT416 package content
CE EMC LVD ROHS certificate - LV units

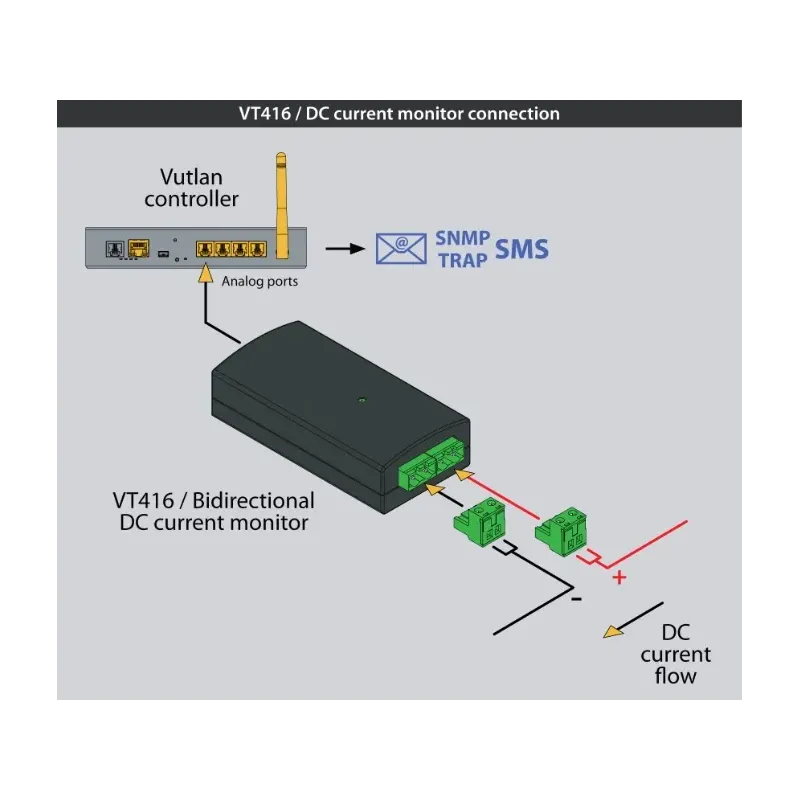

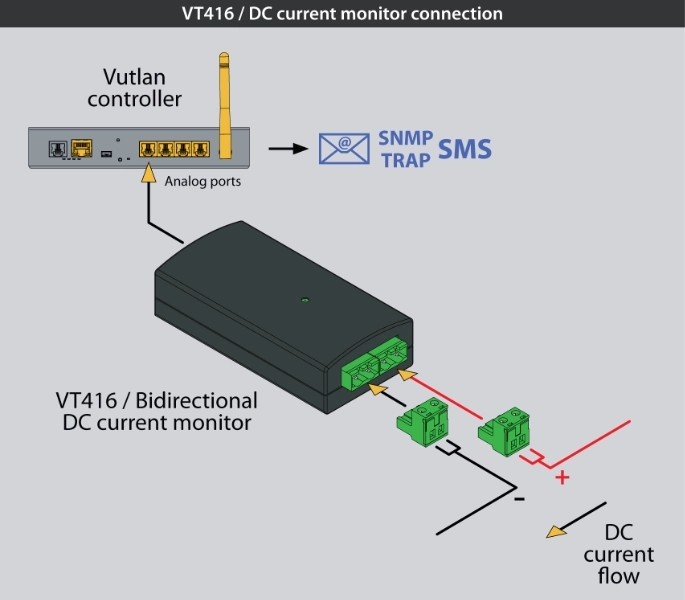

How to connect analog sensors
How to configure analog sensors
API: analog sensors

Use cases

VT500 helps maintain environmental conditions for equipment and inventory across various industries.

  • Telecom & Data Centers: Monitoring DC current in rectifier racks, battery banks, and DC distribution lines. Detecting overloads or faults in backup power systems.
  • Renewable Energy Systems: Solar installations: monitoring current from PV panels to charge controllers or batteries. Wind or hybrid micro grids: ensuring proper current flow and early detection of anomalies.
  • Renewable Energy Systems: Solar installations: monitoring current from PV panels to charge controllers or batteries. Wind or hybrid micro grids: ensuring proper current flow and early detection of anomalies.
  • Industrial Automation: Measuring DC current in PLCs, motors, and production lines. Tracking energy consumption of DC-powered machinery.
  • Battery Storage & UPS Systems: Monitoring charging/discharging current in lead-acid, Li-ion, or VRLA battery banks. Ensuring correct balancing and identifying failing cells or strings.

Specifications

Type of sensor:
Bidirectional DC Ammeter, Analog sensor
Measured range:
±6 A, Custom order possible.
Accuracy:
1%
Operating temperature:
Min. -10° C - Max.80° C
Operating humidity:
Min. 5% - Max. 95% (Non-Condensing)
Power Consumption:
100 mW
Maximum distance:
50-meter cable
Isolation:
2,5 kV
Output:
0-5 V, RJ-9
Dimensions:
Size 102 × 52 x 26 mm
Power terminals:
x2 Power terminals 2P, 7.5mm, 2EDGK-7.5
Power supply:
12V DC (supplied from Analog port using RJ9 cable)
Mounting:
Desktop, Wall mount
Manufactured in:
Manufactured in the E.U.
HS Code:
9030 33 100
EAN code:
8588009886730

Sensor features

Vutlan sensors are designed to deliver reliable, real-time environmental monitoring with flexible configuration and clear data visualization. Each sensor integrates seamlessly into your system, providing precise measurements and actionable insights.

- Logic schemes
- Create automated actions based on defined conditions
- Dashboard overview
- Thresholds
- Graphs and Logging

Web UI customizable dashboard
Sensor data logging
High temperature notification alarm
Sensor graph

Monitoring units with analog ports

The following Vutlan monitoring units can have analog pots for analog sensors.
