VT520DIN AC Voltage Monitor

€68.88 Tax included

Description
Use cases
Specifications
Features

Description

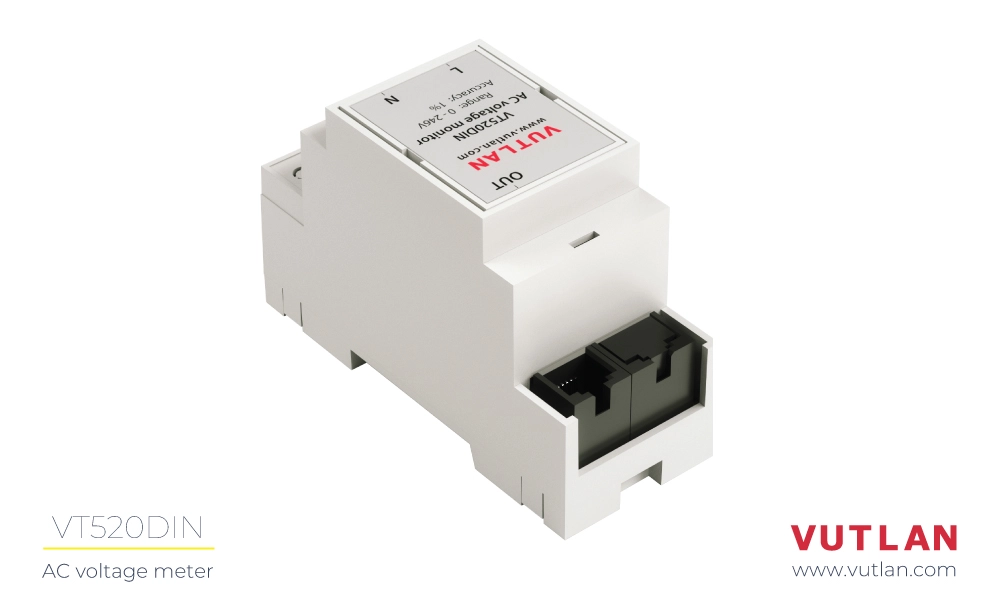

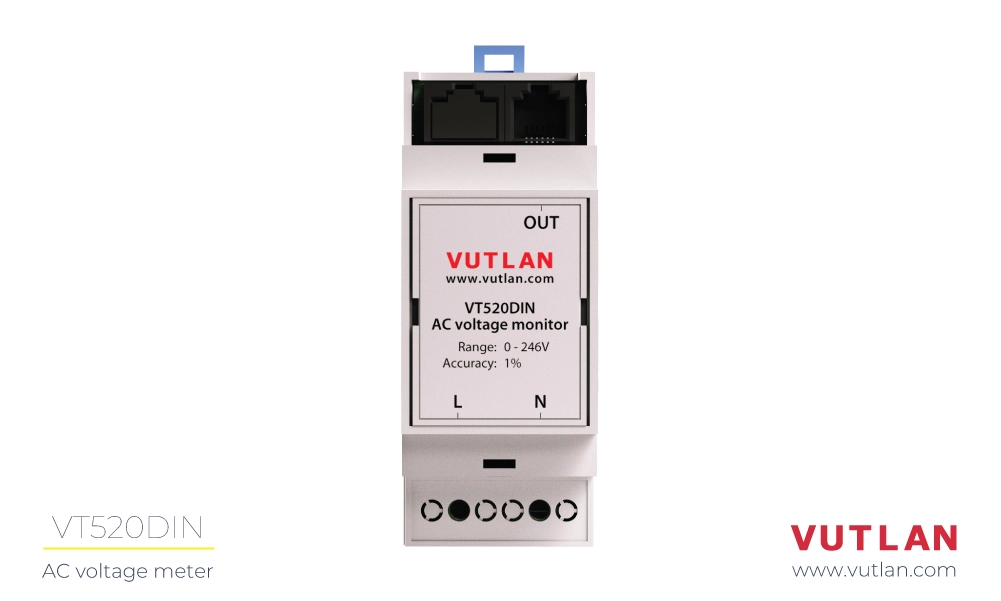

The VT520D Voltage monitor is designed for monitoring of AC voltage, with an accuracy of 1%. This plug-and-play sensor can be easily connected to any analog port of Vutlan monitoring units.

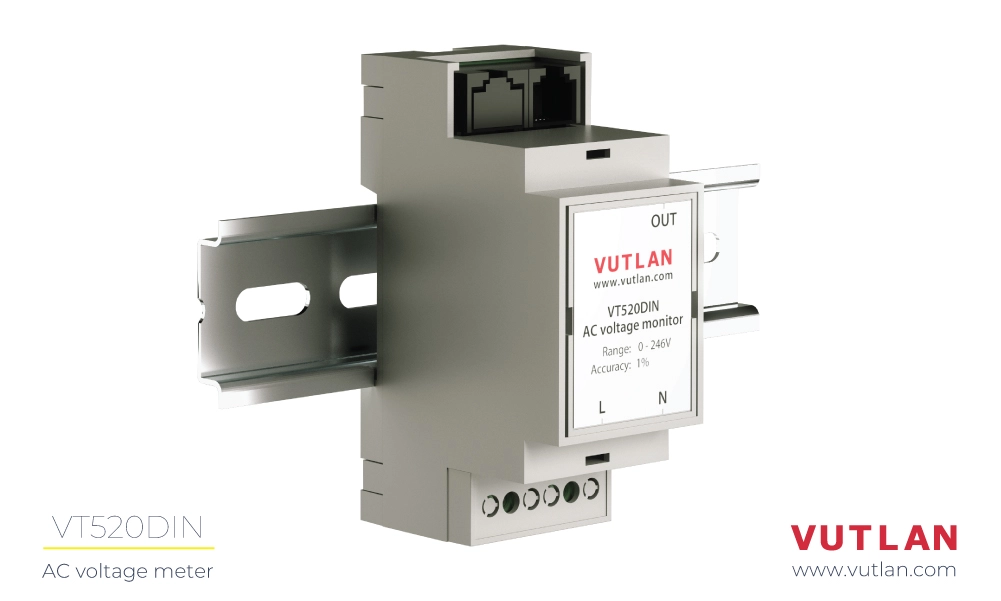

The sensor measures AC voltage in the range of 0-246V and can be mounted on a DIN rail.

The maximum amount of sensors can be extended using the VT408 / Sensor extension unit.

VT520DIN - Flyer
VT520DIN online datasheet
VT520DIN package content
EMC test report
CE EMC LVD ROHS certificate - AC DC Meters
CE EMC LVD ROHS certificate - LV units
How to connect analog sensors
How to configure analog sensors
API: analog sensors

Use cases

  • Data Center Monitoring: The VT520D can be used in data centers to continuously monitor the AC voltage level in the rack.
  • Industrial Equipment Monitoring: In industrial environments, the VT520D can monitor the voltage supplied to equipment.

Specifications

Type of sensor:
Analog sensor
Measures:
AC voltage
Measured voltage:
0-246V, AC
Accuracy:
1%.
Protection:
IP20H / IP40H
Dimensions:
DIN 2M, Height 90.2mm, Width 36.3mm, Depth 57.5mm
Cable length:
6P4C RJ11 Telephone cable included, 2m.
Power consumption:
100 mW
Operating temperature:
Optimal temperature range: -10° C to +80° C
Operating humidity:
5 to 95 % (Non-Condensing)
Inputs:
Strip length 6-7mm, Wire cross 2.5mm ² 22~12AWG
Outputs:
Autosense port, RJ-11 (6P4C), Output 0-5V
Mounting possibilities:
DIN rail height 35 mm, DIN rail depth 7mm and 15mm
Max. distance from the unit:
100 m
Origin of goods:
Made in EU
HS Code:
9030 33 100
EAN:
8588009886150

Sensor features

Vutlan sensors are designed to deliver reliable, real-time environmental monitoring with flexible configuration and clear data visualization. Each sensor integrates seamlessly into your system, providing precise measurements and actionable insights.

- Logic schemes
- Create automated actions based on defined conditions
- Dashboard overview
- Thresholds
- Graphs and Logging

Web UI customizable dashboard
Sensor data logging
High temperature notification alarm
Sensor graph

Add more analog sensors
using VT408 extension unit.

Each VT408 extension unit connected to the Vutlan monitoring device via the CAN bus adds the ability to connect 8 analog sensors to the system.

Sensors connected to the unit are automatically displayed in the system.

VT408 product page
VT408 online datasheet
How to connect analog sensors
Analog sensors API

Monitoring units with analog ports

The following Vutlan monitoring units can have analog pots for analog sensors.
