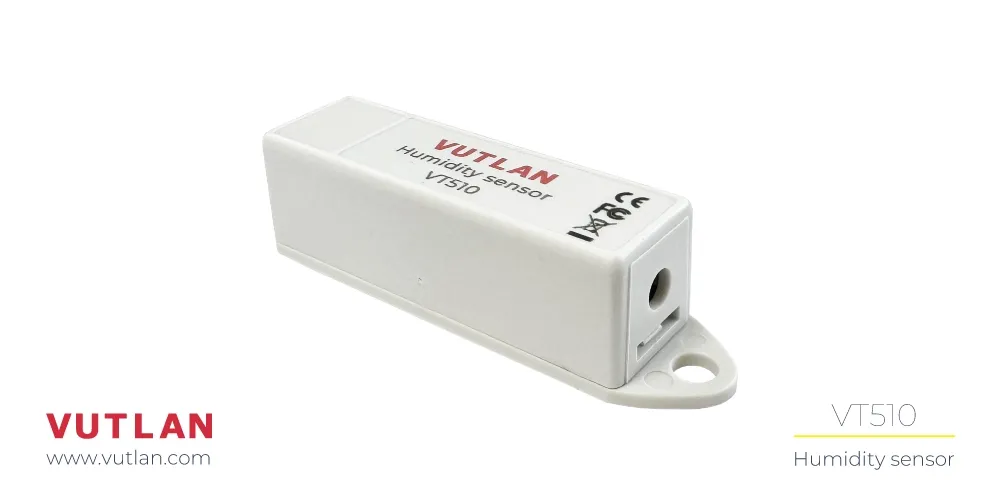

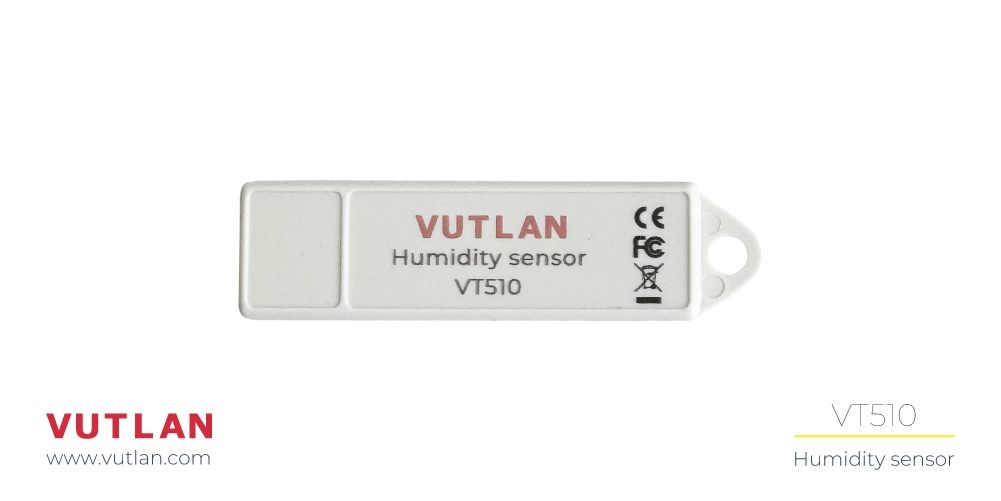

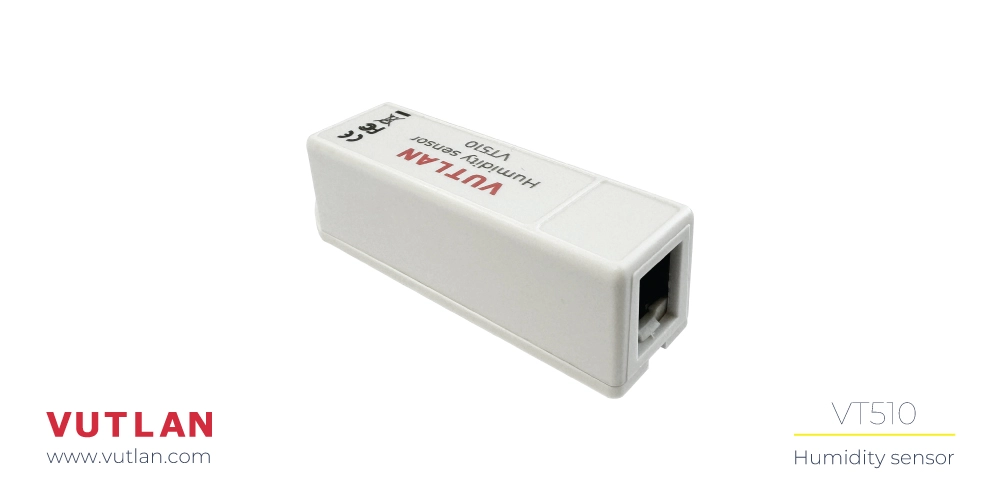

VT510 / Humidity sensor

Description

The sensor is needed for the measurement of relative humidity of 10-95% indoors. VT510 relative accuracy is 3%.

VT500 is an analog plug-and-play sensor.

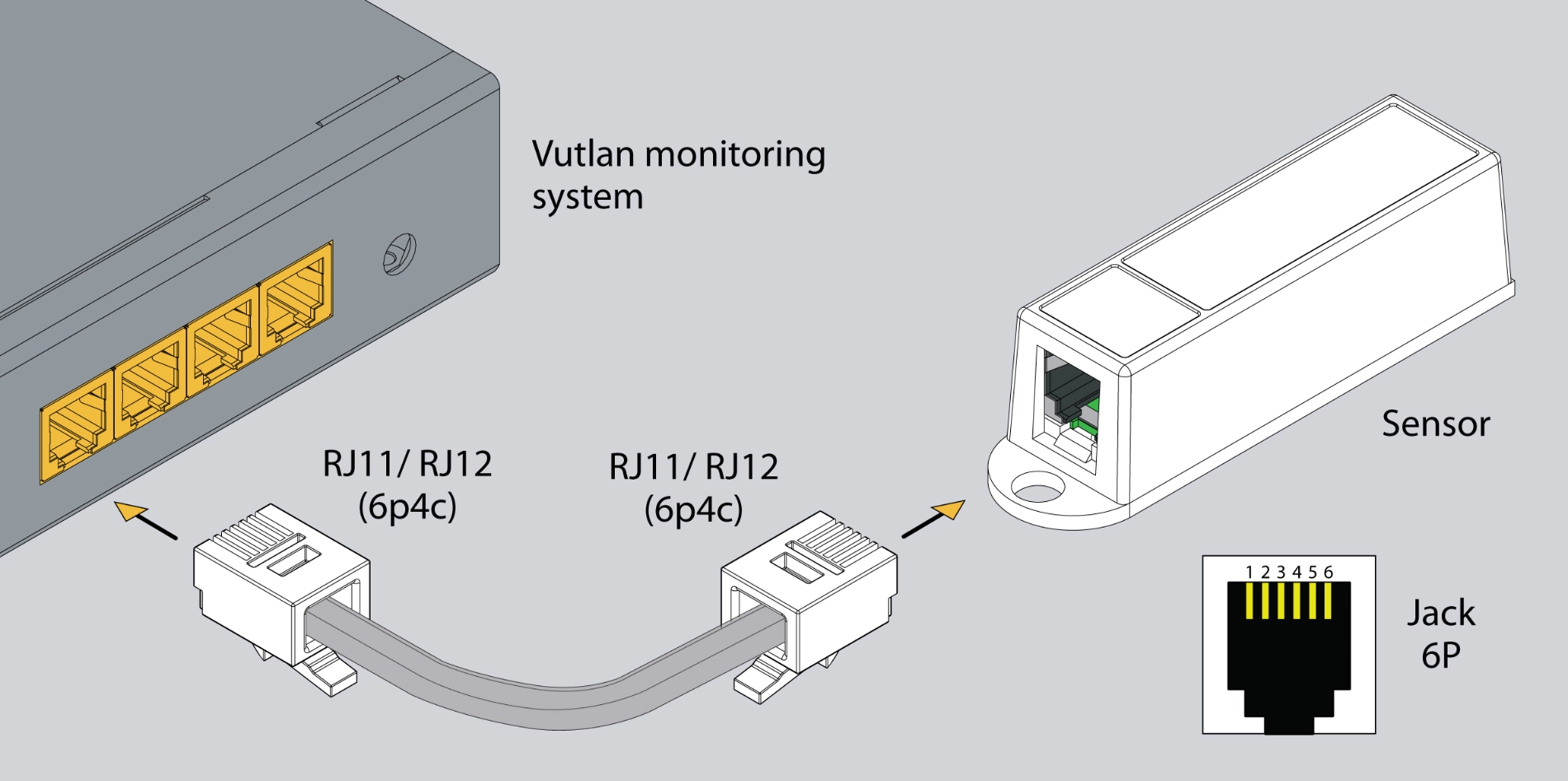

Can be connected to any analog port (A1...A8) of the Vutlan monitoring unit.

The maximum amount of sensors connected to a Vutlan monitoring unit and the maximum length away from the monitoring unit can be extended using the VT408 / Sensor extension unit.

Downloads

Specifications

Type of sensor:
Analog sensor
Measures:
Relative humidity
Accuracy:
3% RH
Daisy chain:
No
Cable length:
RJ11 6P4C 2m telephone cable included
Power consumption:
60 mW
Operating temperature:
Optimal temperature range: -10° C to +80° C
Operating humidity:
0 to 95 % indoors
Mounting possibilities:
Indoor,
Rack mountable,
Wall mount
Max. distance from the unit:
50 m
Manufactured in:
Slovak Republic, E.U.
HS Code:
9025 11 800
EAN:
8588009886136

Sensor features

Logic schemes

Logic schemes are used to specify automatic actions to events that occur in the system.

Dashboard view

The system allows to customize the dashboard individually for each user and displays the most important information on it in a visual form.
Add widgets with multi graphs, gauge meters or knobs.

Thresholds

Each sensor has Low Alarm, Low Warning, Normal, High Warning, and High alarm threshold states for logic control & sending of notification.

Graphs and Logging

Vutlan supports SD card logging up to 500 Gb. You can log a whole systems loaded with sensors for 3 years.

Add more analog sensors using VT408 or VT408DIN

'VT408 Sensor extension unit' and 'VT408DIN Sensor extension unit" increase the number of analog sensors connected to any Vutlan monitoring unit. Each VT408 unit adds 8 analog sensors. Multiple VT408 units can be connected using a daisy CAN chain. Sensors connected to the extension unit appear in the system automatically.

Systems with analog ports:

To read data from the analog sensors, you need Vutlan monitoring and control system. All the following monitoring & control systems have a different amount of analog ports.
