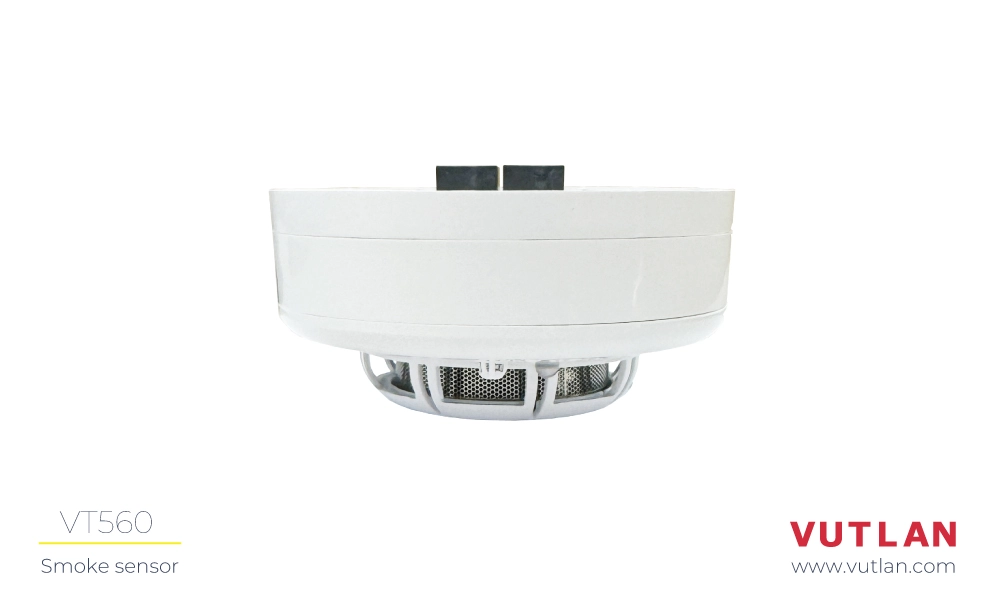

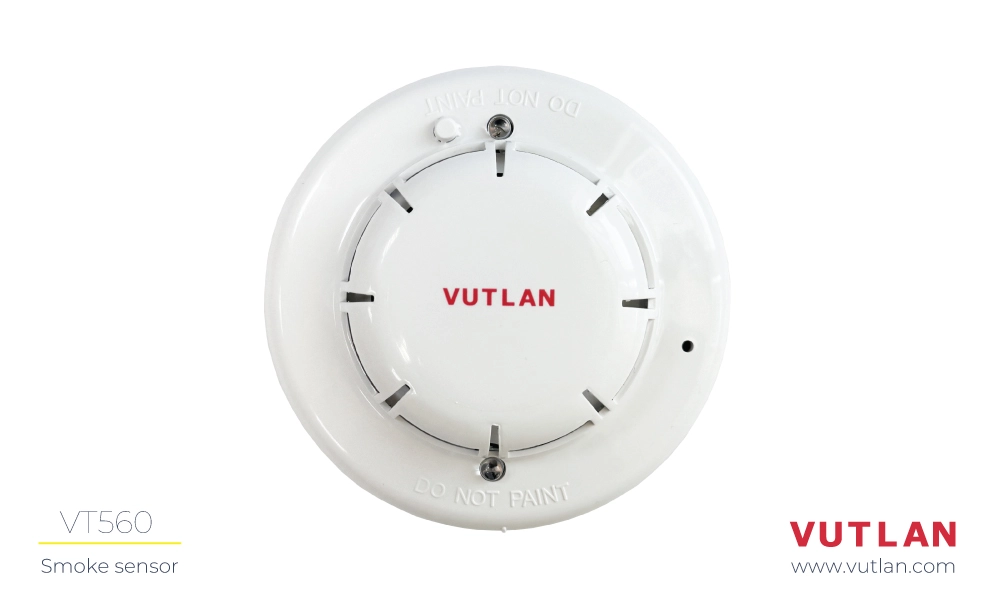

VT560 Smoke Detector
Previous
Next
Description
The VT560 Smoke Detector is designed to monitor the presence of smoke and fire indoors.

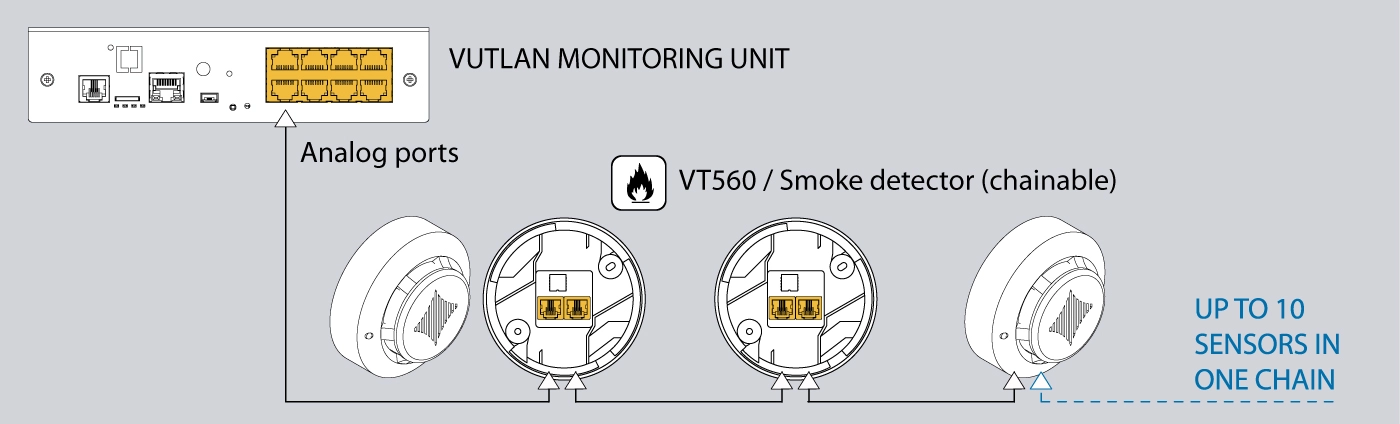

This plug-and-play sensor easily connects to any analog port of Vutlan monitoring devices. It can be chained, allowing multiple smoke detectors to be connected to a single bus. The system interface then shows a single smoke detector connected to analog port!
The maximum amount of sensors can be extended using the VT408 / Sensor extension unit.
Specifications
Type of sensor:
Analog sensor
Sensing type:
Photoelectric
Measures:
Smoke, fire
Daisy chain:
Yes, up to 10 sensors in a chain. The system will show all daisy chain sensors in one chain as one element. Any triggered sensor in a chain will trigger the element in the web interface.
Cable length:
RJ11 / RJ12 6P4C, telephone cable 2m included
Power consumption:
100 mW
Operating temperature:
Optimal: -10 °C to +55° C
Extended: -10 °C to +80° C
Storage temperature:
-10 °C to +55° C
Operating humidity:
5 to 95 % (Non-Condensing)
Storage humidity:
5% to 95% (Non-Condensing)
Average lifespan:
>=10 years
LED indication:
Red LED
Inputs / Outputs:

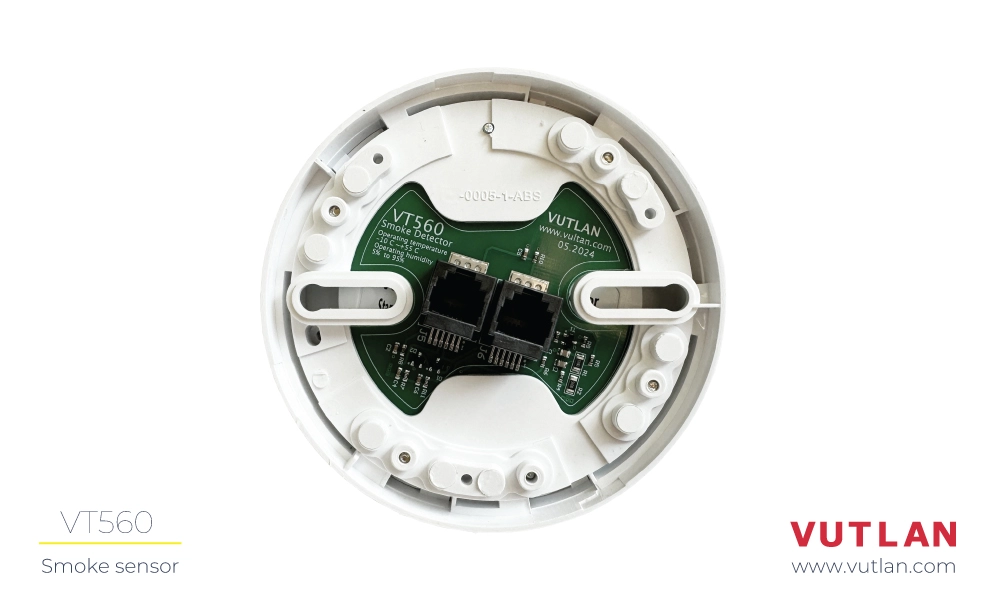

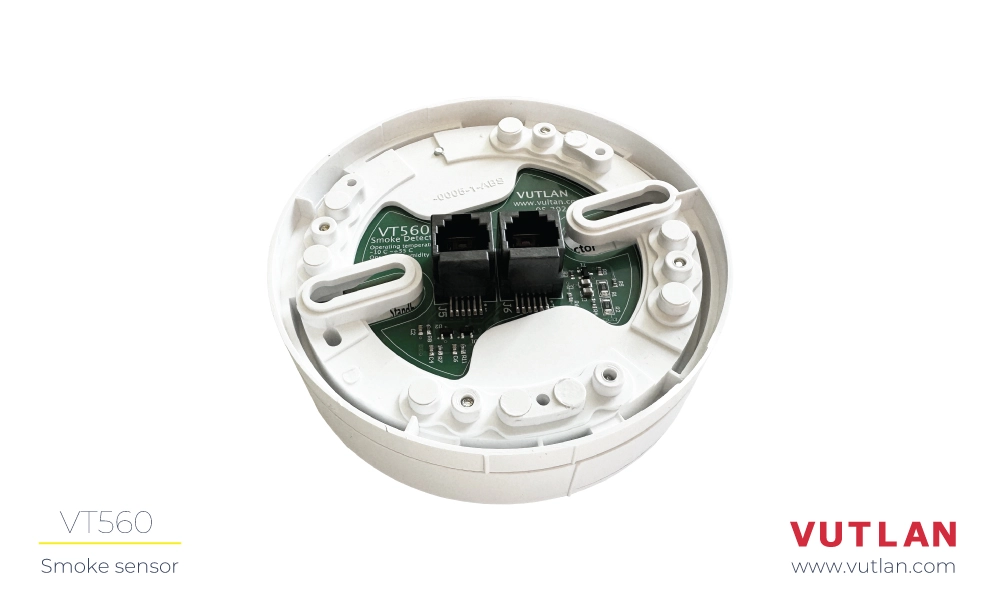

x2 ports RJ12

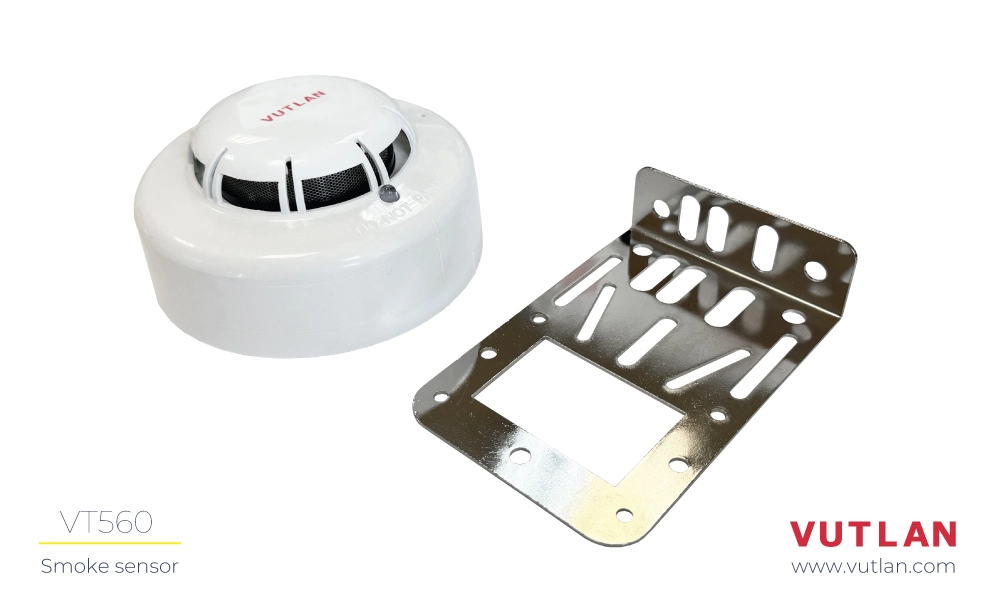

Mounting possibilities:
On the сeiling
Max. distance from the unit:
150 m from the unit or extension module
Maximum installation height
6 m
Dimensions
Ø100×45 mm
Manufactured in:
Slovak Republic, E.U.
HS Code:
8531 10 950
EAN:
8588009886235
Use cases
The Importance of Using VT560 to Improve Security
- Fire safety monitoring: the system detects the presence of smoke in the room.
- Installation in vulnerable areas: the sensor can be installed in rooms, buildings, server racks at a height of up to 3m.
Previous
Next
Sensor features
Logic schemes
Logical schemes are used to set automatic actions in response to events occurring in the system.
Dashboard view
The monitoring interface can be customized for each user.
There are widgets with multifunctional graphs and gauges.
Thresholds
Each sensor has 5 alarm thresholds for logical control and notifications.
Graphs and Logging
Vutlan supports recording to SD card and USB stick.
Data from the entire system loaded with sensors is stored for up to 3 years.
Previous
Next
Add more analog sensors using VT408 extension unit.
Each VT408 extension unit connected to the Vutlan monitoring device via the CAN bus adds the ability to connect 8 analog sensors to the system.
Sensors connected to the unit are automatically displayed in the system.
Systems with analog ports:
To read data from analog sensors you will need Vutlan monitoring devices.
