VT593 Spot Leak Sensor
Previous
Next
Description

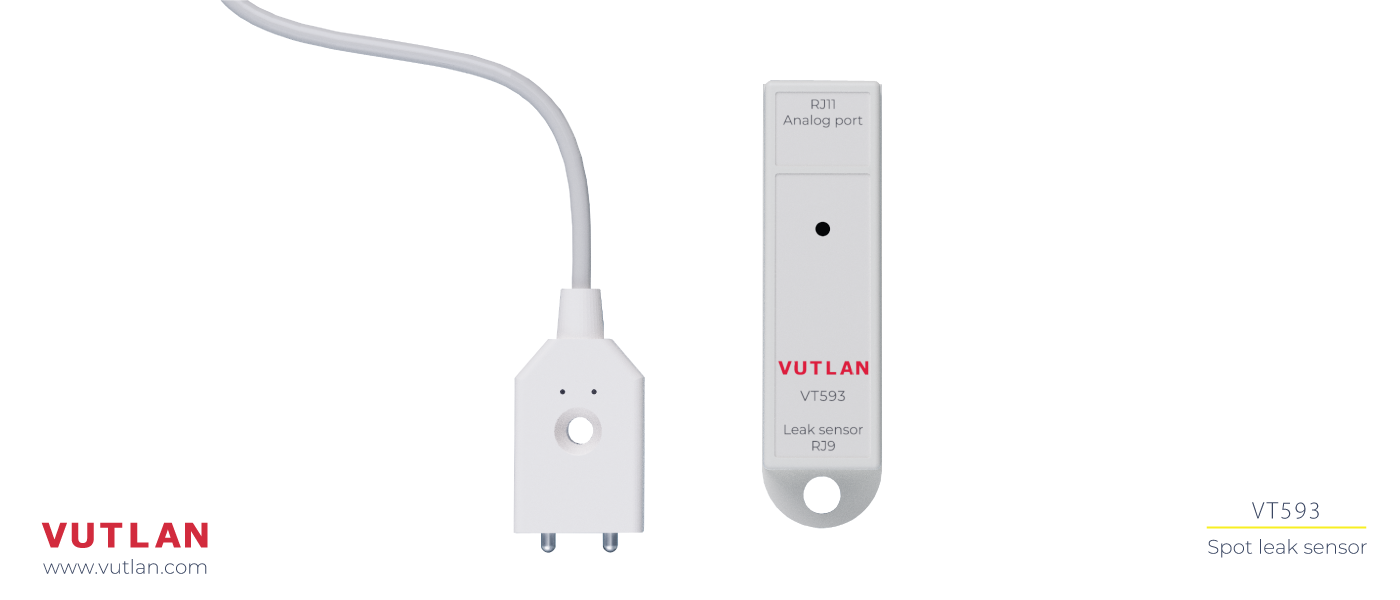

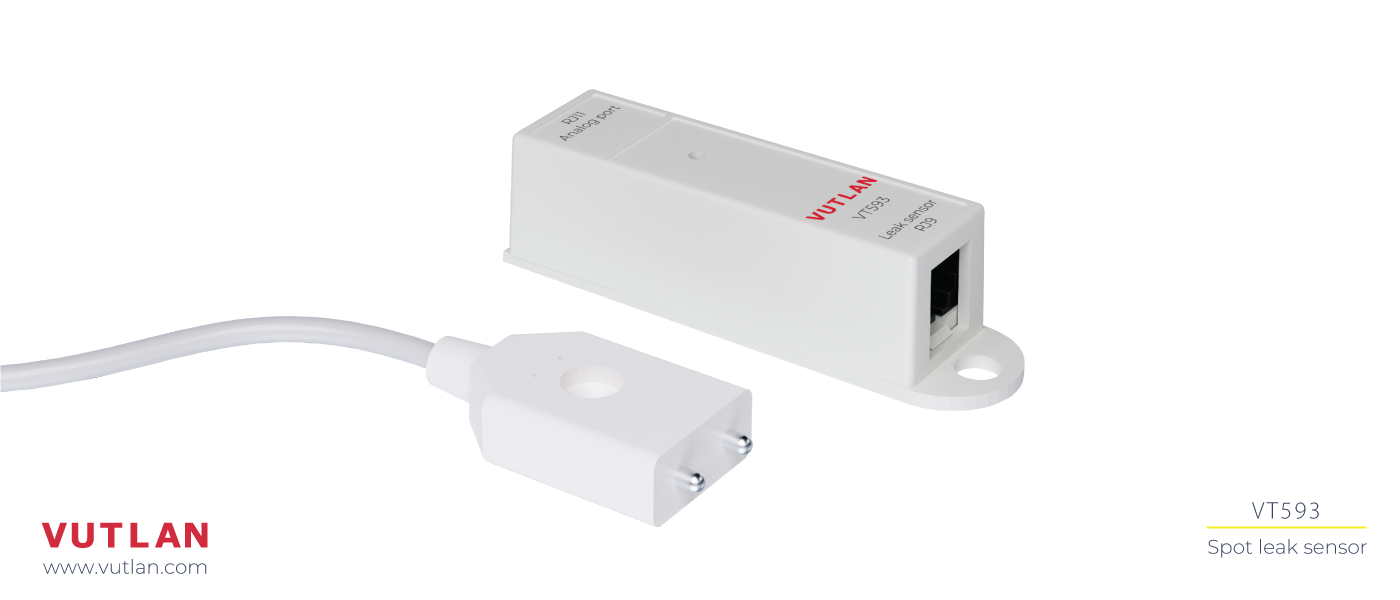

VT593 Spot Leak Sensor detects water by measuring an increase in capacitance between two metal poles on the spot, all housed within a durable plastic casing. Unlike traditional metal-based sensors, it resists corrosion over time thanks to the low applied voltages and non-corrosive detection method.
This plug-and-play sensor easily connects to any analog port of Vutlan monitoring devices.
The maximum amount of sensors can be extended using the VT408 / Sensor extension unit.
Use cases
This sensor is ideal for long-term monitoring where corrosion could be an issue, and it works seamlessly with Vutlan systems for comprehensive monitoring.
- Data Centers: It can detect water leaks under raised floors on the spot or near critical equipment, preventing costly damage to IT infrastructure.
- Industrial Facilities: Helps monitor areas prone to leaks, such as around or under machinery, boilers, heaters, or under piping systems.
- Residential and Commercial Spaces: Used to detect leaks in kitchens, bathrooms, boilers, and near appliances such as washing machines, and boilers.
- Water Level Meter: The sensor can be used to detect if the water has reached a particular height. For example in a water tray.
Specifications: VT593 Spot leak sensor specifications
Type of sensor:
Analog sensor
Detection:
Capacitive
Daisy chain
No
Description

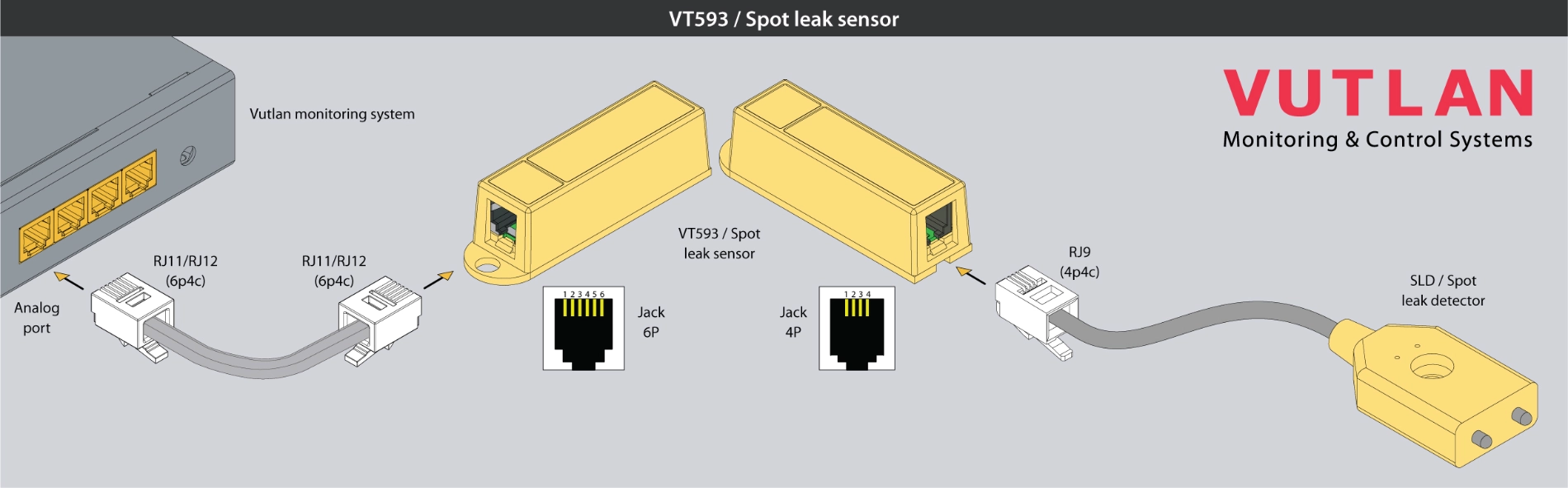

The sensor has two RJ connectors. RJ 6P4C connects to the analog port of Vutlan monitoring system. RJ 4P2C connects the leak detector with two poles.
Dimensions:
60×18×18 mm
Inputs:
2 wire (WDC cable)
Outputs:
RJ11 / RJ12 (6p4c)
Operating temperature:
-10 °C to +80 °C
Operating humidity:
5% to 95% (Non-Condensing)
Power consumption:
60 mW
Mounting:
Mounting bracket included.
Max. distance:
100 m from the monitoring and extension unit
Response time:
15 seconds
Recovery time:
Depends on how fast the sensor dries out
Manufactured in:
Slovak Republic, E.U.
HS Code:
9025 80 400
GTIN:
8588009886228
Specifications: SLD Spot leak detector
Description:
The detector is used in combination with the "VT593 / Spot leak sensor" for level monitoring of conductive liquids in containers, pits, cellars, etc. The sensor has two stainless steel poles. The detector is encapsulated in plastic housing for conductive liquids. The sensor can be connected to dry contact inputs (e.g. an alarm system). Can be placed near plumbing, trays, raised floors, under equipment, sinks, aquariums, sump pumps, refrigerators, dishwashers, toilets, basements, washing machines, water heaters, and garages.
Dimensions:
30x20x8 mm
Cable length:
1-meter cable
Operating humidity:
20%RH～100%
Working temperature
-10℃～50℃
Outputs
Two wires, RJ 4P2C plug.
Output form
NO normally open
Special features
The measuring electrodes are resistant to chlorine and salt water (stainless steel AISI 316 / V4A)
Previous
Next
Sensor features
Logic schemes
Logical schemes are used to set automatic actions in response to events occurring in the system.
Dashboard view
The monitoring interface can be customized for each user.
There are widgets with multifunctional graphs and gauges.
Thresholds
Each sensor has 5 alarm thresholds for logical control and notifications.
Graphs and Logging
Vutlan supports recording to SD card and USB stick.
Data from the entire system loaded with sensors is stored for up to 3 years.
Previous
Next
Add more analog sensors using VT408 extension unit.
Each VT408 extension unit connected to the Vutlan monitoring device via the CAN bus adds the ability to connect 8 analog sensors to the system.
Sensors connected to the unit are automatically displayed in the system.
Systems with analog ports:
To read data from analog sensors you will need Vutlan monitoring devices.
