VT408D Sensor extension unit
Previous
Next
Description

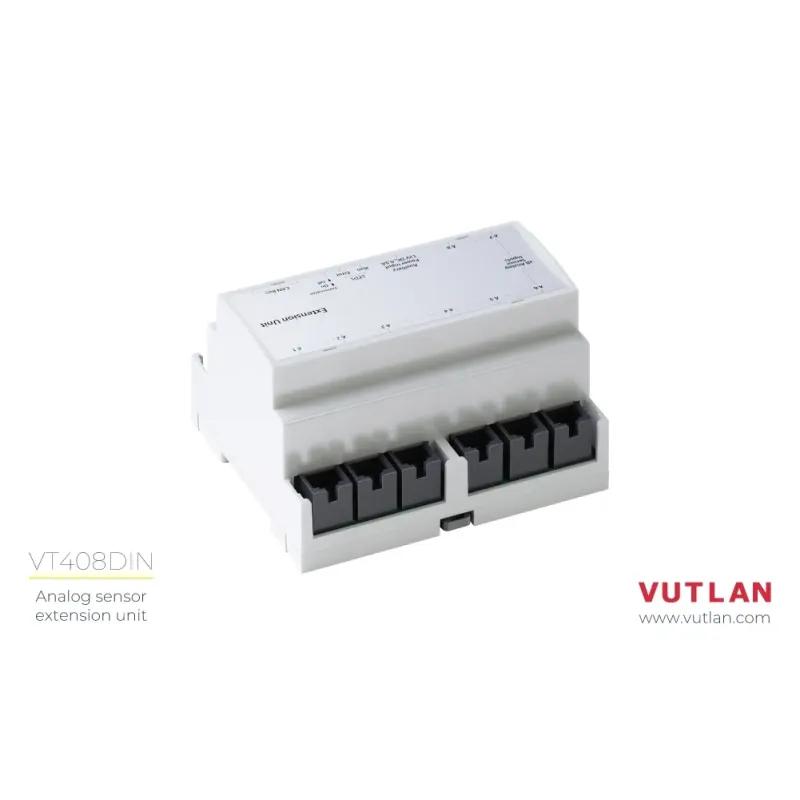

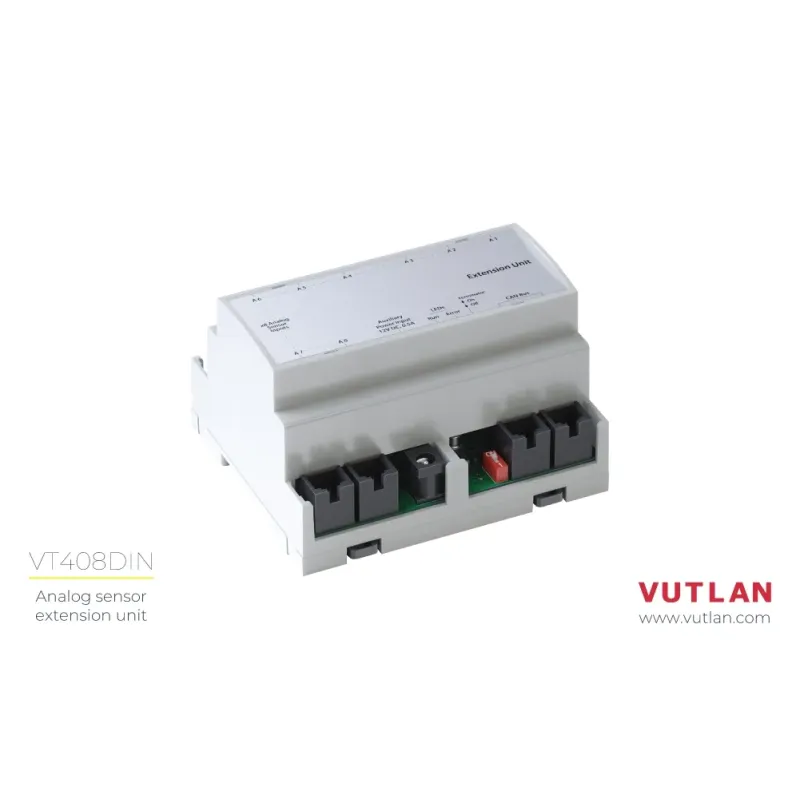

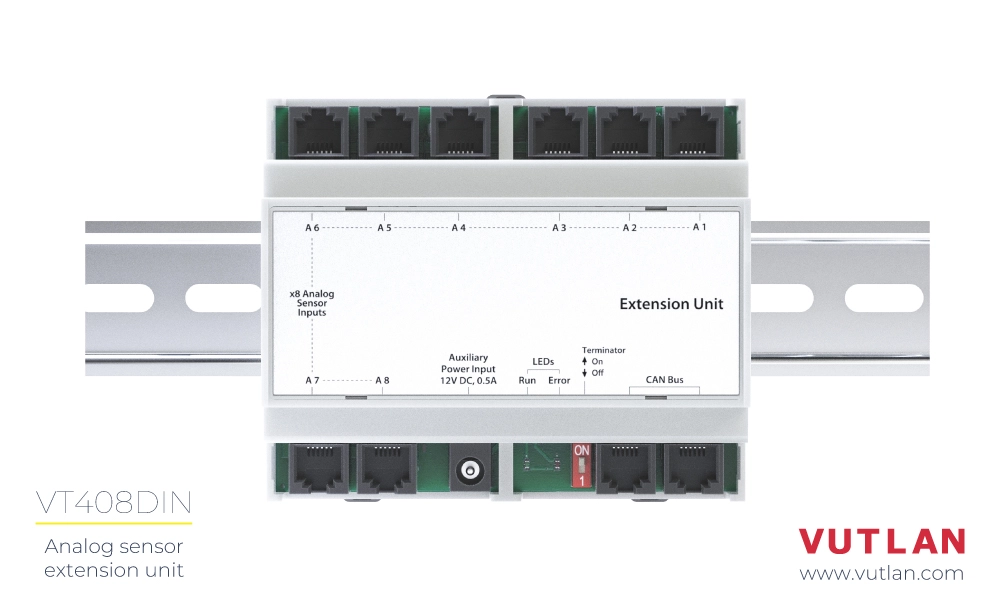

'VT408DIN Analog sensor extension unit' increases the number of analog sensors connected to any Vutlan monitoring unit. Each VT408 unit adds x8 analog sensor ports. This is a CAN bus unit, it connects in a CAN port and allows further CAN daisy chain connection. Sensors connected to the extension unit appear in the system automatically.

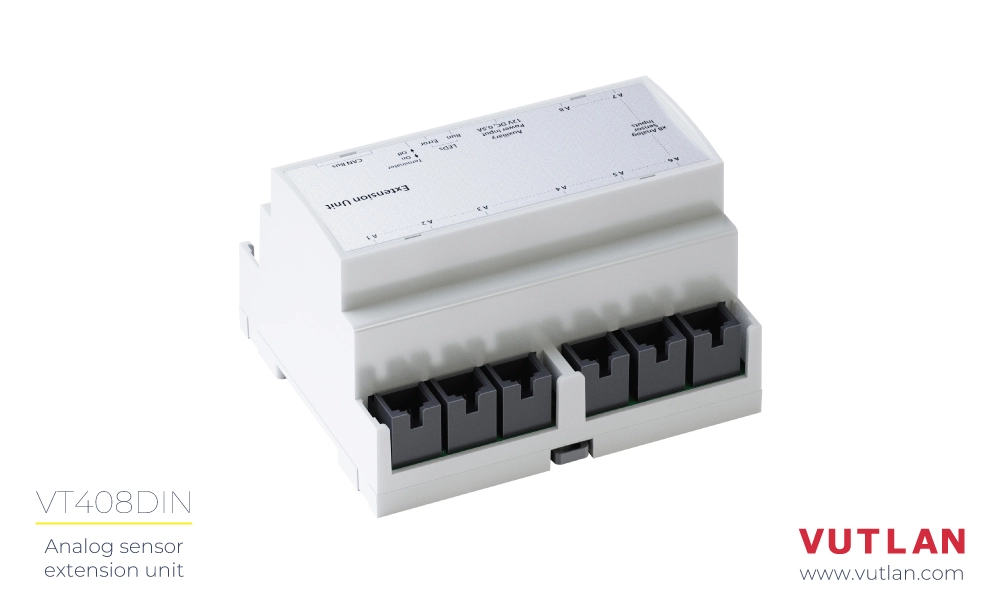

The device has a DIn rail form factor for industrial applications and electrical-mechanical enclosures
CAN devices and sensors can be chained together. Up to 10-32 CAN devices can be connected in a chain. You can connect CAN sensors or extensions on a CAN bus line.
Specifications
Device type:
CAN bus device
Network Interface:
CAN open
Inputs:

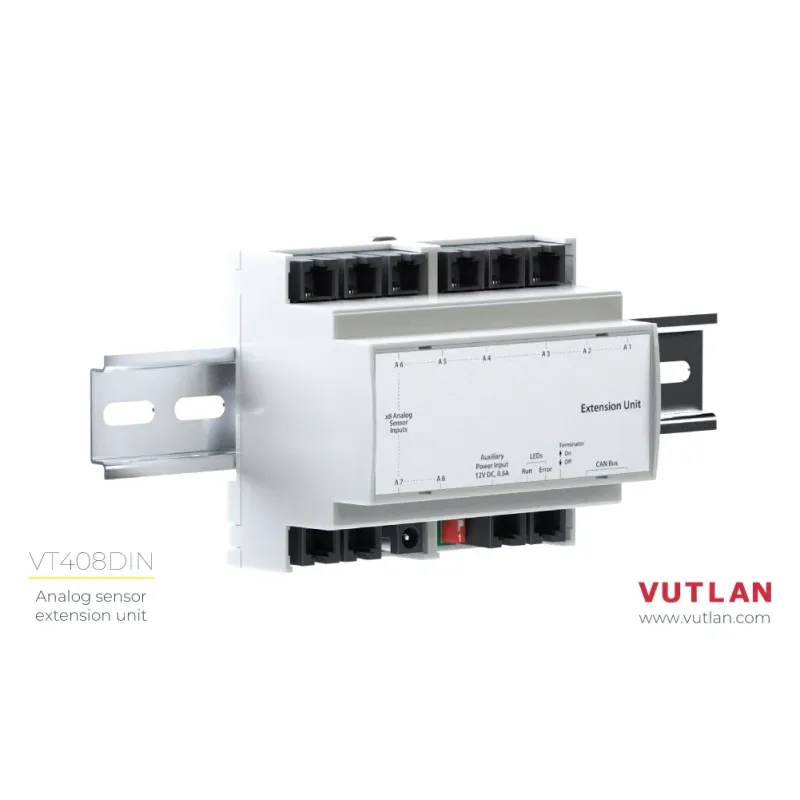

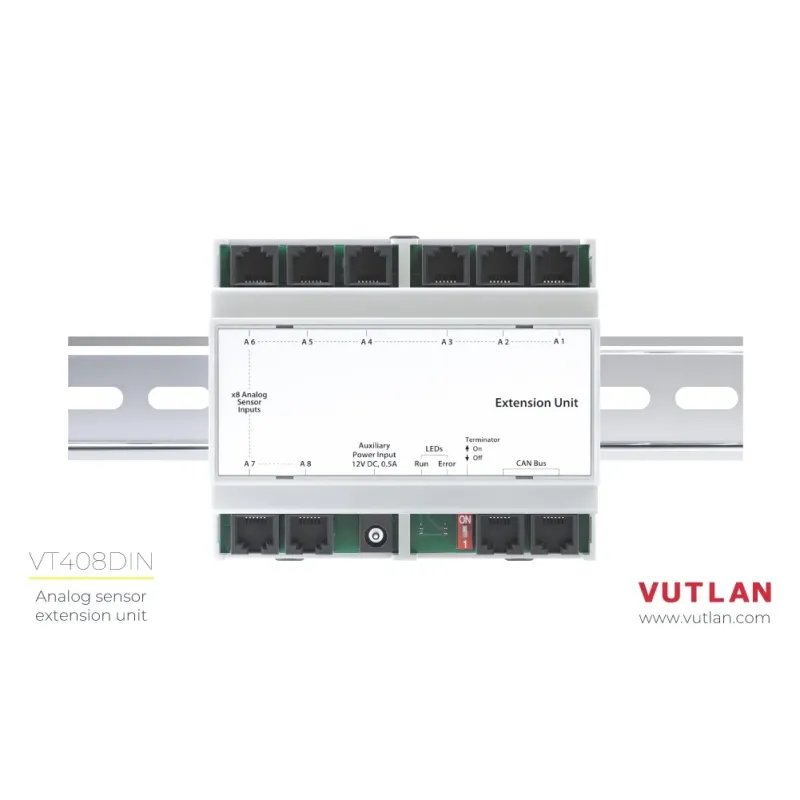

x8 analog sensor ports, x2 RJ11/RJ12 6P4C CAN ports
Daisy chain:
Yes, can be connected in a chain with other CAN bus sensors and extensions.
Operating temperature:
-10° C to +80° C
Max. distance from the unit:
Max. bus length: 225m,
Max. length of analog sensor cables: 50-150m (depends on sensor type)
Maximum units in a chain:
You can install a maximum of x24 VT 408 units, provided that no other CAN devices are installed in a CAN chain.
Power input:
12V DC
Dimensions:

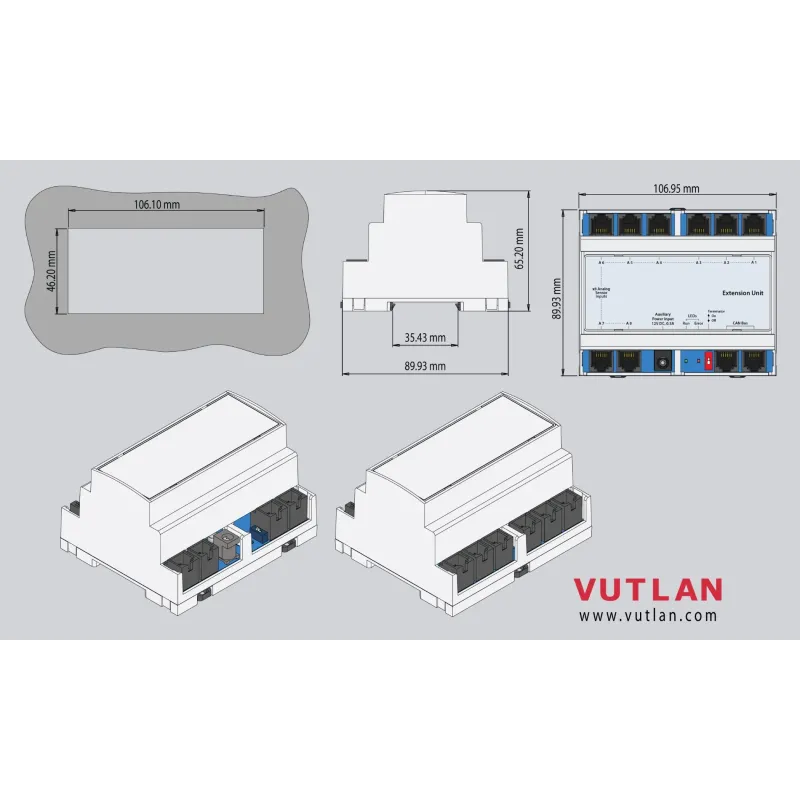

Width 129, Height 28.6, Depth 56 mm
Mounting possibilities:

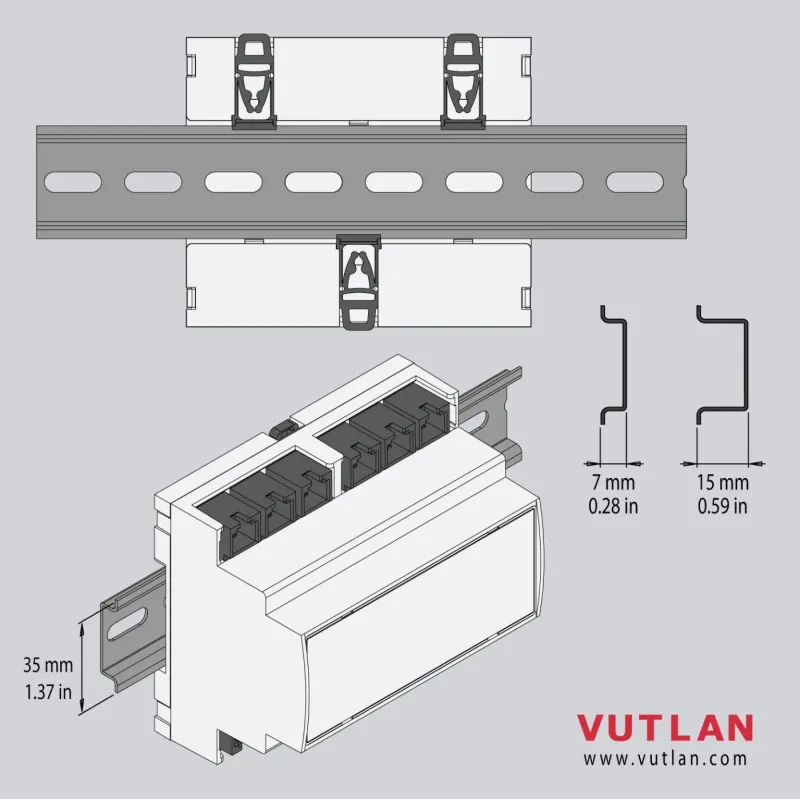

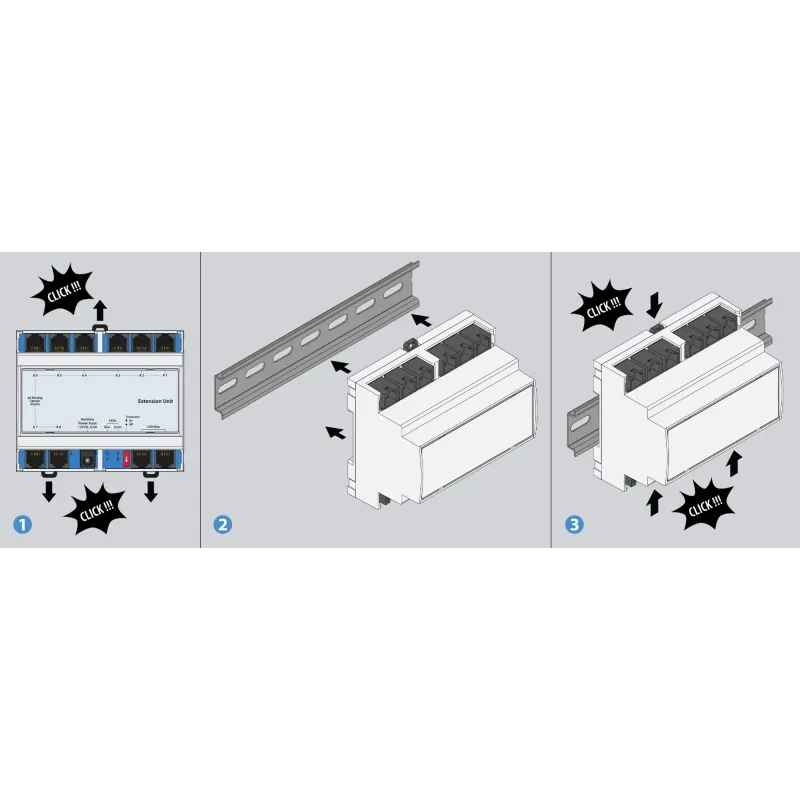

DIN rail 7mm depth, 15mm depth
Status Indicators:
Red (Error) / Green Led (Run)
TR switch:
Activate if the unit is the last unit in a CAN bus chain.
Manufactured in:
Slovak Republic, E.U.
HS Code:
8471 50 000
GTIN:
8588009886464
Previous
Next

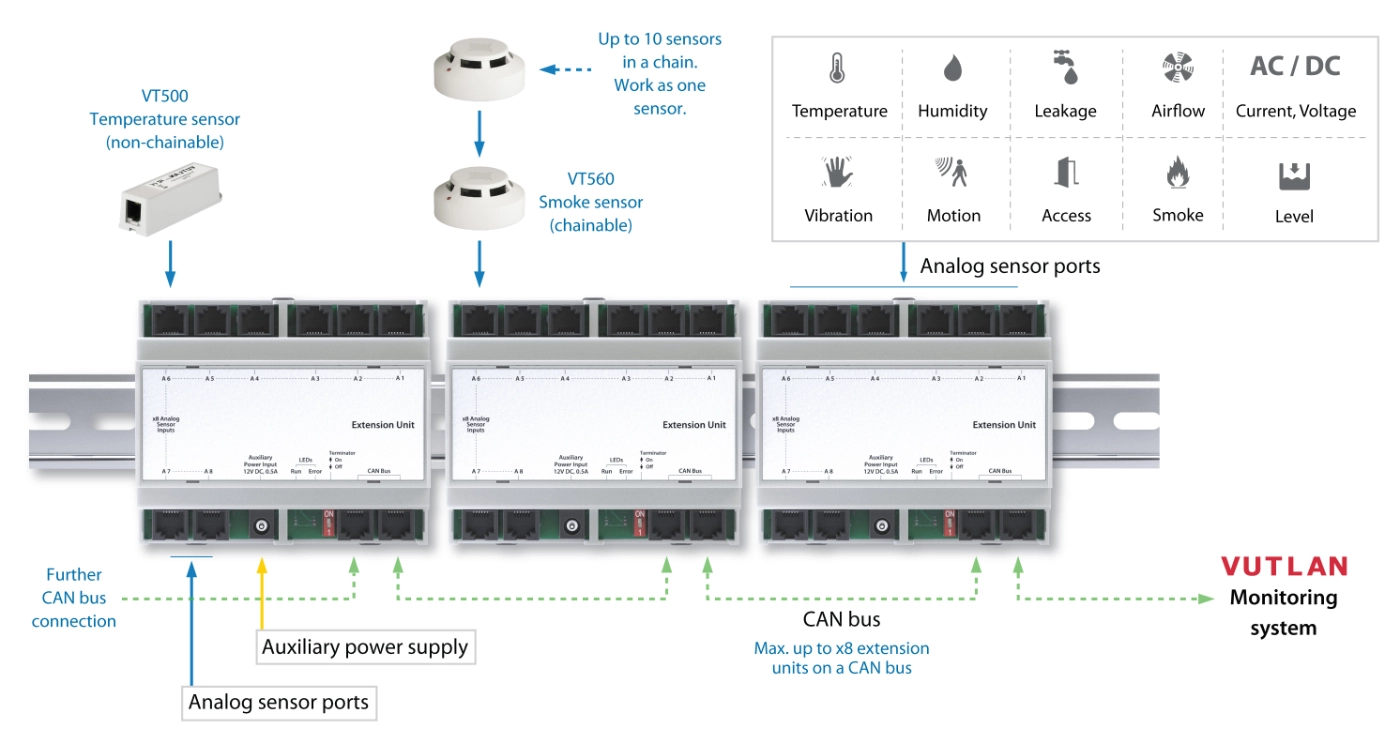

Connecting CAN sensors

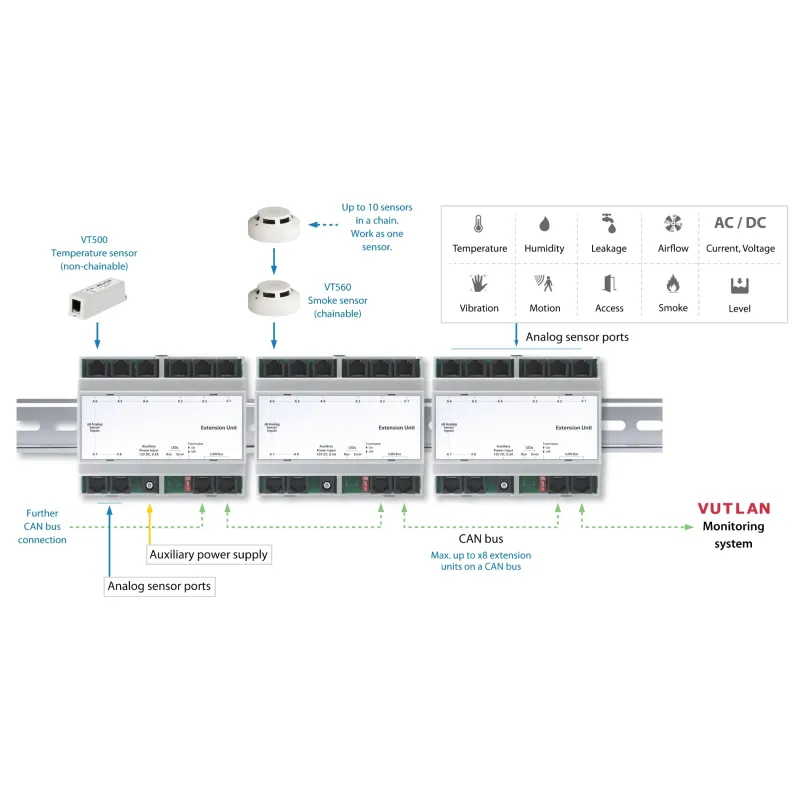

You can connect up to x32 CAN units in a CAN bus chain.
E.g. Each VT408 unit in a CAN bus chain adds 8 analog sensors.
E.g. Each VT440 unit adds x32 or x64 dry contact inputs to the system.
The additional power supply CAN12V-1A is needed only if the number of sensors in a CAN bus chain is more than 12 sensors. Supplies power for each additional group of 12 sensors.
Systems with CAN ports:
To read data from the CAN sensors, you need a Vutlan monitoring and control system. A monitoring system may have x1 or x2 CAN ports.
