K6D DC Current meter

€88.50 Tax included

Description

The K6D DC is a simple open-loop DC ammeter capable of measuring currents from 0A to 50, 100, 200, 300, 400, 500A. It connects to the monitoring system via the VT405 transceiver. This plug-and-play transceiver easily connects to any analog port of Vutlan monitoring devices.

Use cases

  • DC Power Distribution Monitoring: Measures load current from DC Hall effect transducers installed on battery strings, DC busbars, and distribution lines, enabling remote supervision of power consumption, overload detection, and circuit health.

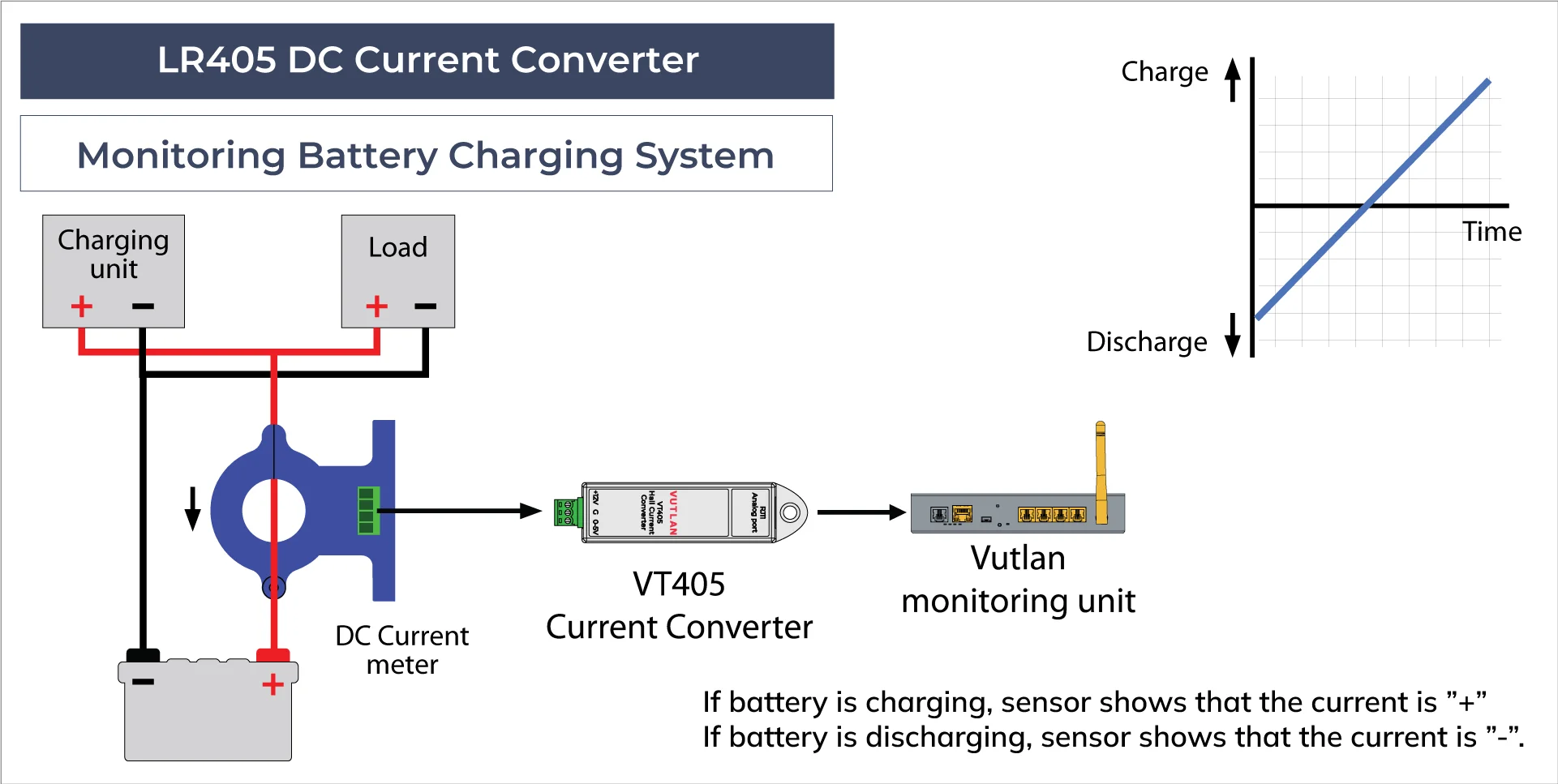

  • Battery System Current Monitoring: Monitors charge and discharge currents in battery banks, UPS systems, and energy storage systems to track performance, detect abnormal current flow, and optimize battery life.
  • DC Equipment Monitoring: Supervises telecom rectifiers, DC motors, solar controllers, EV chargers, and industrial DC-powered equipment to detect operational changes, unexpected load variations, and fault conditions. You’re out of messages with the most advance

Order Options / Models

K6D DC 50:
Rated input: 50A
Measured range: 0-50 Adc
K6D DC 100:
Rated input: 100A
Measured range: 0-100 Adc
K6D DC 200:
Rated input: 200A
Measured range: 0-200 Adc
K6D DC 300:
Rated input: 300A
Measured range: 0-300 Adc
K6D DC 400:
Rated input: 400A
Measured range: 0-400 Adc
K6D DC 500:
Rated input: 500A
Measured range: 0-500 Adc

Required Components

VT405 Current Tranceiver

The VT405 current transceiver bridges the measured data from the K6D DC transducer to the Vutlan monitoring system.

VT405 Product page

Technical Specifications


Used for:
Measure Direct Current
Rated input (Adc):
50A, 100A, 200A, 300A, 400A, 500A
(see order options)
Measured range:
0-50, 0-100, 0-200, 0-300, 0-400, 0-500 Adc
(see order options)
Rated output:
0-5Vdc
Load resistance:
≤250 Ω (for measured range 0-50, 0-100, 0-200 Adc)
≥10 KΩ (for measured range 0-300, 0-400, 0-50 Adc)
Offset current:
≤±0.1 mA (for measured range 0-50, 0-100, 0-200 Adc)
≥15 mV (for measured range 0-300, 0-400, 0-50 Adc)
Supply Voltage:
+12 Vdc
Accuracy:
≤±1.0 %
Linearity error:
≤±1.0 %
Response time:
≤ 20 mS
Power consumption:
≤ 50 mA (for measured range 0-50, 0-100, 0-200 Adc)
≤ 20 mA (for measured range 0-300, 0-400, 0-50 Adc)

Bandwidth:
DC-2.0KHz
Insulation voltage:
AC 2.5KV 50Hz 1min
Operating temperature:
-10~ +70°C
Storage temperature:
-25~ +85°C
Through hole:
21 mm
Phase:
Single
Coil Structure:
Toroidal
Coil Number:
Auto-transformer
Net Weight:
67g

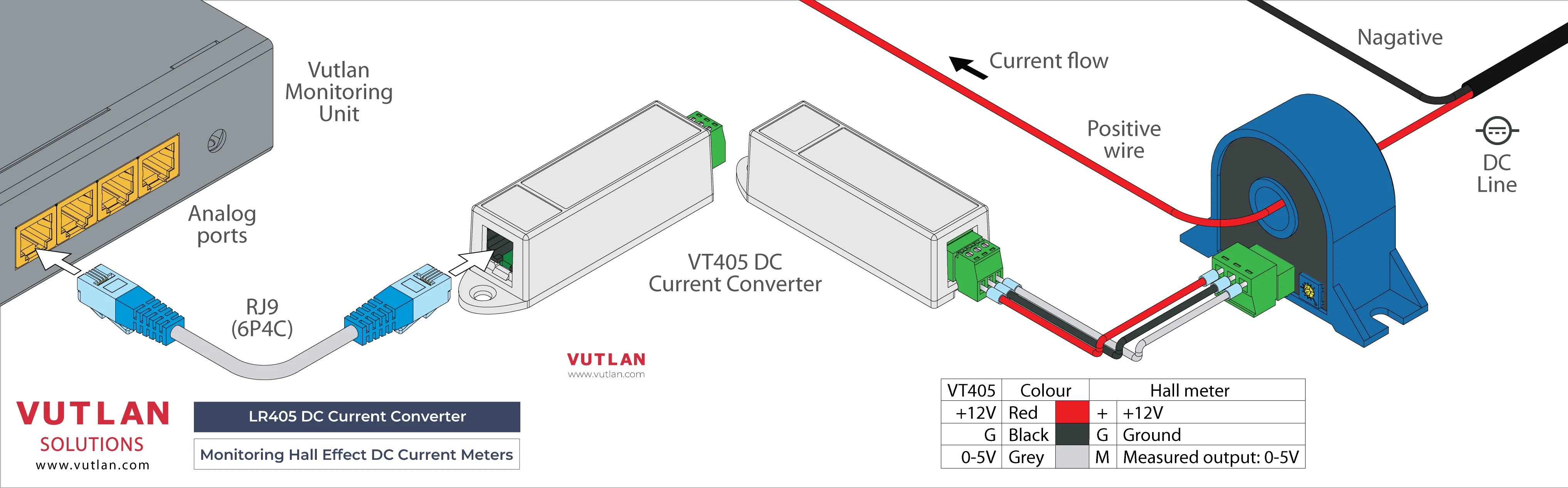

Outputs:
4 pin terminal, pitch 3.81mm,
G: ground
M: 0-5V output
G: Ground
+: +12V DC power input
HS Code:
9030 33 100

Downloads

K6D DC Flyer
VT405 & K6D DC Current Online User Guide
K6D DC Package Content
