Stay Online. Stay Informed

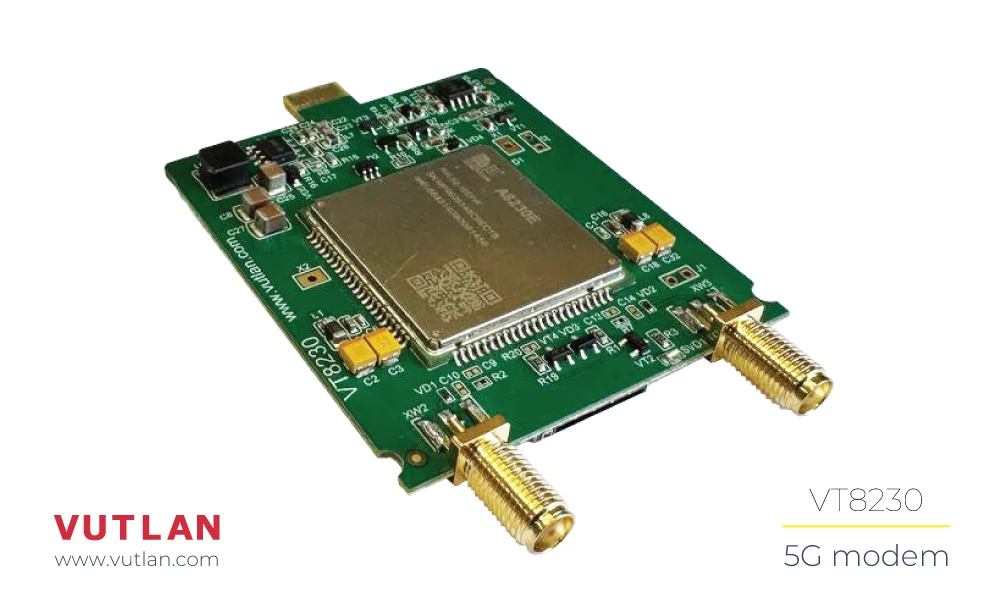

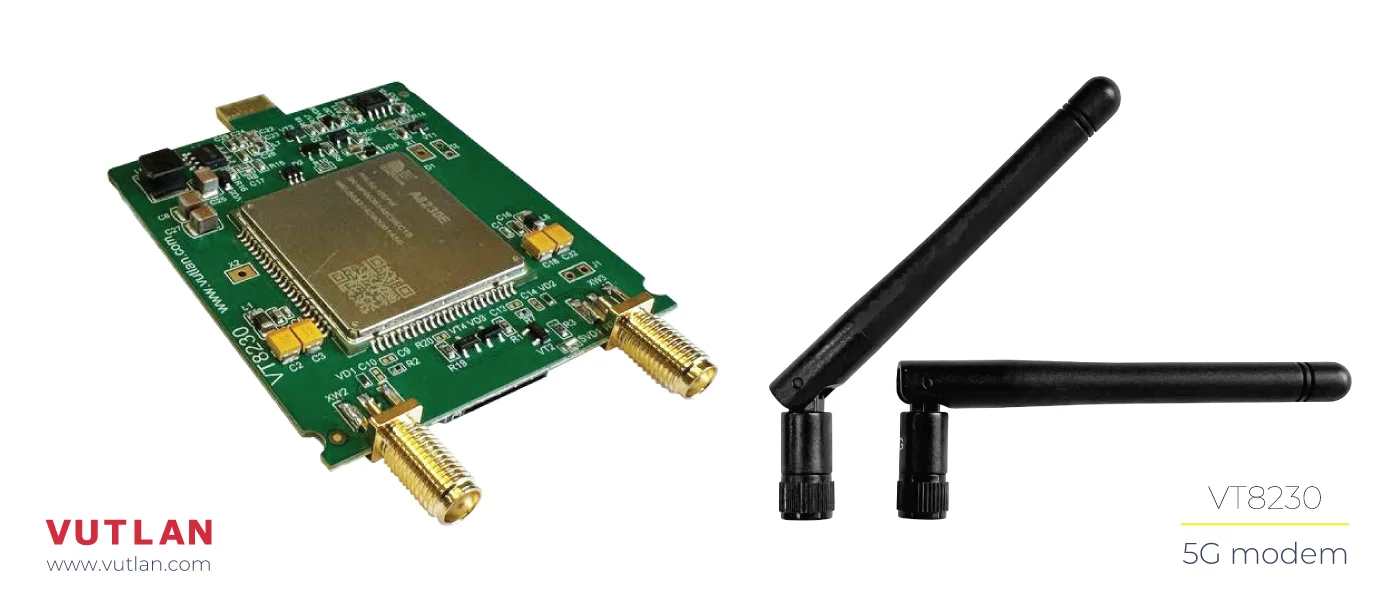

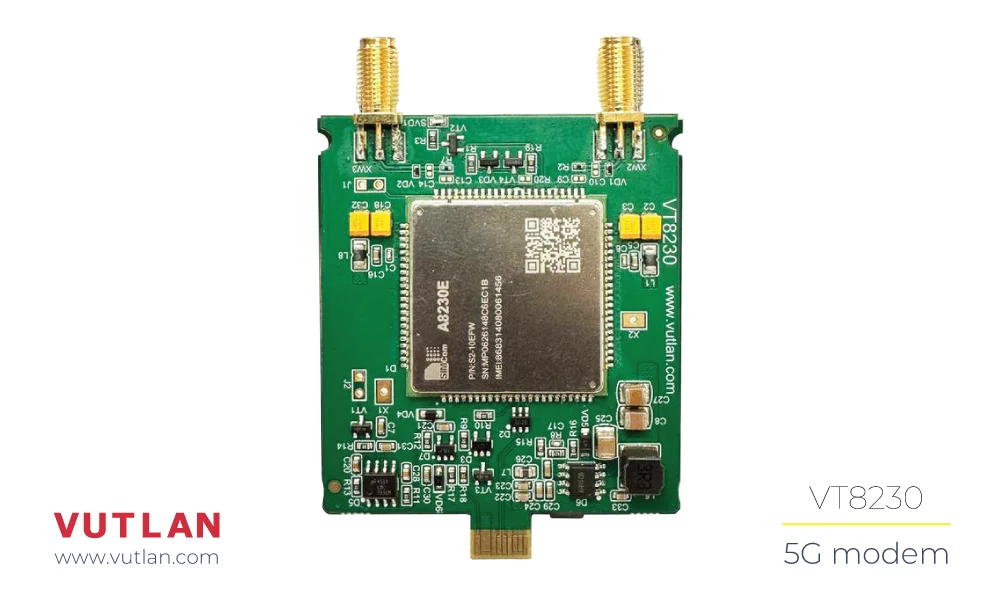

The VT8230 5G module supports receiving and sending SMS messages via 2G and 3G networks, as well as providing Ethernet connectivity over 5G. It ensures continuous communication by sending notifications over various channels like Ethernet, SMS, and SNMP.

One of its critical functions is providing network redundancy; if the LAN connection fails, the module automatically switches to 5G to maintain the Ethernet connection.

The VT8230 can be integrated into older Vutlan monitoring systems, including VT335i, VT825i, VT855i, and some earlier "t" versions, where the width of the modem is 54mm.

Downloads

VT8230 5G Modem Leaflet
VT8230 Online Manual
Using LTE mode
Using a single LTE modem for several units
Send SMS through the Vutlan device
How to use SMS commands
Incoming SMS forwarding and SMS commands
API: Notification elements
CE EMC LVD ROHS certificate - LV units

Technical Specification

Function & Purpose
Device type:
Extension slot
Used for:
Network reservation, SMS notification messages, Ethernet access, Control over AT commands
Compatible with:
VT335i, VT825i, VT855i, and some earlier "t" versions, where the width of the modem is 54mm.
General
Manufactured in:
Slovak Republic, EU. Vutlan s.r.o.
HS code:
9025 11 800
GTIN:
8588009886822
Certification:
CE-RED, RoHS, REACH
Communication
Chip:
SIMCom, A8230E
Standard:
3GPP Rel-17, 5G SA, NR/LTE dual-mode
Operating temperature:
-40℃ ~ +85℃
5G NR Sub-6GHz (Mbps):
220(DL) / 100(UL)
LTE (Mbps):
150(DL) / 50(UL)
5G NR Frequency Bands:
n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78
LTE-FDD Bands:
B1, B3, B5, B7, B8, B20, B28
LTE-TDD Bands:
B38, B40, B41, B42, B43
