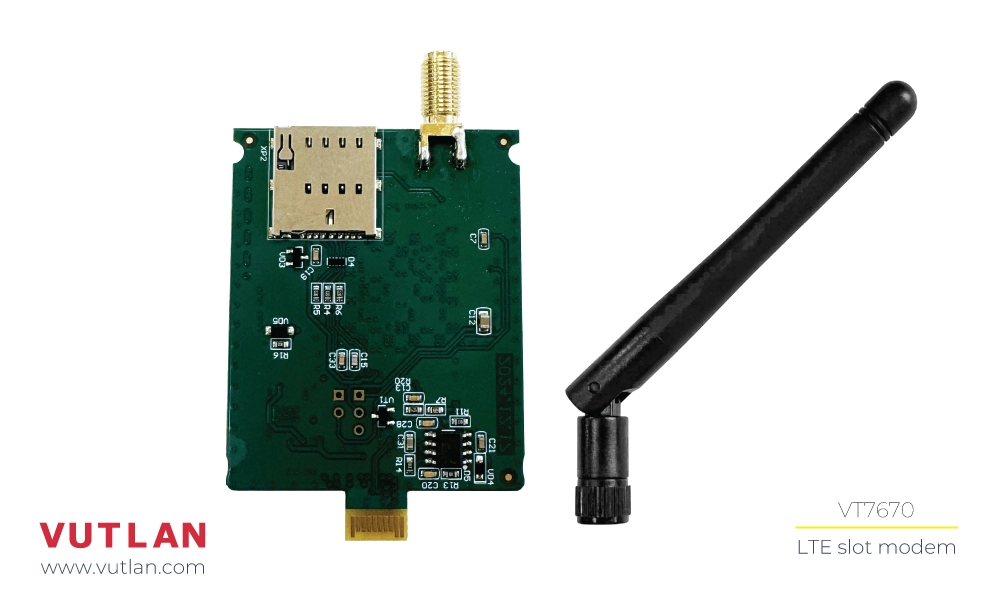

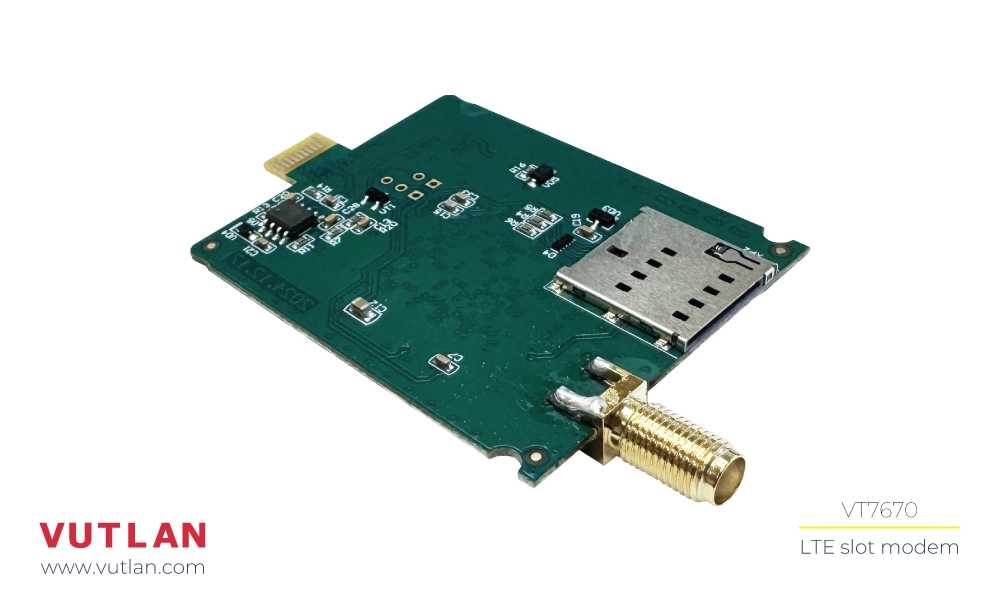

VT7670 4G modem
Previous
Next
Description

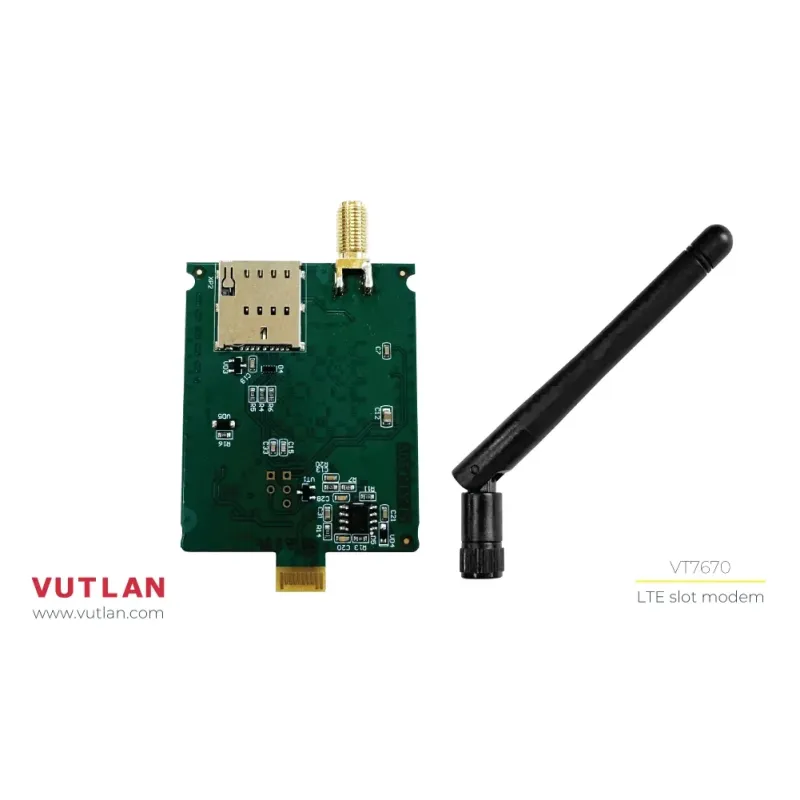

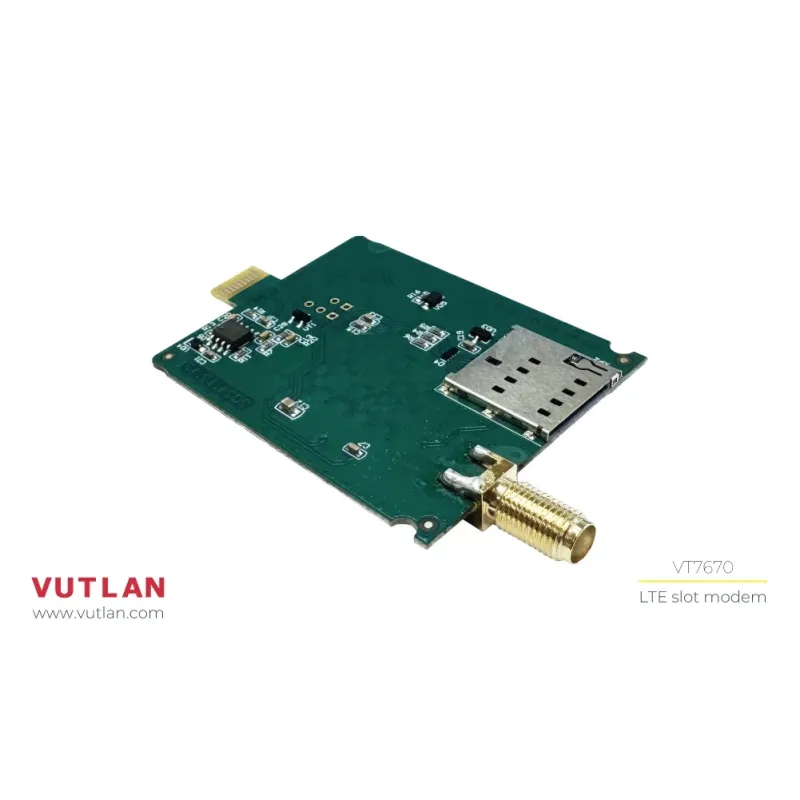

The VT7670/ 4G modem supports receiving and sending SMS messages via 2G, as well as providing Ethernet connectivity over LTE (4G).
Supports network redundancy; if the LAN connection fails, the module automatically switches to LTE 4G to maintain the Ethernet connection.

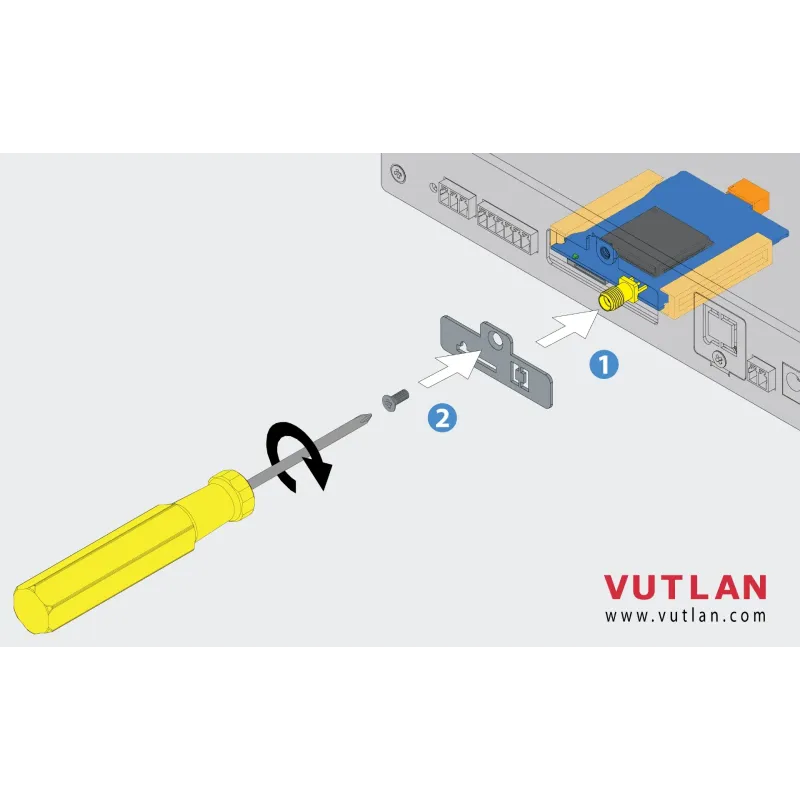

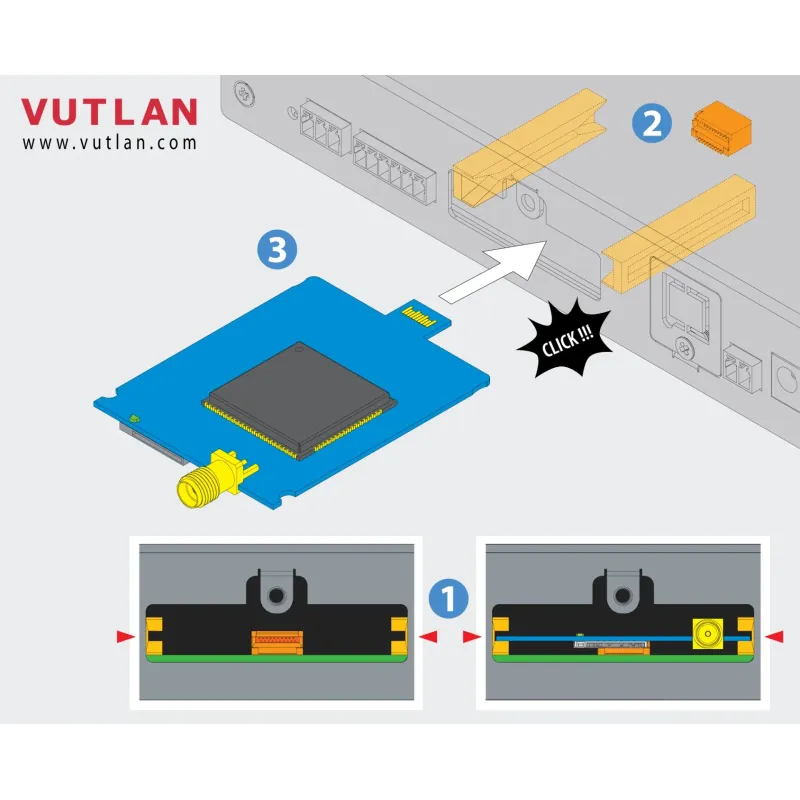

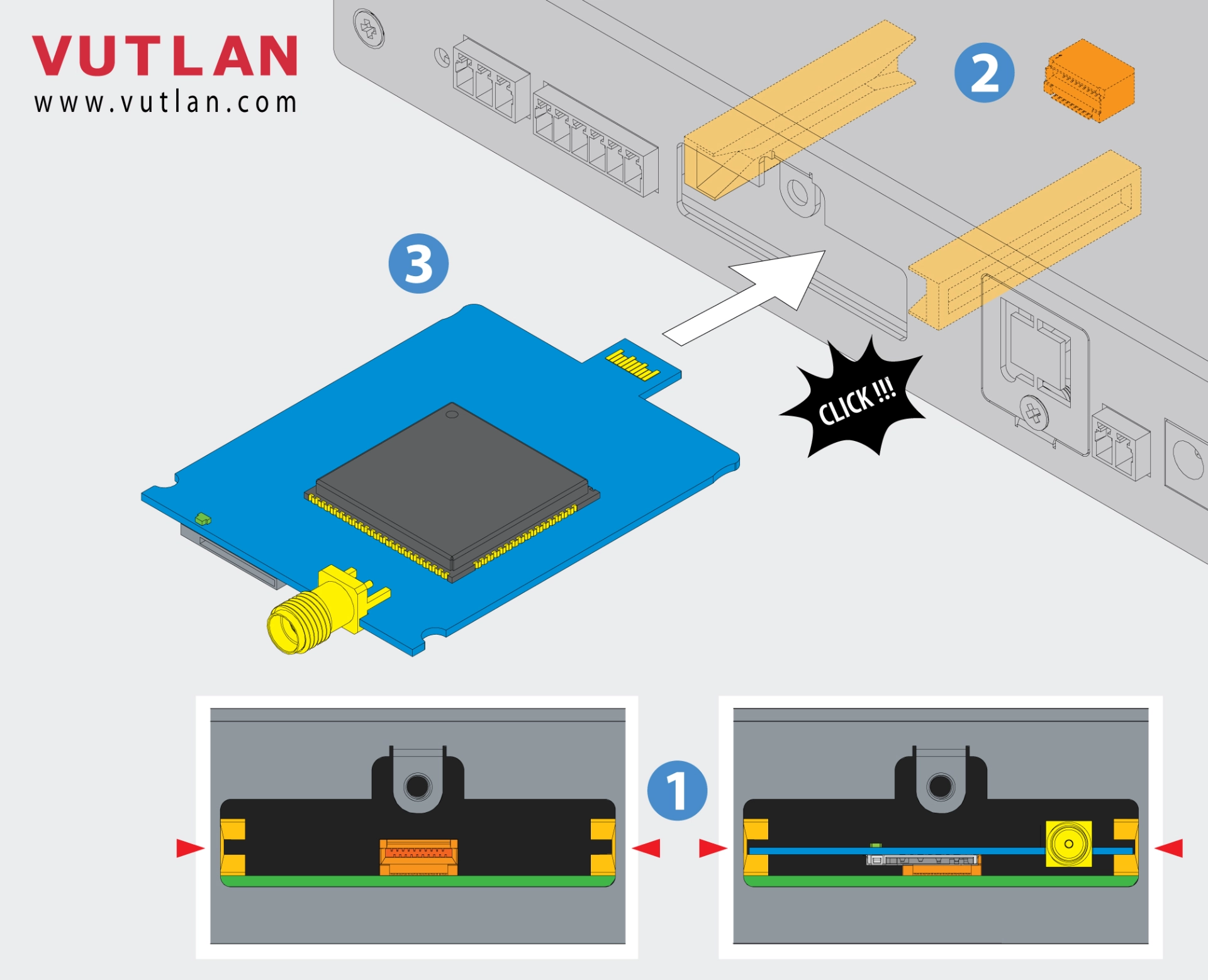

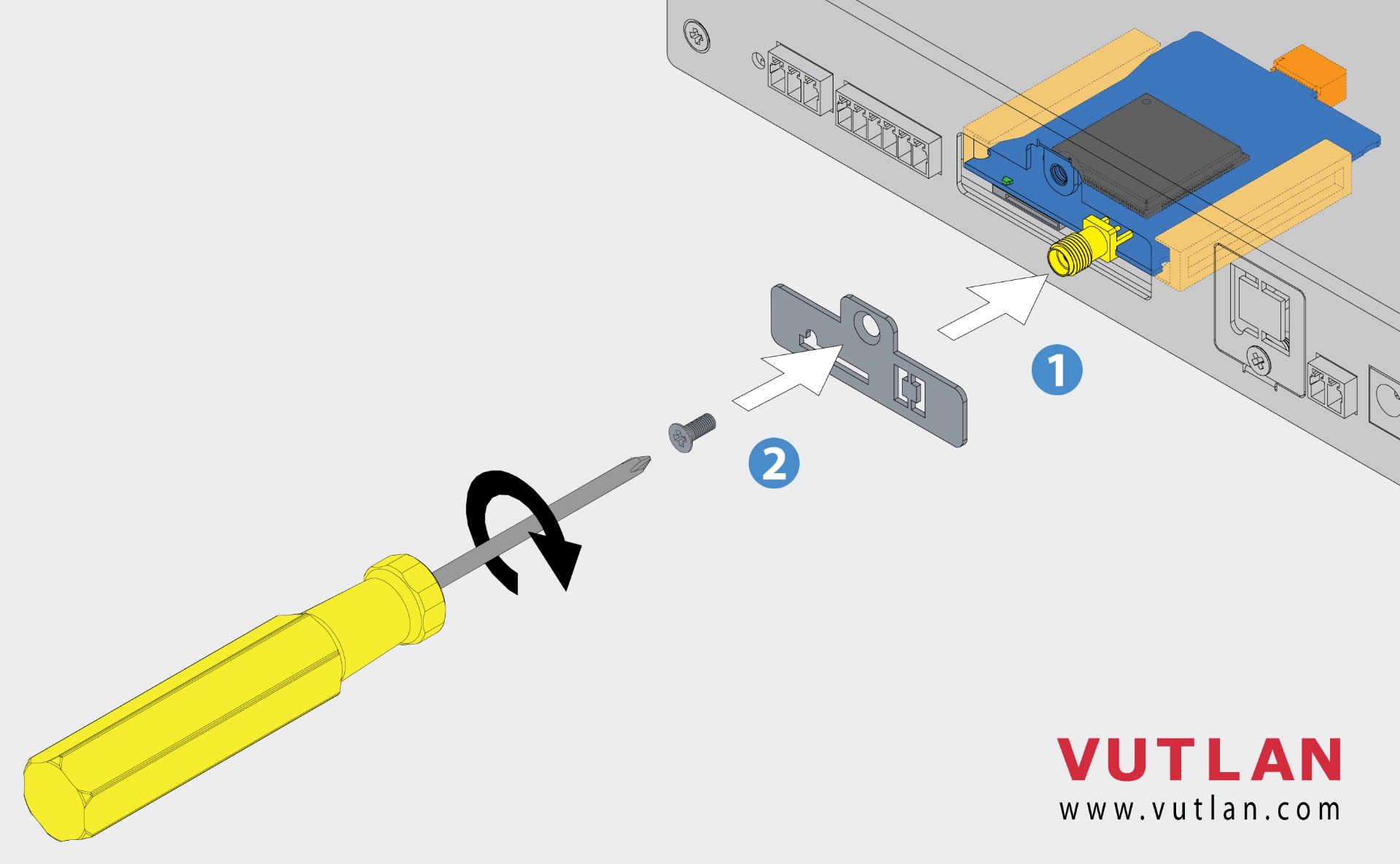

This plug-and-play board is inserted into the modem slot of Vutlan monitoring units.
Specifications
Device type:
Extension slot
Used for:
For the latest VT335t, VT336t, VT825t, and VT855t monitoring systems

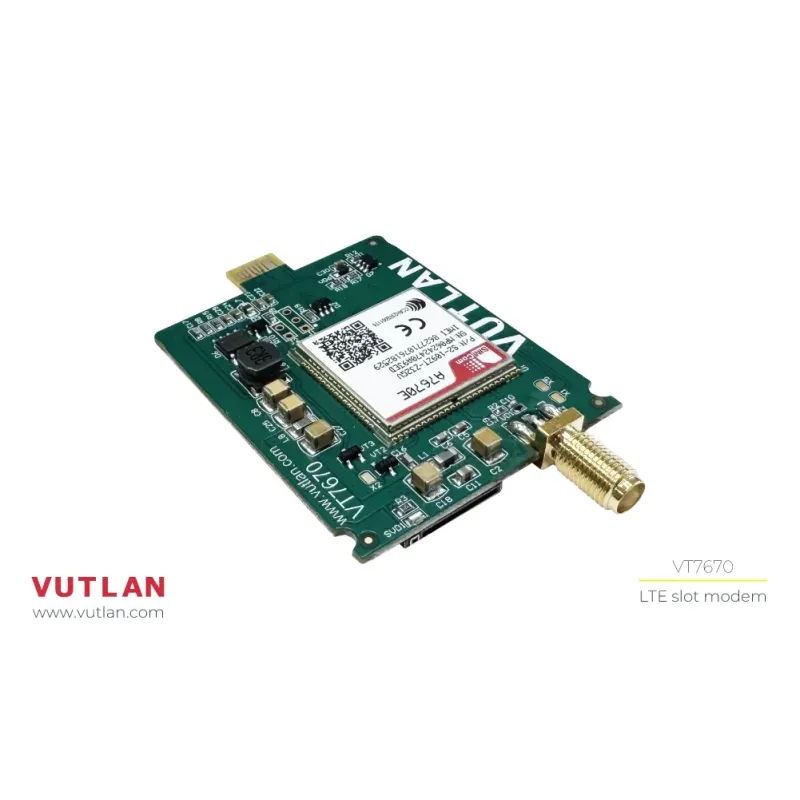

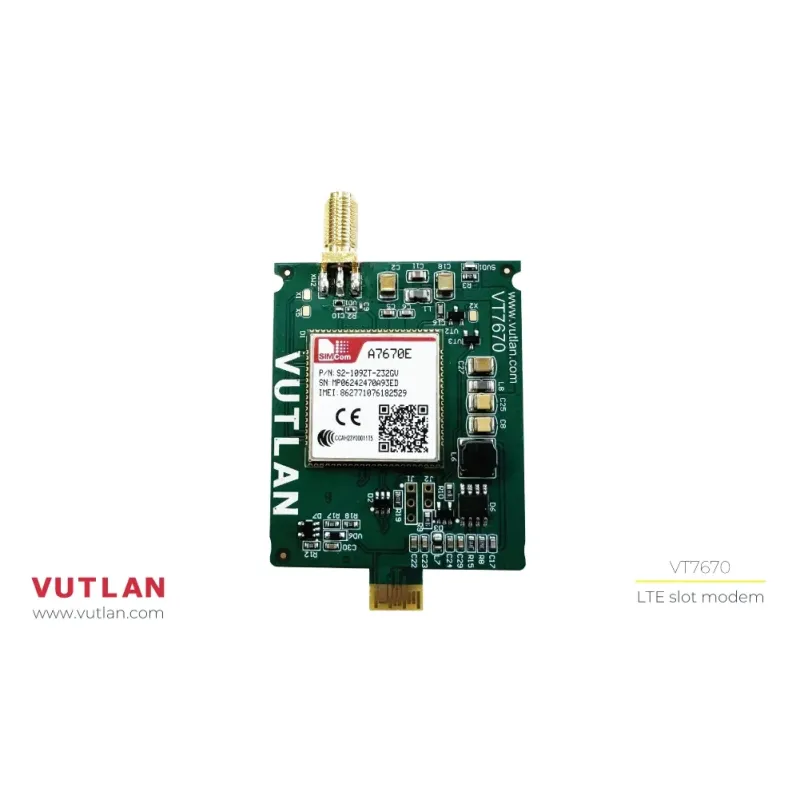

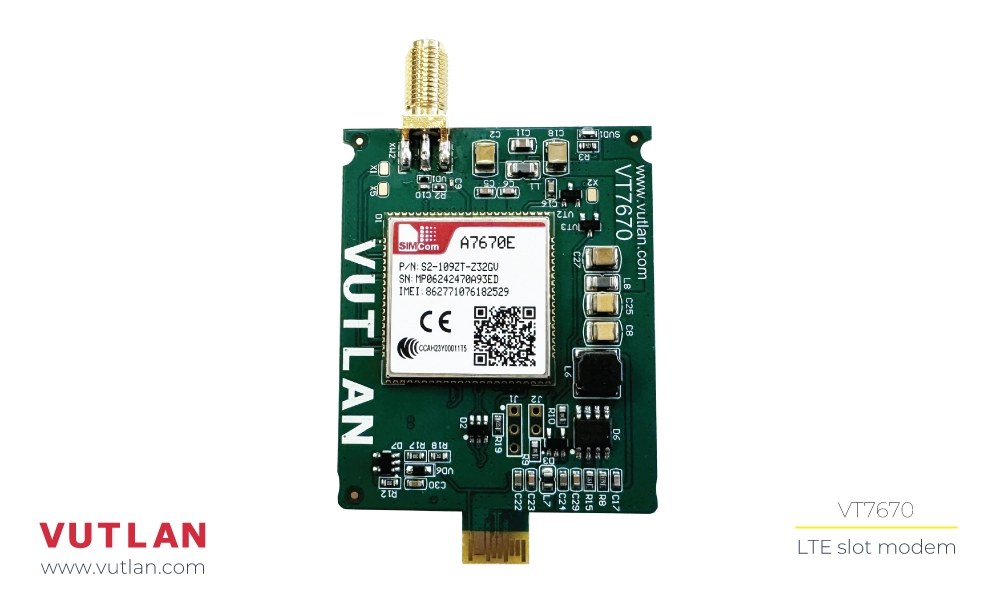

Chip:
SIMCom, A7670E
Frequency Bands:
LTE-FDD: B1/B3/B5/B7/B8/B20 GSM: 900/1800MHz
Temperature:
-40℃ ~ +85℃
LTE(Mbps):
10(DL)/5(UL)
GPRS/EDGE(Kbps):
236.8(DL)/236.8(UL)
Manufactured in:
Slovak Republic, EU. Vutlan s.r.o.
HS code:
9025 11 800
GTIN:
8588009886341
Certification:
CE-RED*/RoHS*/ REACH*
Monitoring systems with modem slot:
The following systems have an expansion slot for the VT7670 4G modem:
