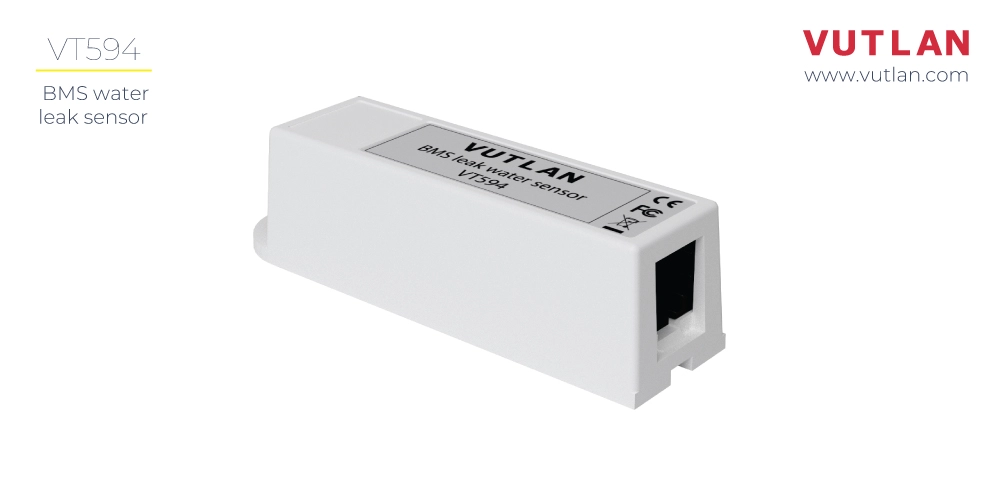

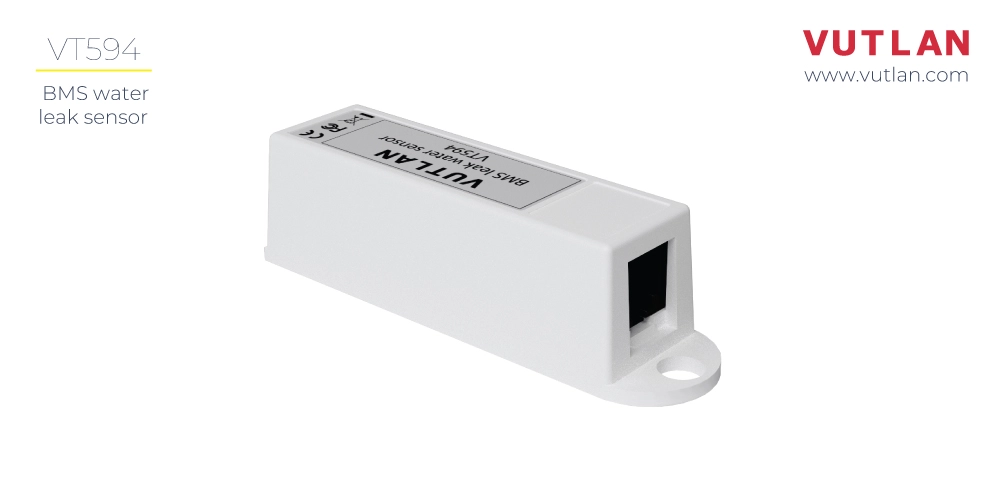

VT594 BMS leak water sensor
Previous
Next
Description

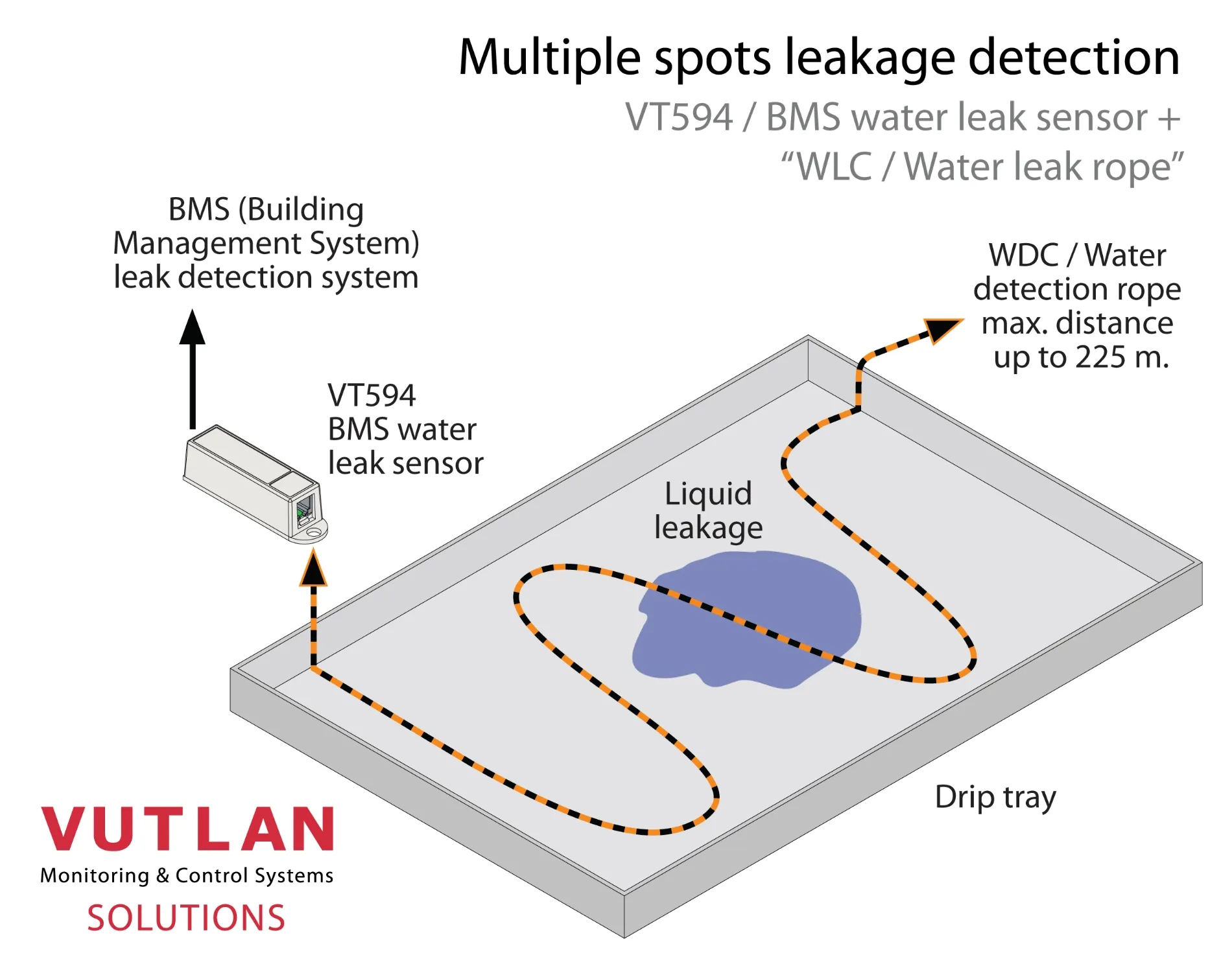

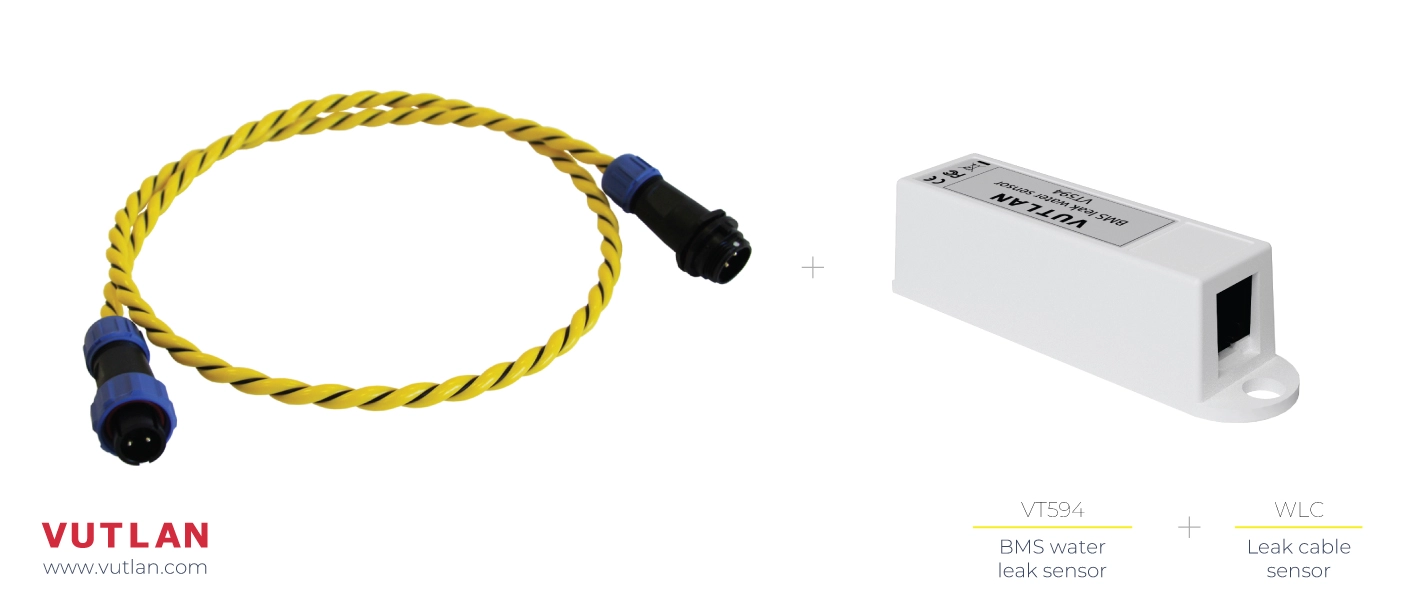

The VT594 Water Leak Sensor is designed for integration with Building Management Systems (BMS) to provide continuous monitoring for water leaks by measuring the resistance drop in the connected WLC Leak Detection Cable. This sensor requires a WLC Leak Detection Cable, which must be ordered separately and is available in a variety of lengths.
This sensor can not be connected to Vutlan controllers. It is only designed for 3rd party Building Management Systems (BMS).
Can be supplied in 12V or 24V versions!
Models
VT594-12:
12V DC power supply voltage
VT594-24:
24V DC power supply voltage

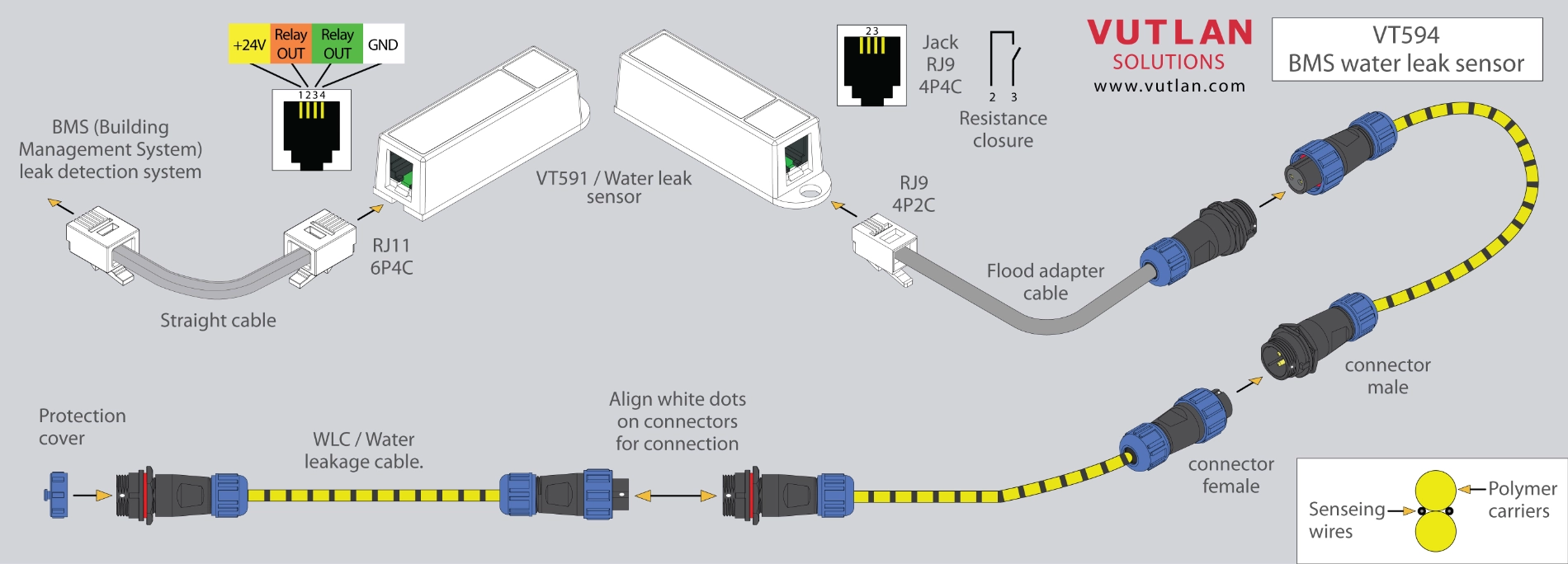

Required Components
Use cases
The VT594 Water Leak Sensor is used for:

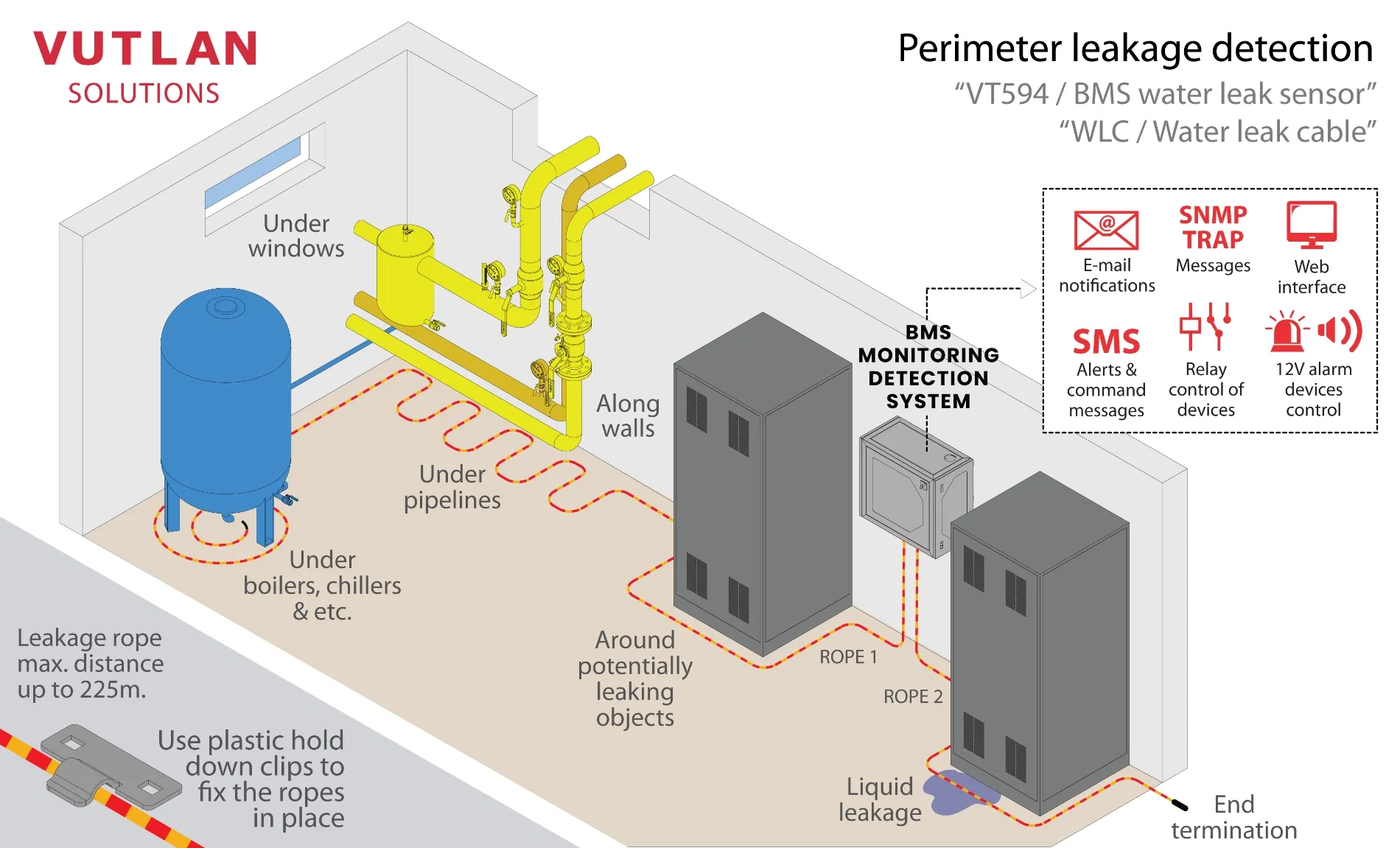

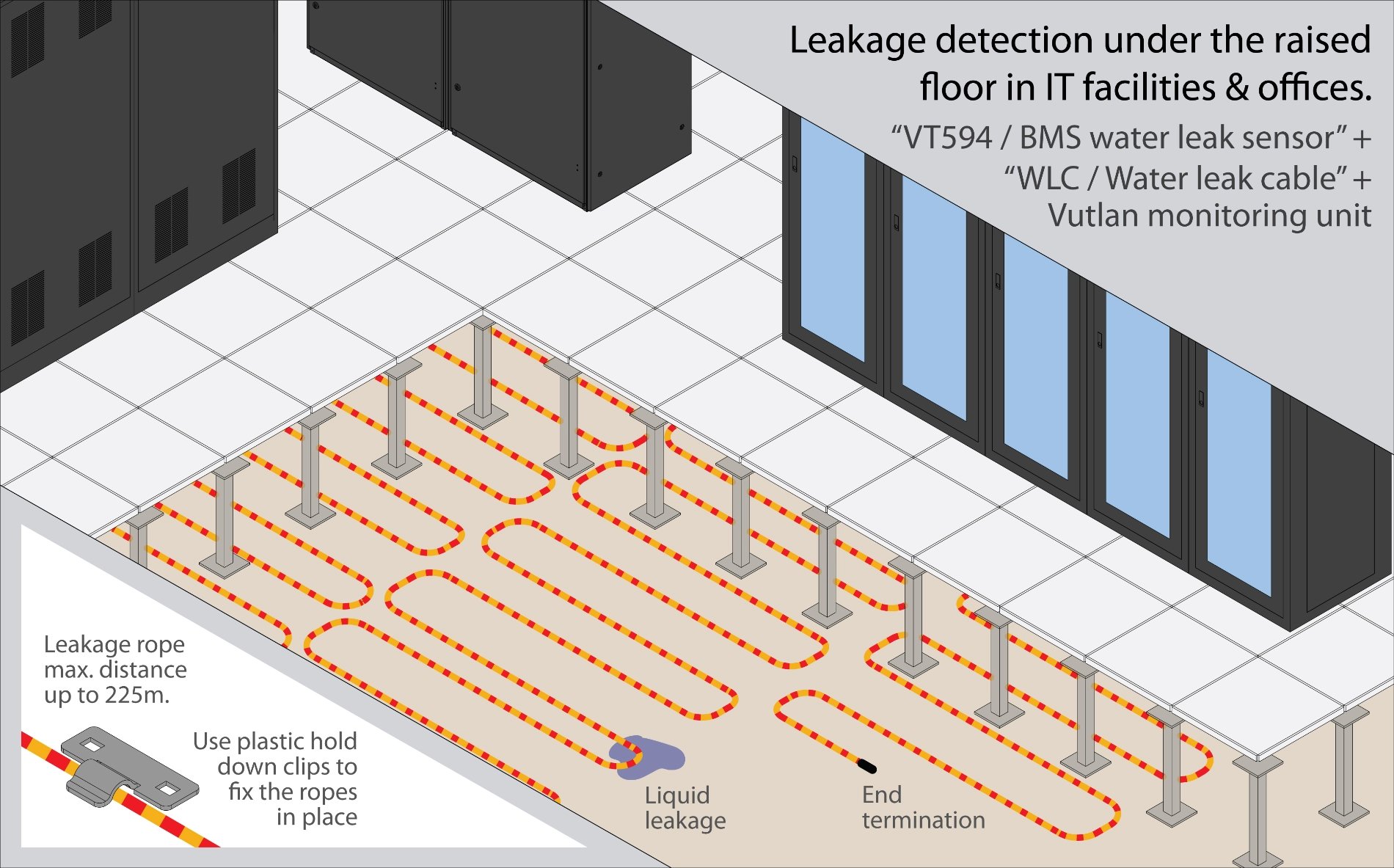

- Leak or Flood Detection: Monitor areas prone to water leaks to detect moisture before damage occurs.
- Integration with Building Management Systems (BMS): Easily integrates with BMS.
