LR800 Gateway Server
LoRaWAN compatible.
Bring all your sensors together with long-range connectivity and real-time data - with built-in storage, alerts, and control.
- Long-range LoRaWAN connectivity
- Private LoRaWAN Network
- Supports large-scale sensor networks
- Real-time data and instant alerts
- Centralized monitoring in one interface
- Frequency Band EU868
- LTE modem extension (3G/4G network reservation)
Unleash Powerful Connectivity
The LR800 gateway server delivers reliable LoRa coverage across large environments, connecting extensive sensor networks with stability and precision. Its robust signal penetration ensures seamless communication over long distances - all while collecting, storing, and forwarding data effortlessly.
- Coverage: Up to 1 km line-of-sight
- Supports dozens of sensors simultaneously
- Real-time alerts and control

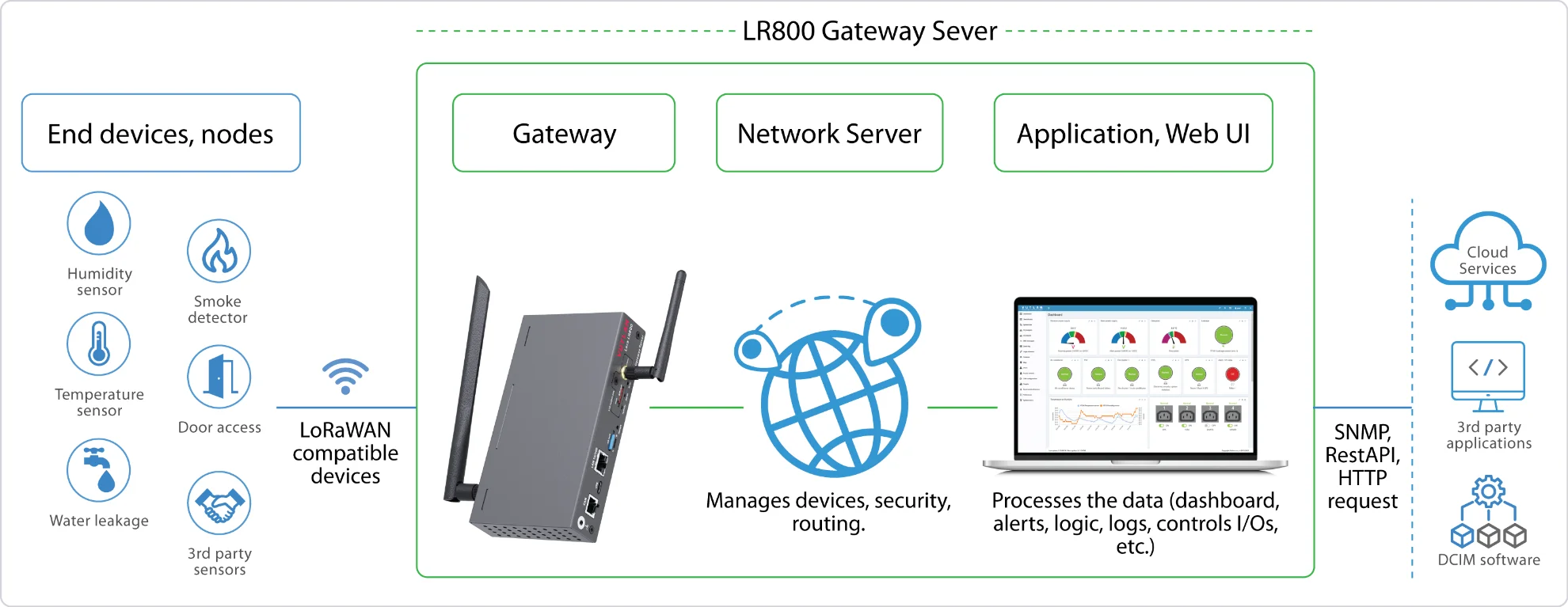

All-in-One Solution
The LR800 stands out from typical LoRaWAN gateways by integrating the entire LoRaWAN stack into a single device. Unlike conventional solutions that require external network and application servers, the LR800 includes a built-in gateway, ChirpStack network server, application server, and web interface for building a Private LoRaWAN Network.
Penetrating Obstructions
Through and Through
Ensure reliable communication through complex building structures—seamlessly reaching up to three floors above and below for consistent performance across multi-level environments.
Advanced technology
From sensing to connecting, from data to the power that transforms the world, what we do matters.
Triple Power Redundancy
Equipped with dual 12V DC inputs and a 9–11.1V battery backup, the LR800 server gateway ensures continuous, reliable operation even during power interruptions.
.webp)
Redundant Ethernet
Featuring a LAN port and support for the VT7670 4G LTE extension modem, the LR800 ensures reliable connectivity with seamless Ethernet backup.
.webp)
Data Storage Redundancy
With an SD card slot supporting up to 512GB, the LR800 can store logs for up to 3 years while transmitting sensor data, & ensuring reliable local backup.
.webp)

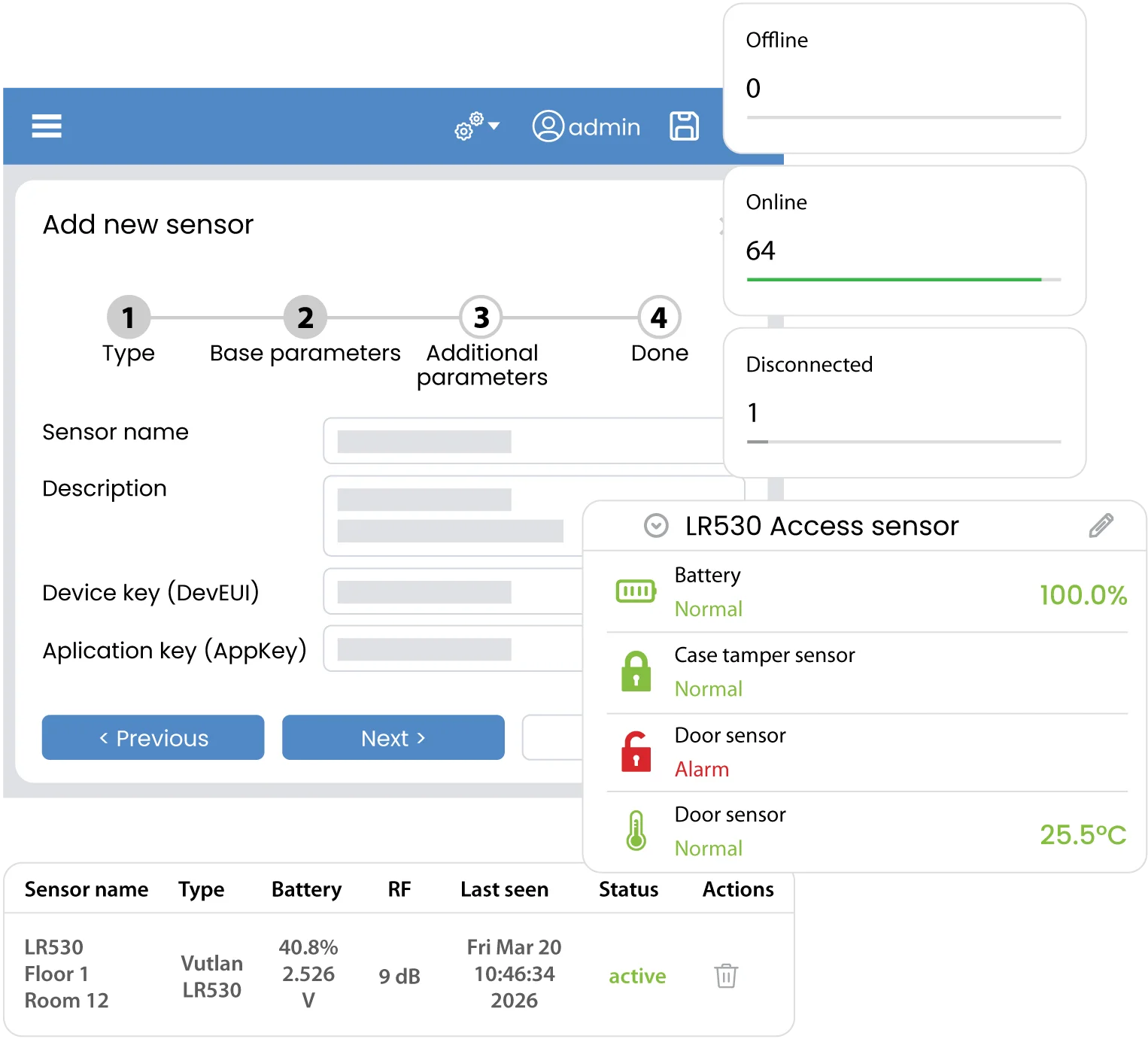

Add Sensors Easily
The LR800 makes adding and configuring LoRaWAN sensors fast and straightforward. With its built-in web interface and integrated application server, devices can be quickly discovered, registered, and managed without complex setup.
Simply scan the QR code on the sensor. Press "add sensor" in LR800 Web UI and follow the configuration wizard.

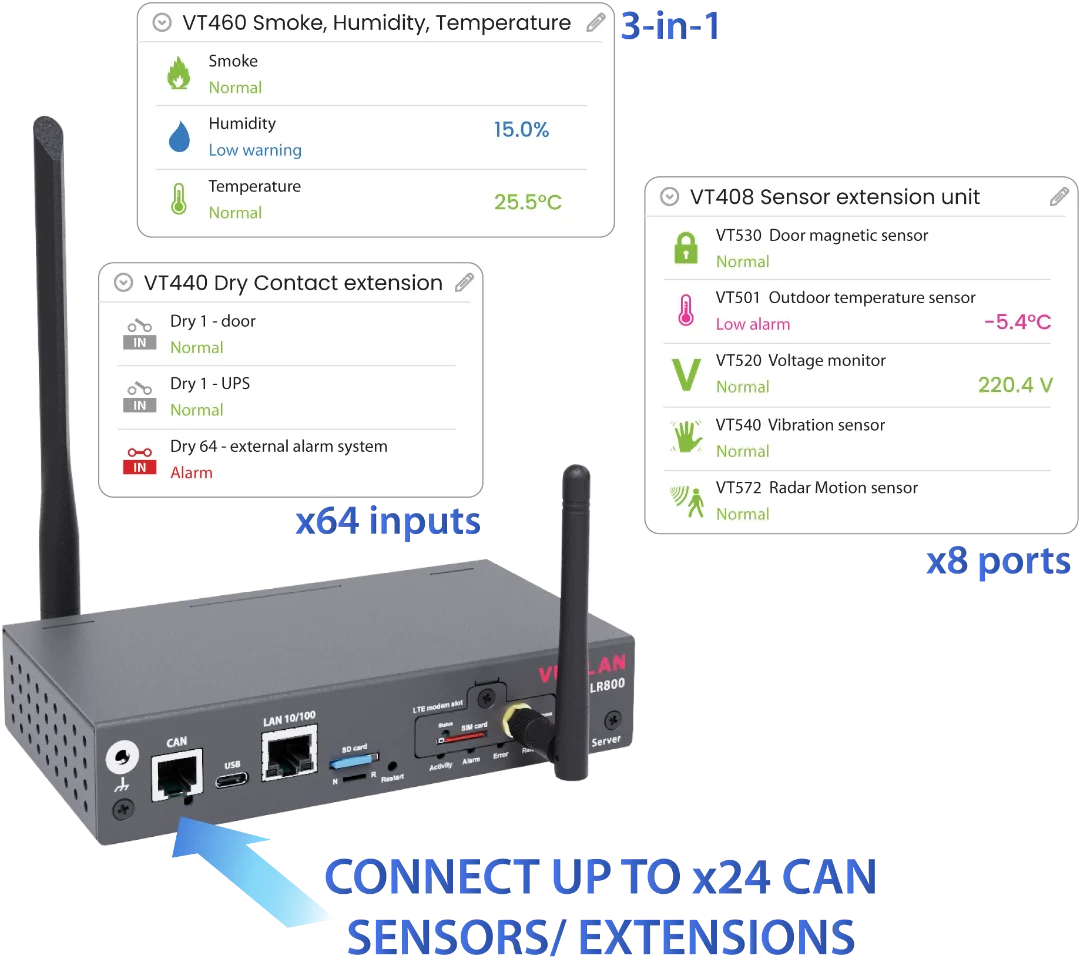

Optional Expansion via CAN Bus
Expand your setup using the LR800’s CAN port by connecting additional sensors and extension modules in a single chain. This optional capability lets you adapt the system to your specific requirements when needed.
- Connect up to 24 CAN devices/sensors in one CAN chain
- Add VT408 Analog Sensor Extension Modules
- Add VT440 Dry Contact Extension Modules

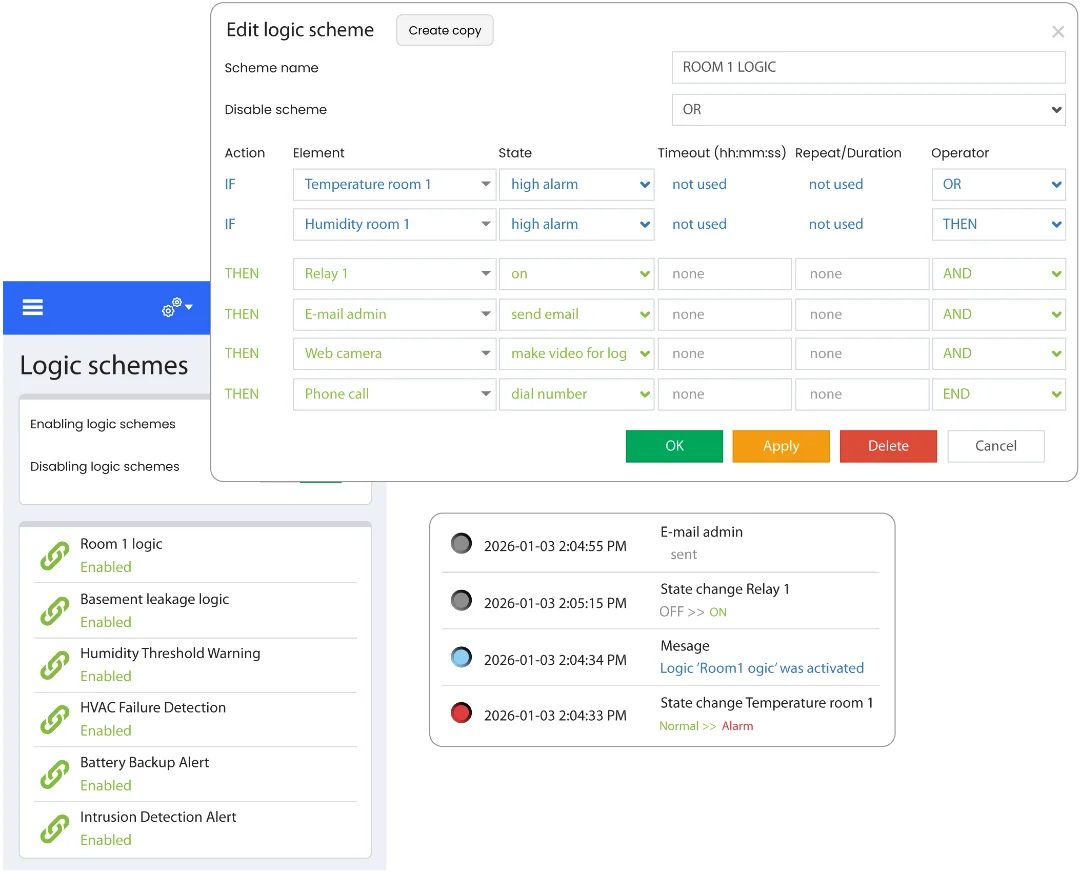

Automated Event Action Response
Logic diagrams enable automated workflows that instantly respond to system events. By defining custom conditions and triggers, the LR800 gateway server can take immediate action without manual intervention.
The system delivers real-time notifications via Email, Push, Telegram, SMS, Syslog, Event Log, SNMP Trap, and SNMP Get, while also triggering physical actions such as signal beacons for on-site alerts.
Physical Description
-02.webp)
-01.webp)

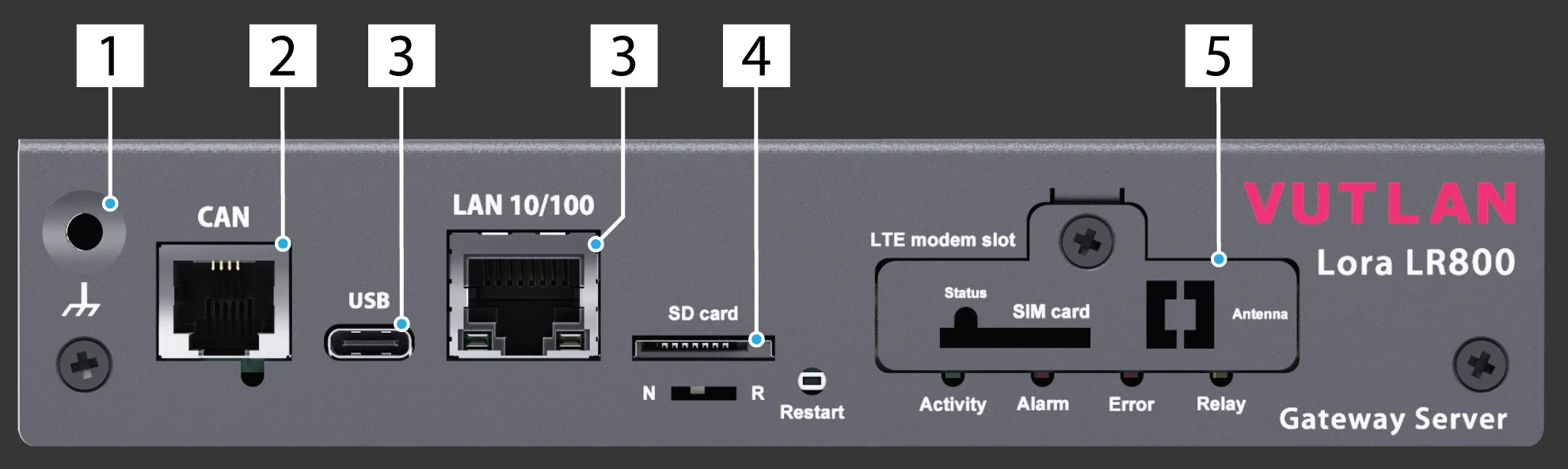

1. Chassis grounding
Immunity against RF disturbances. M4 thread.
2. CAN port
Connect up to x24 CAN extensions or sensors in a chain.
3. LAN port
10/100 Base-T Ethernet port
4. Micro SD card slot
For data storage of logs (SDXC up to 512 Gb, up to x3 years) or system update.
5. Modem slot
(ordered separately)
(ordered separately)
Allows to receive and send messages (2G, 3G). Provides Ethernet over LTE (4G).

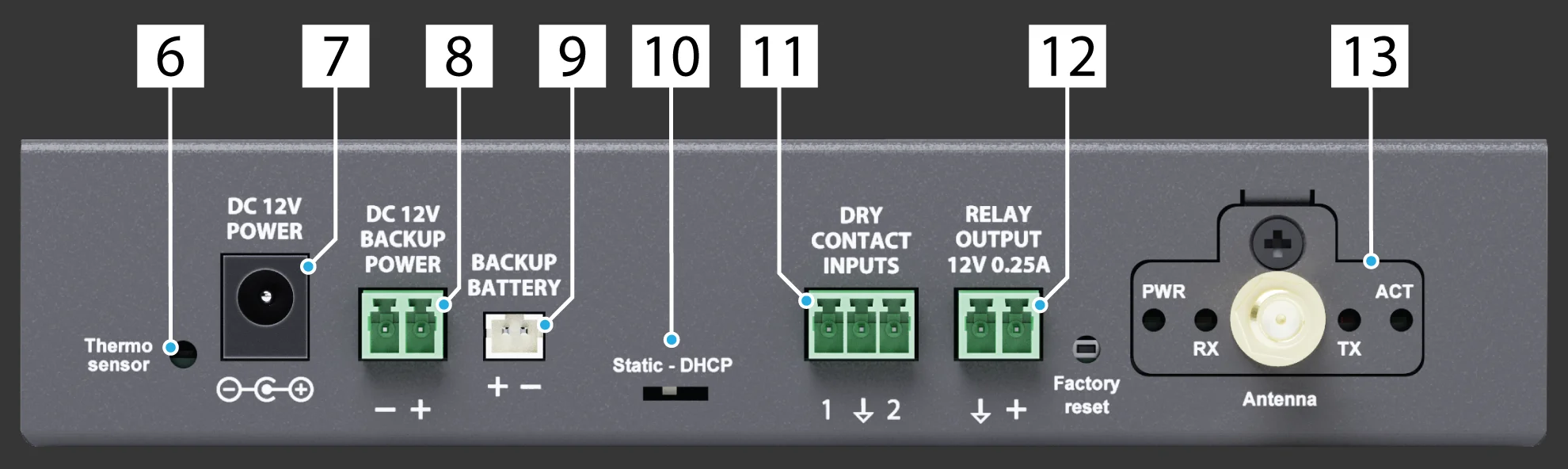

6. Temperature sensor
Internal sensor, accuracy +/- 1 °C.
7. Main power input
12 V, DC (⌀ 5.5/2.1mm)
8. Reserve power input:
12V, DC (3.81 mm, 2P)
9. Redundant battery:
9-11.1 V, DC (PH-2AW connector, 2mm, 2P)
10. Static - DHCP
Switch to select IP mode: Static (manual IP settings) or DHCP (automatic network configuration).
11. Dry contact inputs
x2 Digital inputs (Type IN) for connecting dry contact sensors or receiving alert signals from external equipment.
12. 12V electronic relays
For controlling x2 low-power devices, i.e. alarm beacons, a siren and/or strobe light, or other.
13. LoRa RF module
For communicating with LoRa devices & sensors.
Specifications
Hardware system
Device Management:
Web UI, SNMP, Rest API
OS:
Linux, Kernel 6.1.0
CPU:
Dual core ARM, 720 Mhz
Memory:
256 MB
Max. sensors:
100 physical sensors
Max. elements:
700 virtual elements
Timer:
Built-in watchdog
Clock:
Built-in
LoRaWAN compatability
Frequency band:
EU868
Sensor activation:
OTAA (Over-The-Air Activation)
Lora channels:
8
Range:
1 km (line-of-sight), 3.14km² (area)
Sensitivity:
Up to -139dBm Sensitivity, 12kHz
Protocol:
LoRaWAN Class-A
MAC version 1.0, 1.0.1, 1.0.2, 1.0.3, 1.0.4
MAC version 1.0, 1.0.1, 1.0.2, 1.0.3, 1.0.4
* This device supports the LoRaWAN® communication protocol for long-range IoT connectivity. LoRaWAN® is a trademark of the LoRa Alliance®. Vutlan is not affiliated with or endorsed by the LoRa Alliance.
Cellular interface
(purchased separately)
(purchased separately)
Order options:
VT7670E (EU) or VT7670G (global)
Used for:
Ethernet network reservation, SMS and Phone alert notification
Modem modes:
Gateway: Internet access
Access: Internet access over LTE
SMS: SMS notifications, SMS bot for WebUI control
Access: Internet access over LTE
SMS: SMS notifications, SMS bot for WebUI control
System elements
Alert types:
Email, Telegram, HTTP request, FTP log, Syslog, SMTP, SNMP Traps, Web-to-SMS
Virtual sensors:
PING, SNMP GET, Timer, Trigger, Math element
Logic schemes:
Set automatic actions to events, e.g. notifications or relay switching
IP cameras:
Max. x4, view only
Modbus TCP:
Connect 3rd party meters/devices/sensors over LAN.
Power
Energy efficiency:
Grad A, EU energy lvel
Fuse:
PCT, at the inlet
Power consumption:
Minimum 1 W, Maximum 10 W
Power supply voltage sensors:
Main and reserve power inputs. Accuracy (1%)
Environmental
Operating temperature:
-10 to 70 °C
Storage temperature:
–25 to 85 °C
Operating humidity:
0 to 90 %, non-condensing
Storage humidity:
0 to 95 %, non-condensing
Networking / Protocol support
Network protocols:
LoRaWAN; DHCP; HTTP; HTTPS; SNMP v1, v2c, v3; SMTP; FTP; Syslog; TLS (v1.0, v1.1, v1.2, v1.3)
Modbus TCP / IP:
Connect 3rd party meters/devices/sensors over LAN.
Static routing:
Fixed, manual paths for data packets in a network.
Dynamic DynDNS
Updates a domain name with a device’s changing IP address, keeping it reachable.
RADIUS auth.:
Central server verifies user credentials before granting network access.
VPN:
Secure data communications
SSL installation:
OpenSSL 1.1.1g
Physical Characteristics
Installation:
Desktop, Wall
Ingress Protection:
IP50
Casing:
Sheet metal
Case dimensions:
W164mm, H33.1mm, D89.4mm
Weight:
0,7 kg
Other Features
Origin of goods:
Made in the EU
EAN code:
8588009886815
HS Code:
8517.62.00
Approvals
Environment:
RoHS
Regulatory:
CE, CE(RED)
