Description

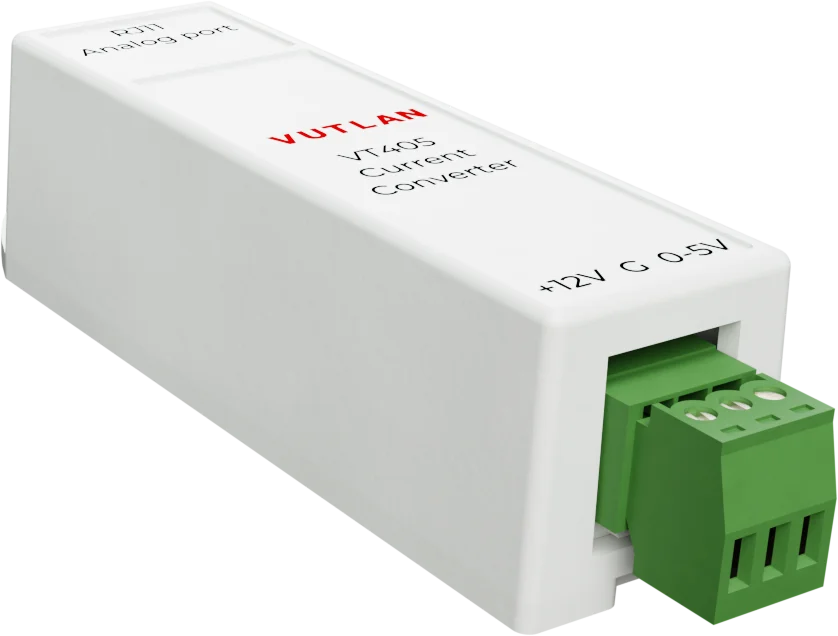

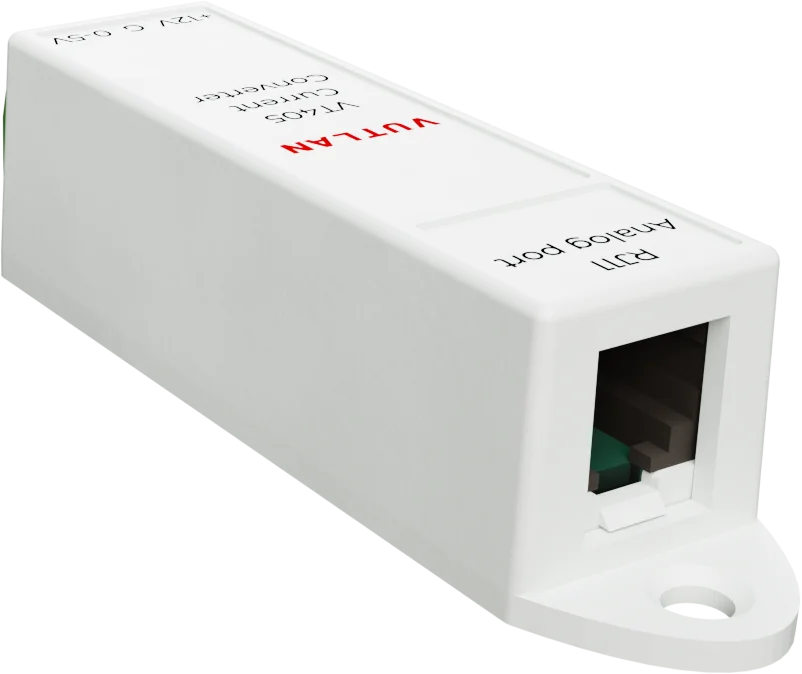

The VT405 Current converter transmits measured current data from the Hall meters to the Vutlan monitoring device.

This plug-and-play transceiver easily connects to any analog port of Vutlan monitoring units or VT408 analog port extension.

Monitoring AC current

  • Electrical Panel Current Monitoring: Measures load current from Hall effect transducers installed on feeders and circuits, enabling remote supervision of power consumption and overload detection
  • Industrial Equipment Monitoring: Supervises motors, pumps, compressors, and production machinery to detect operational changes and unexpected load variations.
  • Overload Detection: Generates alarms when current exceeds predefined thresholds, helping prevent equipment damage and power interruptions.

Monitoring DC Current

  • DC Power Distribution Monitoring: Measures load current from DC Hall effect transducers installed on battery strings, DC busbars, and distribution lines, enabling remote supervision of power consumption, overload detection, and circuit health.
  • Battery System Current Monitoring: Monitors charge and discharge currents in battery banks, UPS systems, and energy storage systems to track performance, detect abnormal current flow, and optimize battery life.
  • DC Equipment Monitoring: Supervises telecom rectifiers, DC motors, solar controllers, EV chargers, and industrial DC-powered equipment to detect operational changes, unexpected load variations, and fault conditions. You’re out of messages with the most advance

Order Options / Models

VT405 AC:
For monitoring AC Current meters
VT405 DC:
For monitoring DC Current meters

Required Components

B2A AC Current Tranceiver
The B2A AC is a simple open-loop AC ammeter capable of measuring currents from 0A to 5, 10, 20, 30, 50A.
B2A AC Product page
K6A AC Current Tranceiver
The B2A AC is a simple open-loop AC ammeter capable of measuring currents from 0A to 5, 10, 20, 30, 50A.
K6A AC Product page
K6D DC Current Tranceiver
The B2A AC is a simple open-loop AC ammeter capable of measuring currents from 0A to 5, 10, 20, 30, 50A.
K6D DC Product page

Sensor features

Vutlan sensors are designed to deliver reliable, real-time environmental monitoring with flexible configuration and clear data visualization. Each sensor integrates seamlessly into your system, providing precise measurements and actionable insights.

- Logic schemes
- Create automated actions based on defined conditions
- Dashboard overview
- Thresholds
- Graphs and Logging

Web UI customizable dashboard
Sensor data logging
High temperature notification alarm
Sensor graph

Add more analog sensors
using VT408 extension unit.

Each VT408 extension unit connected to the Vutlan monitoring device via the CAN bus adds the ability to connect 8 analog sensors to the system.

Sensors connected to the unit are automatically displayed in the system.

VT408 product page
VT408 online datasheet
How to connect analog sensors
Analog sensors API

Technical Specification

Function & Purpose
Detects:
Current via Hall-effect transducer/meter.
Type:
Analog, plug-and-play, Transmitter/converter
Accuracy:
1 %
Communications
Input
3-pin power terminal, pitch 2.54 mm
Output:
RJ11 6p4c
Max. distance:
50 m from Vutlan monitoring unit or the VT408 extension unit
Environmental
Working temperature range:
−10 to +8 °С
Humidity operating range:
0 to 95% RH (Non-Condensing)
Power Requirement
Power consumption:
1 mW
Power:
Power using analog port from Vutlan monitoring unit or VT408 analog port extenion unit.
Max. distance from the monitoring unit:
225m
Mechanics
Mounting options:
Desktop, Wall mount
Dimensions:
80 × 19 × 20 mm (LxWxH)
Sensor weight:
20 g
General
Origin:
Made in EU
Manufactured by:
Vutlan s.r.o.
HS code:
9030 33 100
GTIN:
8588009886839
Warranty:
90 days
