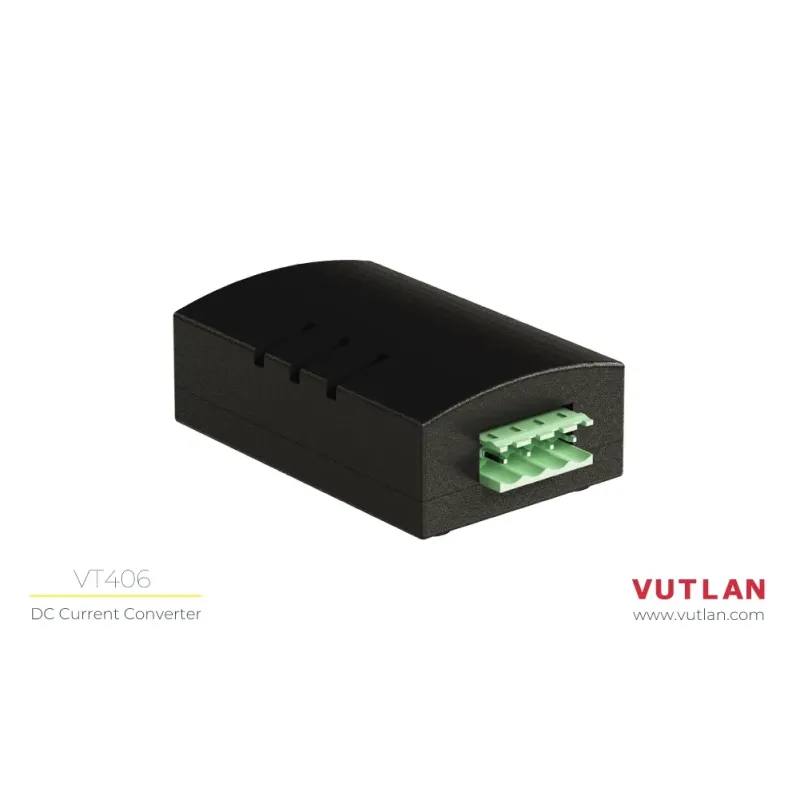

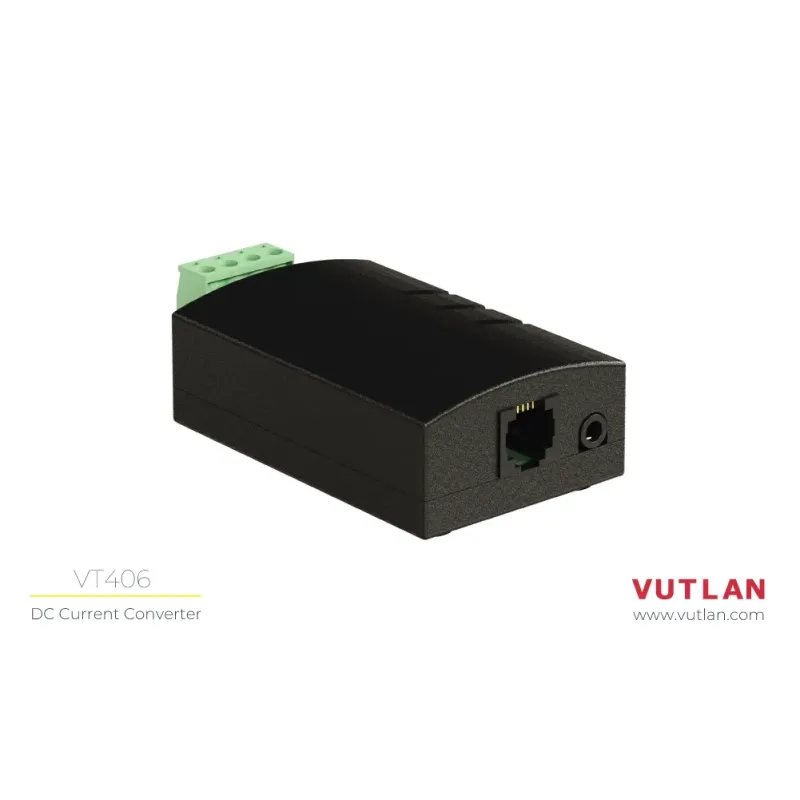

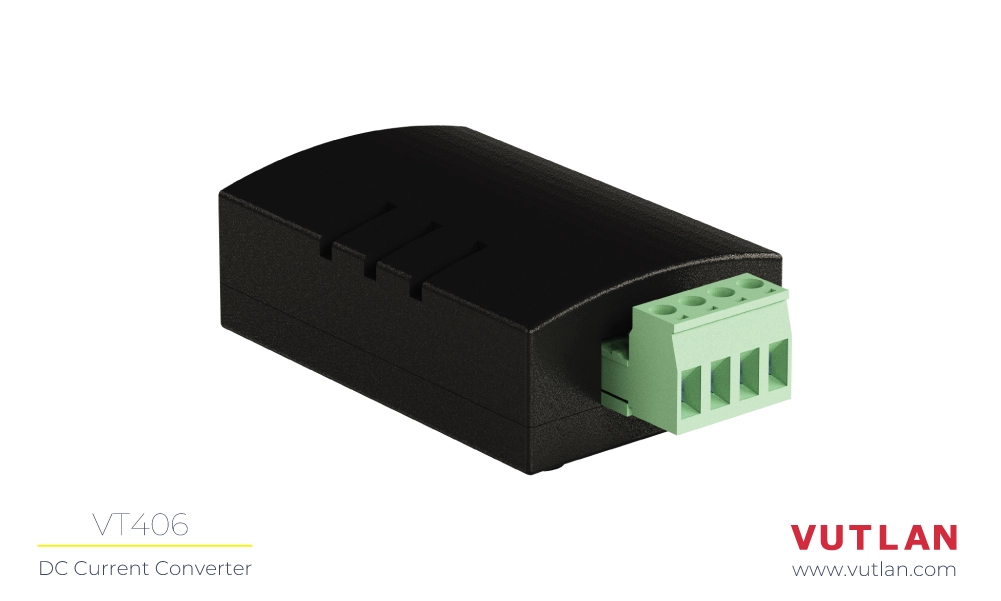

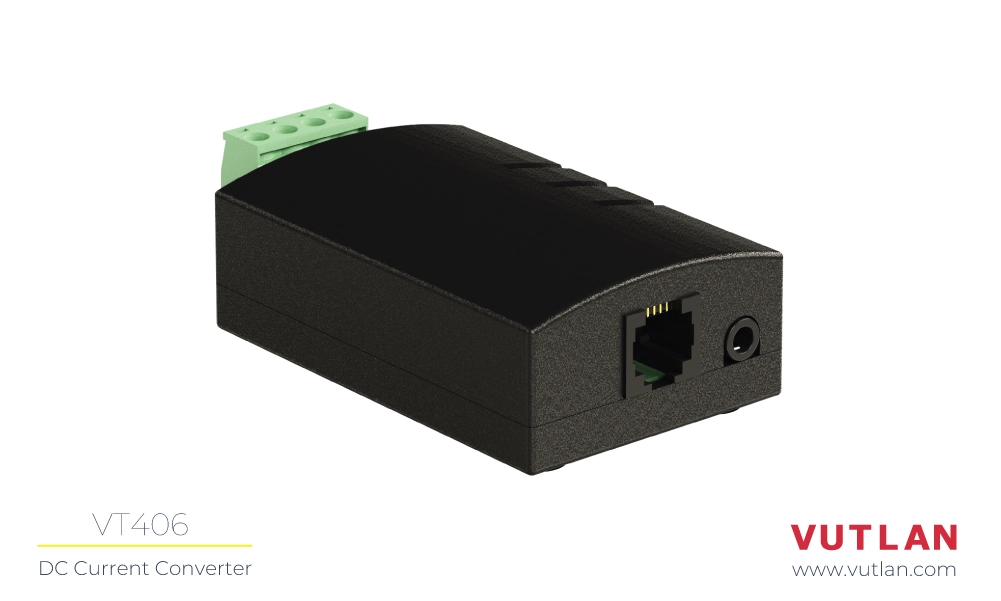

VT406 DC Current converter
Previous
Next
Description

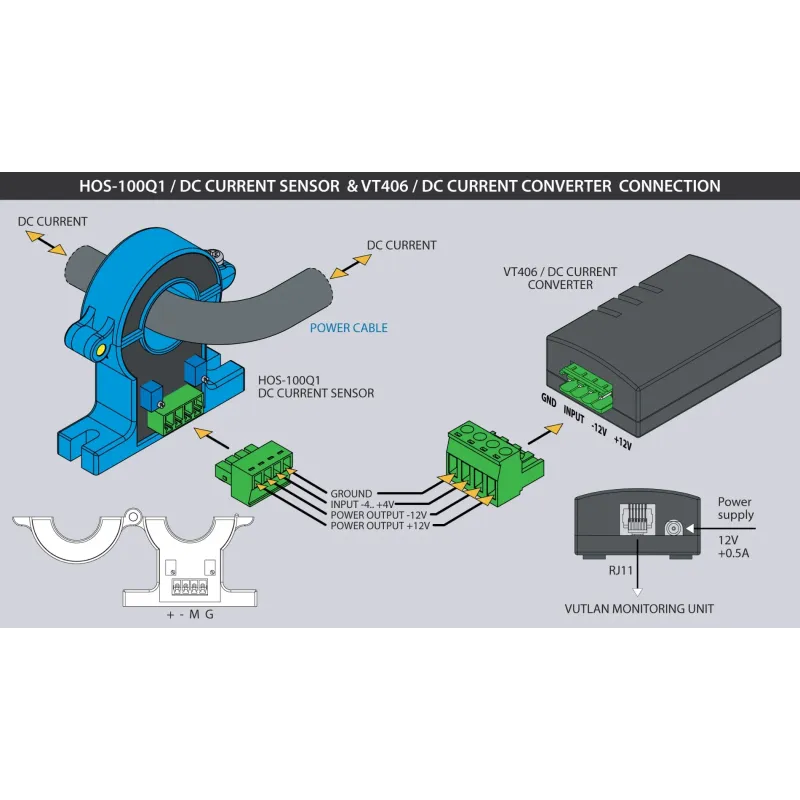

The VT406 / DC current transceiver transmits measured current data from the HOS-100Q1 ammeter to the Vutlan monitoring device.
This plug-and-play transceiver easily connects to any analog port of Vutlan monitoring devices. The HOS-100Q1 is a simple open-loop DC ammeter capable of measuring DC currents in the range of ±100A.
The maximum amount of sensors can be extended using the VT408 / Sensor extension unit.
Required Components

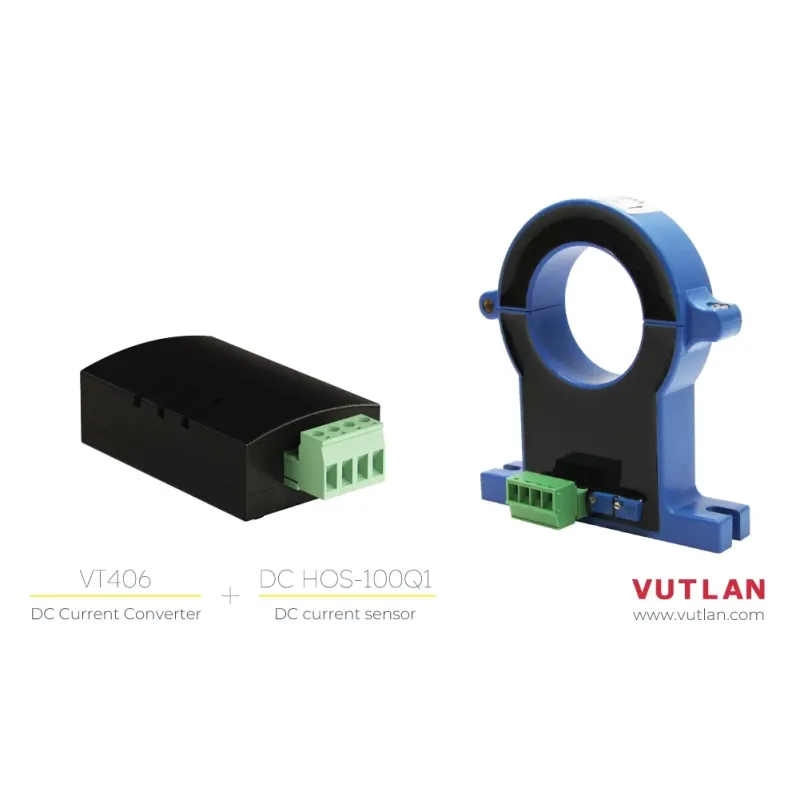

HOS-100Q1 current transceiver
The HOS-100Q1 is a simple open-loop DC transducer capable of measuring DC currents in the range of ±100A.
Specifications
Device type:
Vutlan analog sensor, plug-and-play
Usage:
Adapter converts for transducer data to Vutlan monitoring system
Measured input range:
Measured range: -4 ...+4 V
Accuracy:
1%

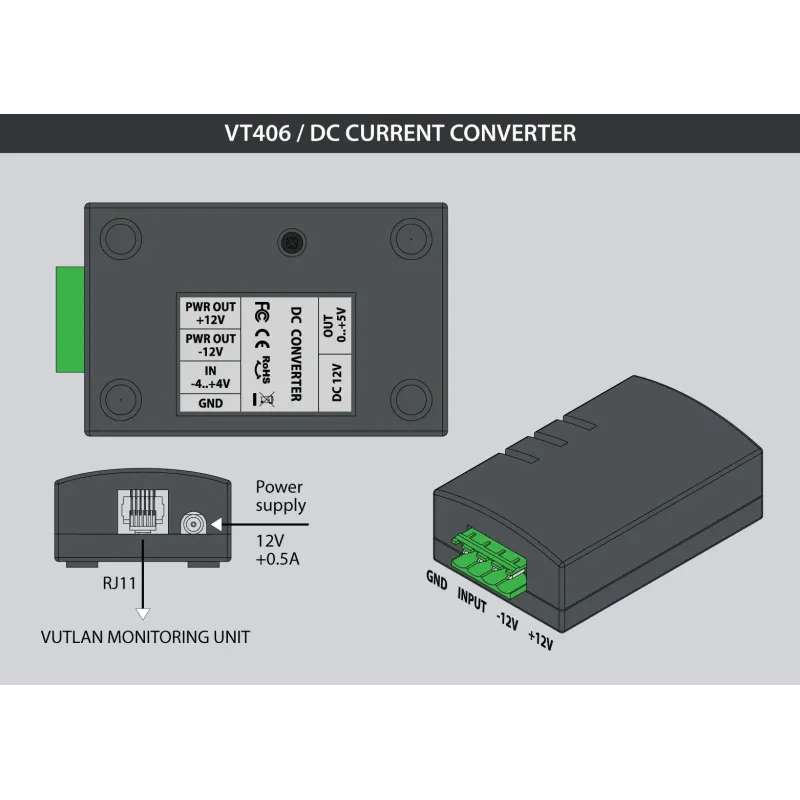

Output:

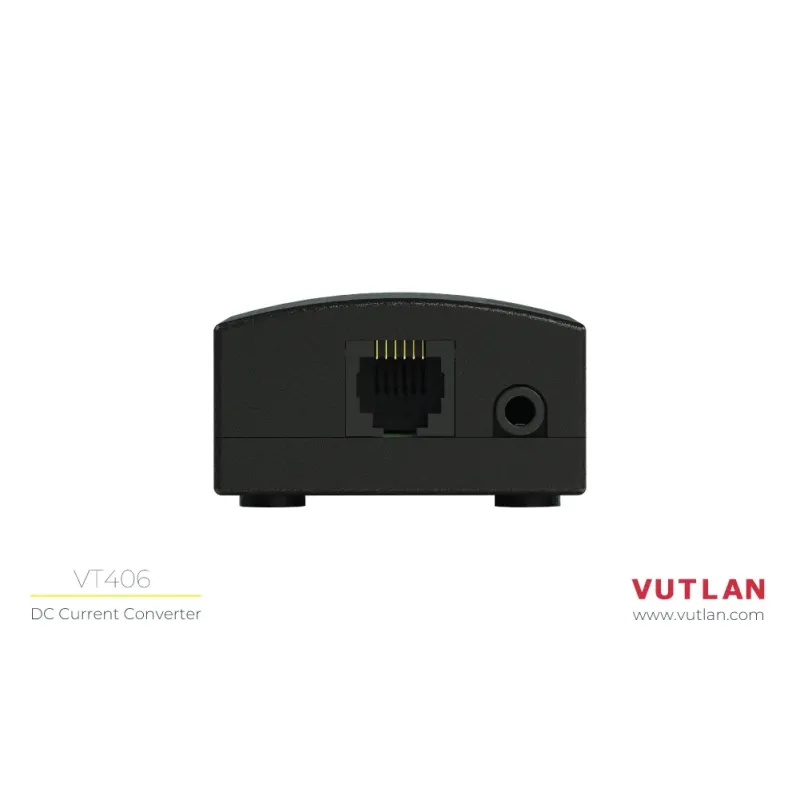

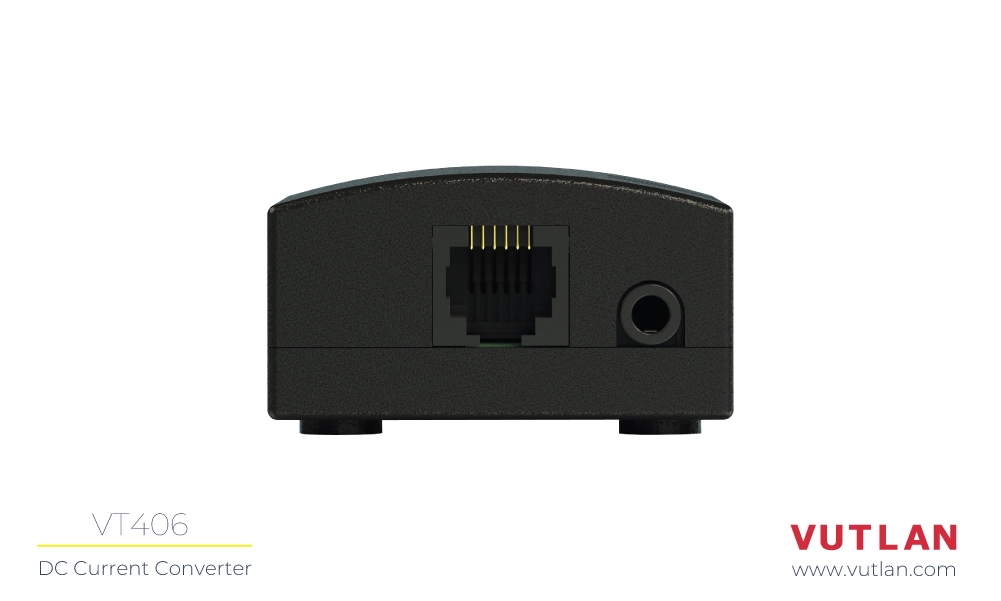

x1 RJ11 6P4C
Inputs:

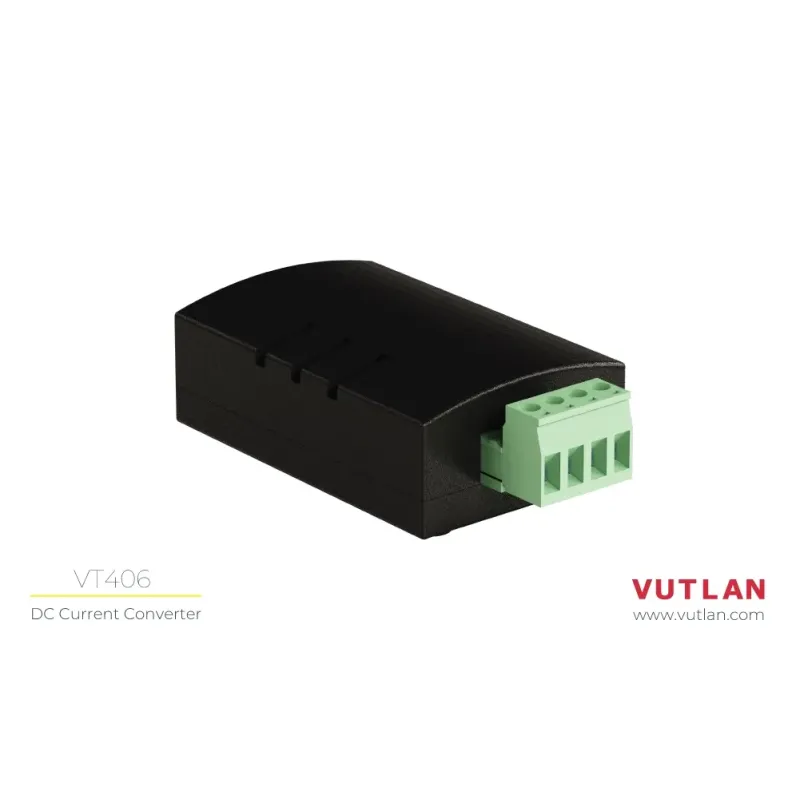

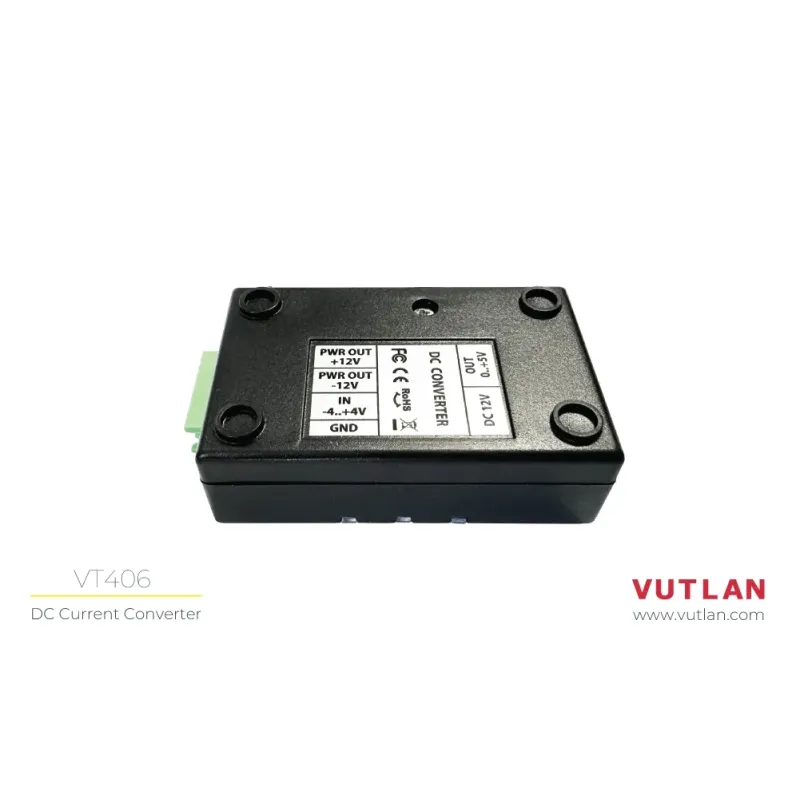

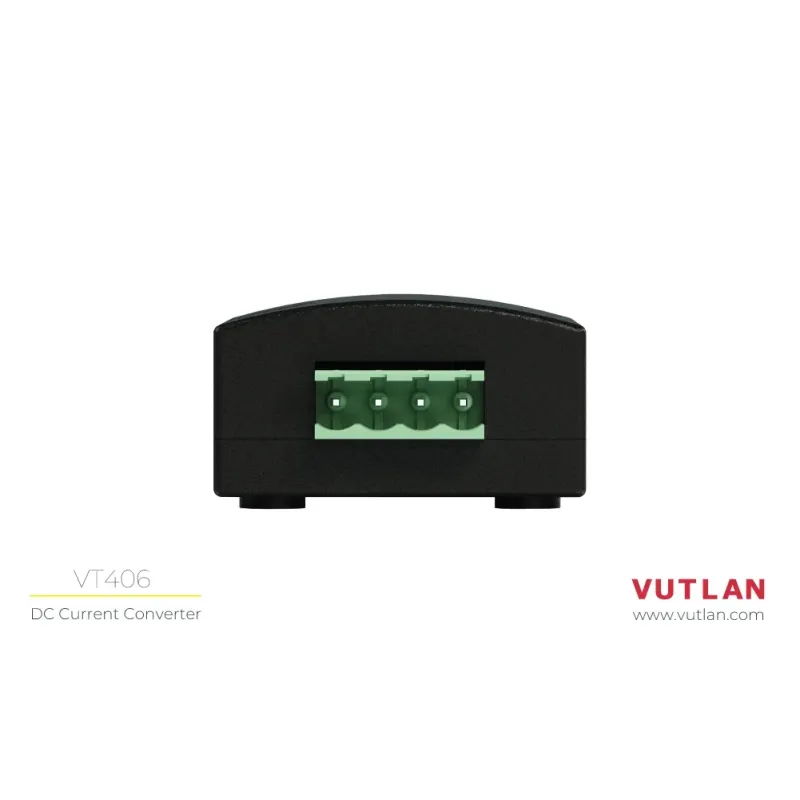

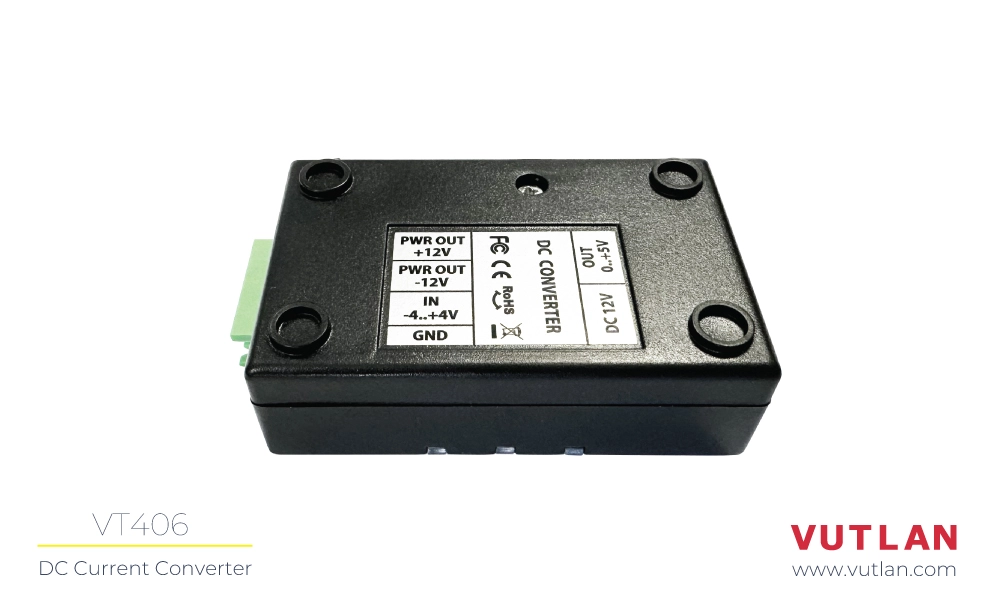

4 pin terminal, pitch 5.08mm; GND, Input, -12V, +12V
Max. distance:
50 m from monitoring system or VT408 extension
Power:
12 V, 1A
Operating temperature:
-10° C to +80° C
Operating humidity:
Min. 5% - Max. 95% (Non-Condensing)
Supplied cable:
2 m
Mounting:
Wall mount, Desktop
Dimensions:
68 × 47 x 26 mm
HS Code:
9030 33 70
GTIN:
8588009886563
Use cases
Here are additional use cases for the HOS-100Q1 DC current transducer and the VT406 DC current transceiver:
- Solar Power Monitoring: Used to track the current flowing between solar panels and batteries or inverters in photovoltaic systems. The HOS-100Q1 monitors the DC current from solar arrays, and the VT406 transfers the data to the monitoring system for performance analysis and fault detection.
- Wind Power Systems: In wind turbines, the DC current generated is monitored to ensure proper charging of storage systems or grid feedback, helping to maintain optimal system performance.
- Electric Vehicle (EV) Charging Stations: Monitoring the DC current flow between the grid and electric vehicles during the charging process to ensure safe and efficient charging. Abnormalities can be detected, preventing overcharging or electrical faults in the charging system.
- Battery Discharge Monitoring: Measure the DC current to detect how much current is being drawn from batteries in backup power systems, such as uninterruptible power supplies (UPS), or electric vehicle batteries.

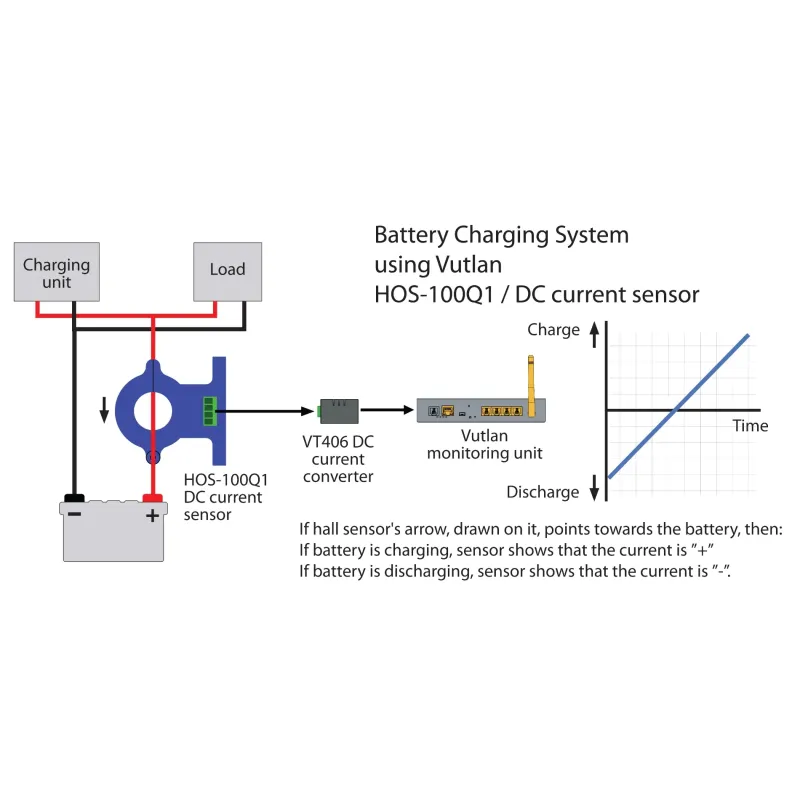

- Battery Charging Control: Ensuring that charging currents are within safe limits, optimizing the lifespan of the batteries and ensuring their reliability.
- Power Monitoring: The combination of HOS-100Q1 and VT406 helps monitor the power consumption of critical infrastructure in data centers, particularly in high-density server environments. It ensures that power draw from servers, cooling systems, and other equipment stays within optimal limits.
- Power Backup Systems: In telecom facilities, where uninterrupted power is crucial, HOS-100Q1 can monitor the current flow from backup batteries to ensure proper performance during power outages, with VT406 transferring that data for remote monitoring.
- Motor Current Monitoring: In automation and robotics, monitoring the DC current supplied to motors can help in predictive maintenance. The HOS-100Q1 ensures that motors operate within safe current ranges, while the VT406 helps integrate this data into a larger control system.
- Process Control Systems: The transducer can be used in manufacturing plants to monitor currents in machinery, ensuring they are operating efficiently without overloading.
- Monitoring the power supply for heating, ventilation, and air conditioning systems in large commercial or industrial buildings. This ensures that the current load remains stable and identifies potential issues before equipment fails.
Previous
Next
Sensor features
Logic schemes
Logical schemes are used to set automatic actions in response to events occurring in the system.
Dashboard view
The monitoring interface can be customized for each user.
There are widgets with multifunctional graphs and gauges.
Thresholds
Each sensor has 5 alarm thresholds for logical control and notifications.
Graphs and Logging
Vutlan supports recording to SD card and USB stick.
Data from the entire system loaded with sensors is stored for up to 3 years.
Previous
Next
Add more analog sensors using VT408 extension unit.
Each VT408 extension unit connected to the Vutlan monitoring device via the CAN bus adds the ability to connect 8 analog sensors to the system.
Sensors connected to the unit are automatically displayed in the system.
Systems with analog ports:
To read data from the analog sensors, you need Vutlan monitoring and control system. All the following monitoring & control systems have a different amount of analog ports.
