VT440 Dry Contacts Unit

€244 Tax included

Description
Models
Accessories
Use cases
Specifications
Features

Description

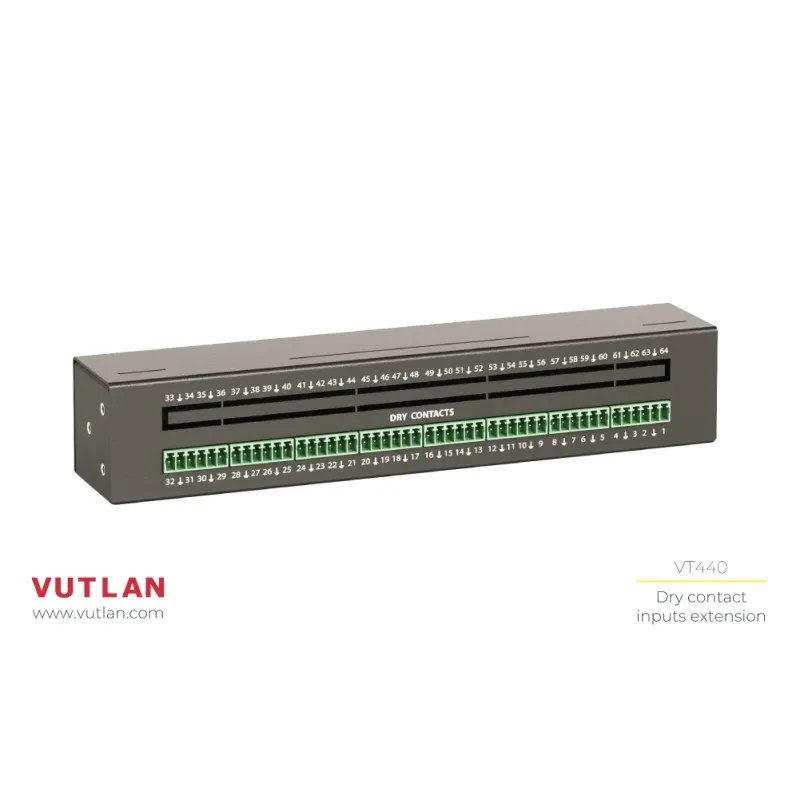

The VT440 expansion module increases the number of dry contacts that can be connected to any Vutlan monitoring device.Each VT440 module has 32 dry contacts, which can be expanded to 64 using the "VT32 / Dry Contact Board".

All connected dry contacts are automatically detected and integrated into the system.

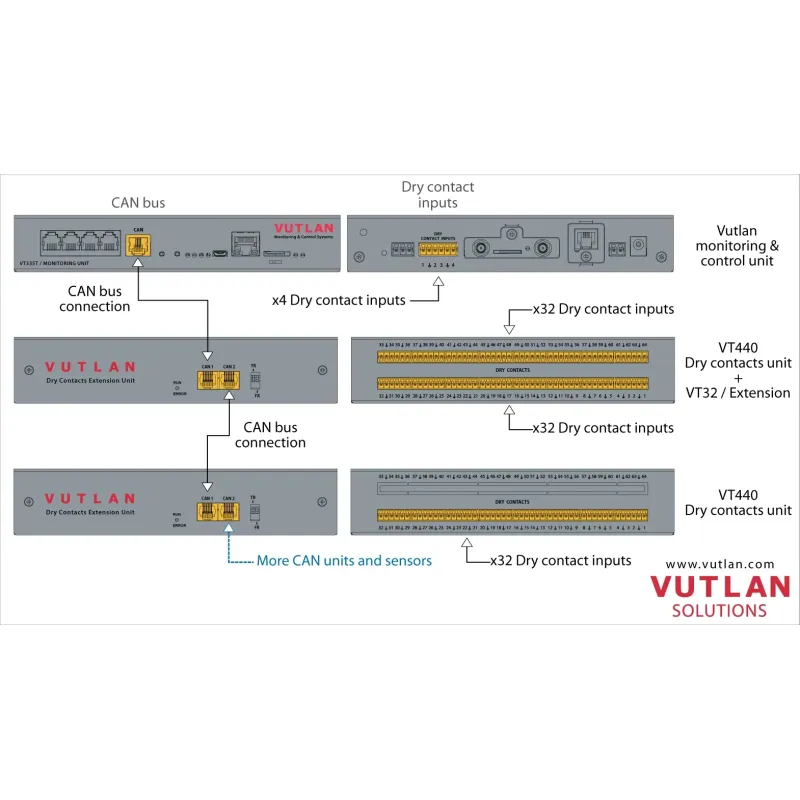

CAN devices can be connected in a chain. CAN-12V-1A / CAN Power Supply has to be used to provide additional power on a CAN bus line.

VT440 Dry Contact Unit - Flyer
VT440 online datasheet
VT440 package content
CE EMC LVD ROHS certificate - LV units
How to connect CAN sensors
How to configure CAN sensors
API: Discrete sensors

Models

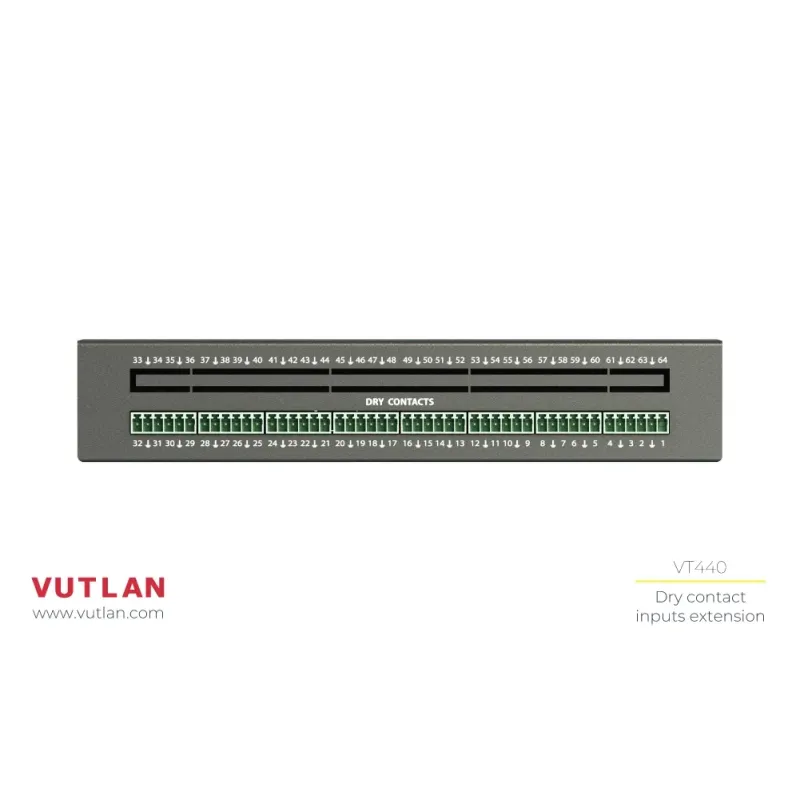

VT440:
A unit has x32 dry contact input terminals

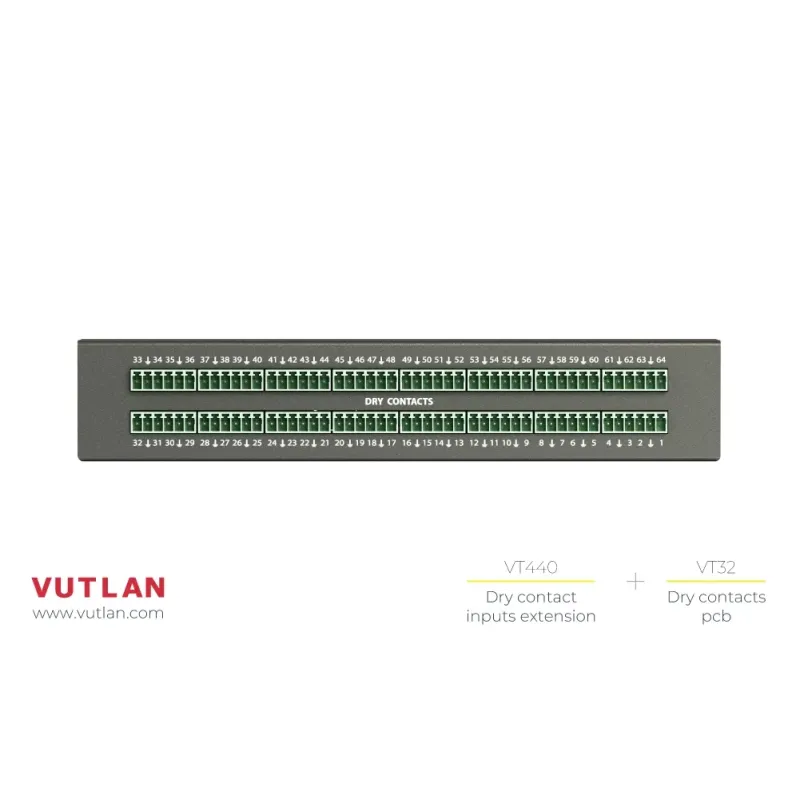

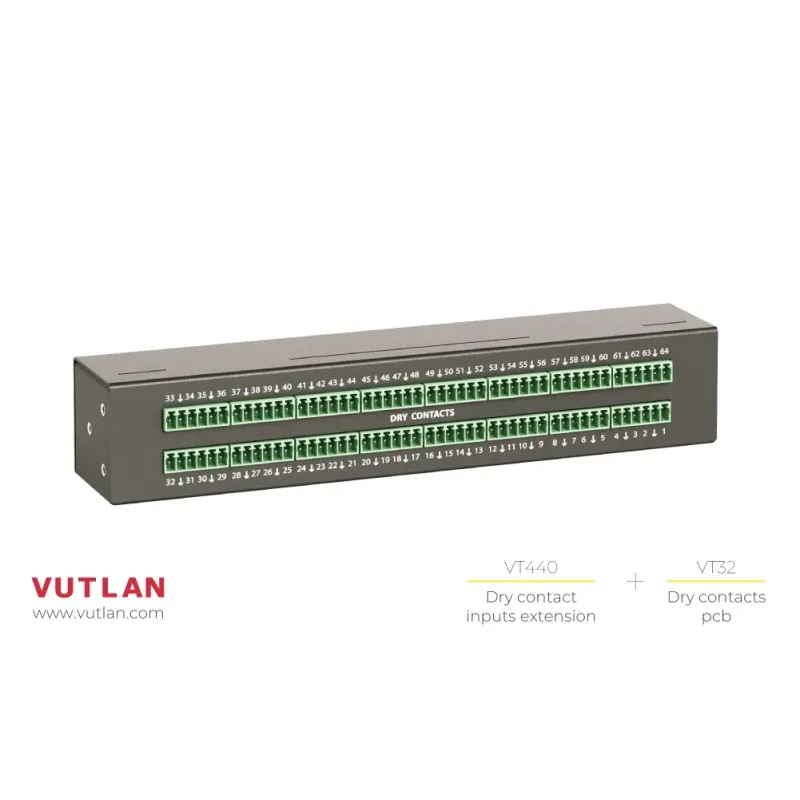

VT440 + VT32
VT440 unit together with VT32 extension have have x64 dry contact input terminals.

Accessories

VT32 / Dry contacts extension pcb

Adds additional x32 dry contact input terminals.

VT32 Product page

Use cases

  • General Alarm

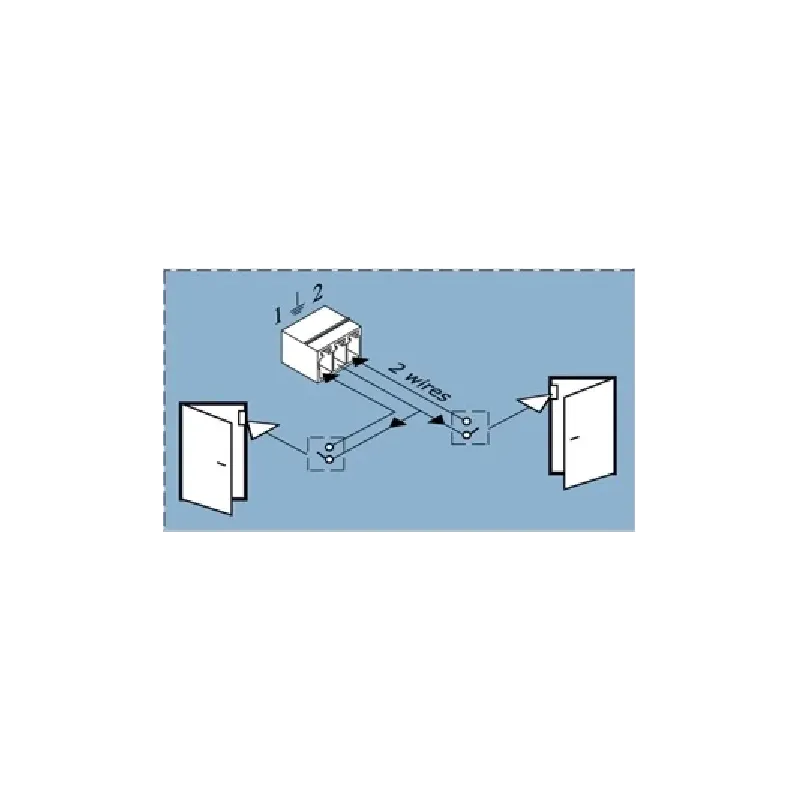

  • Door open/closed

Specifications

Device type:
CAN bus device
Network Interface:
CAN open
Inputs:

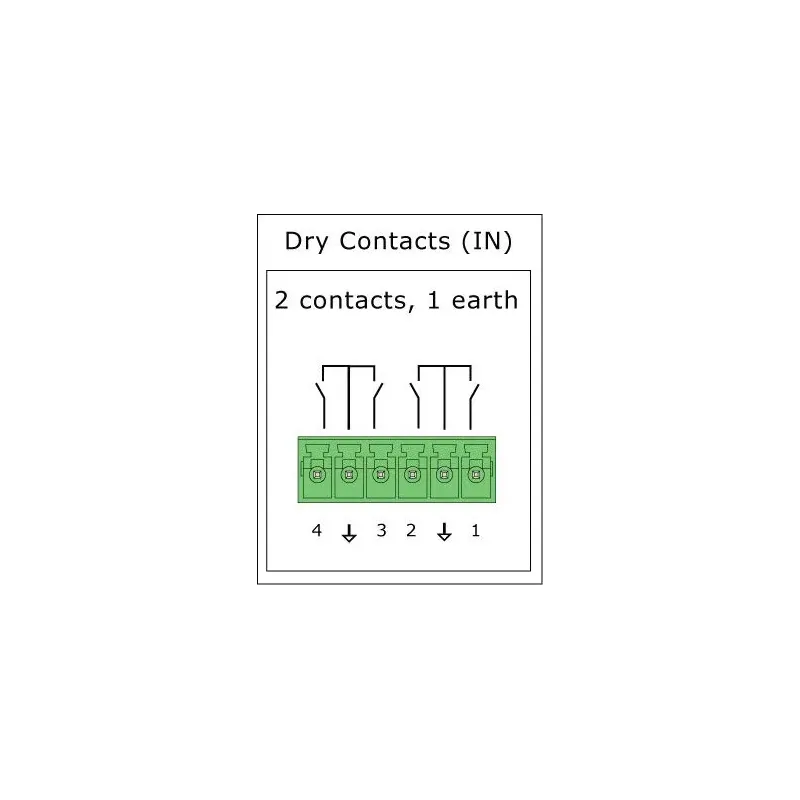

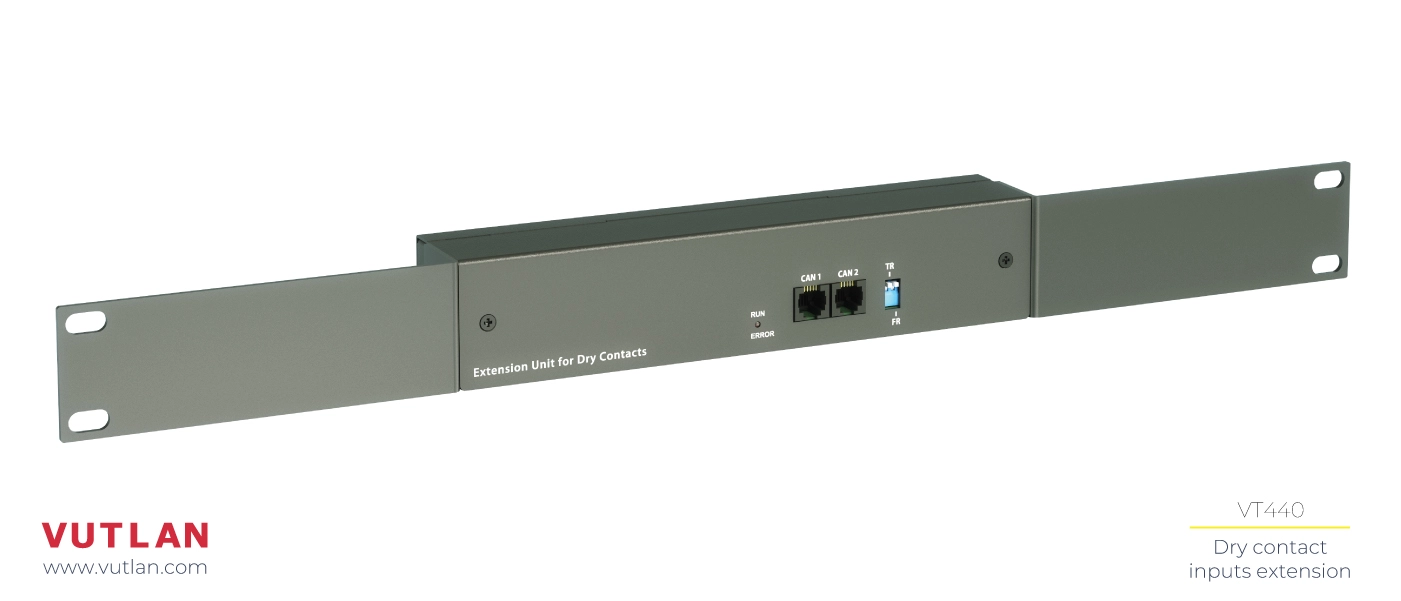

32 dry contacts inputs (2 wires) RJ11/RJ12 6P4C ports for CAN bus
Daisy chain:
Yes, possible on a CAN bus ports.
Usage:
Add 32 dry contact inputs (digital inputs)
Operating temperature:
Optimal: -10° C to +80° C
Extended: -40° С to +100° C
Operating humidity:
0 to 95 % (non condensing)
Power Consumption:
1 Watt
Max. distance from the unit:
225m from a monitoring unit
Accuracy:
Width 215, Height 40, Depth 40 mm
Mounting possibilities:

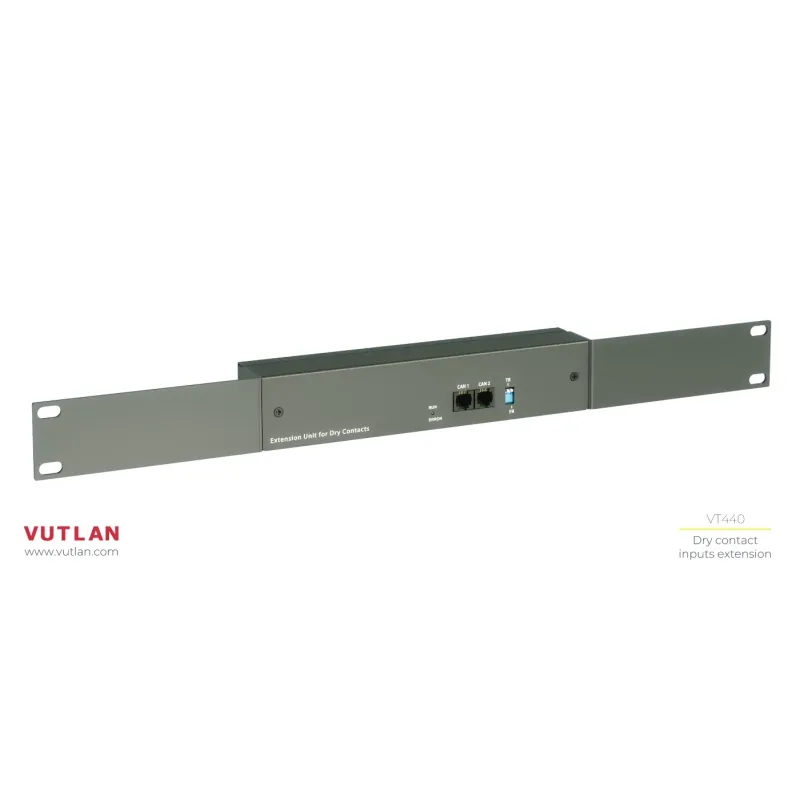

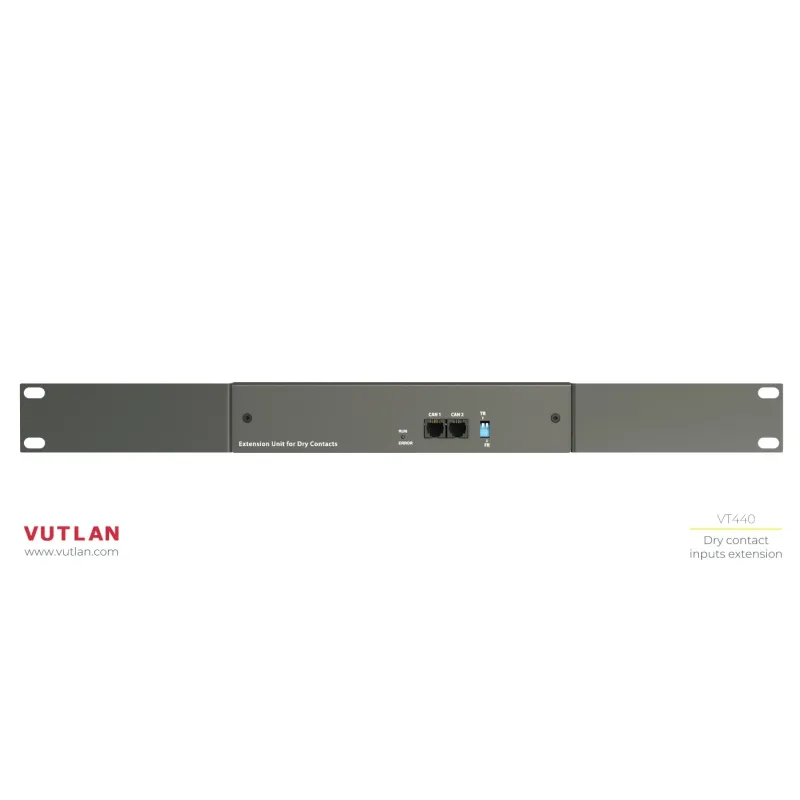

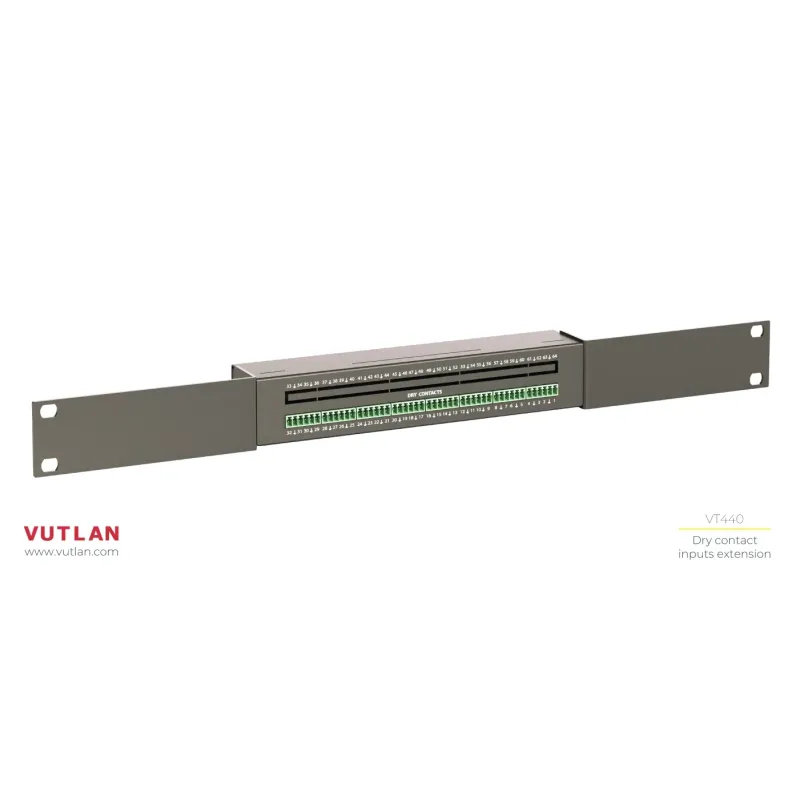

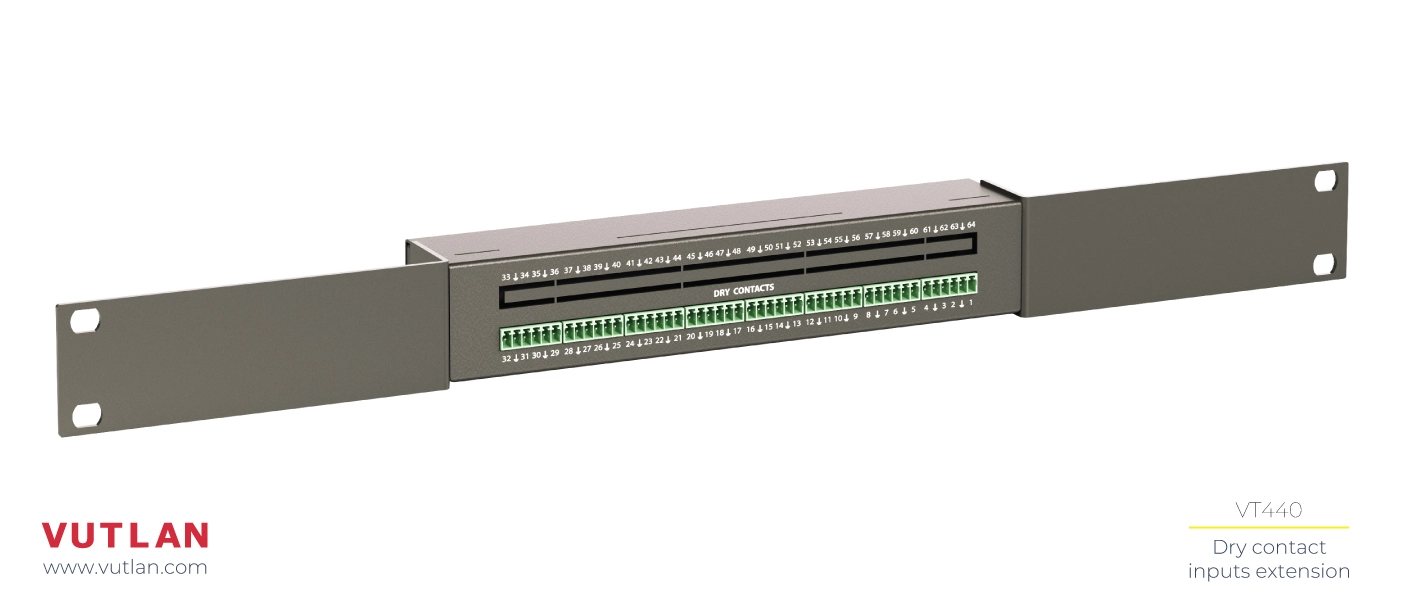

19" rack-mountable, Desktop, Wall mount

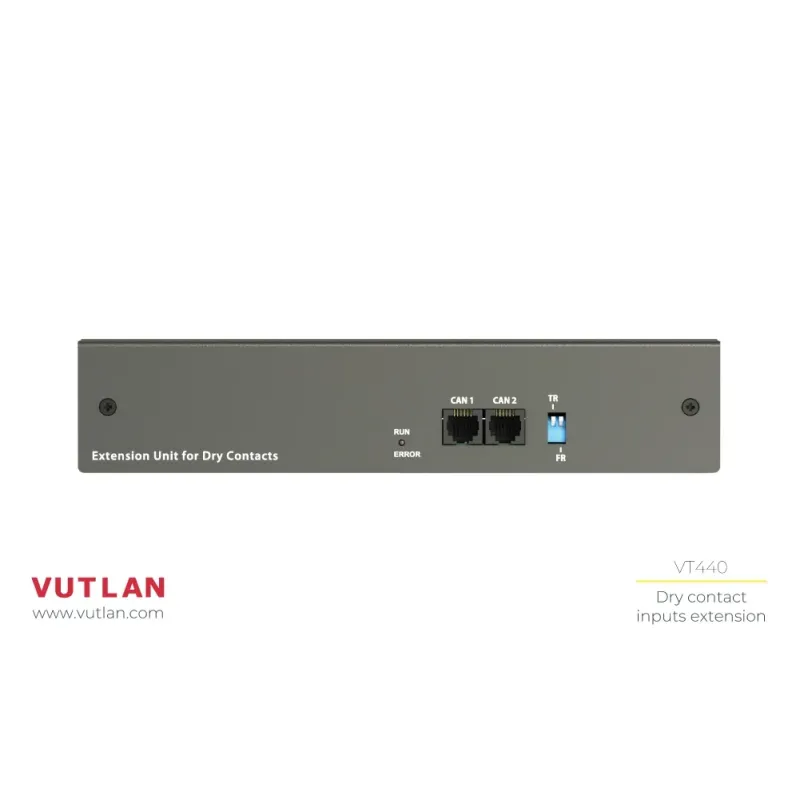

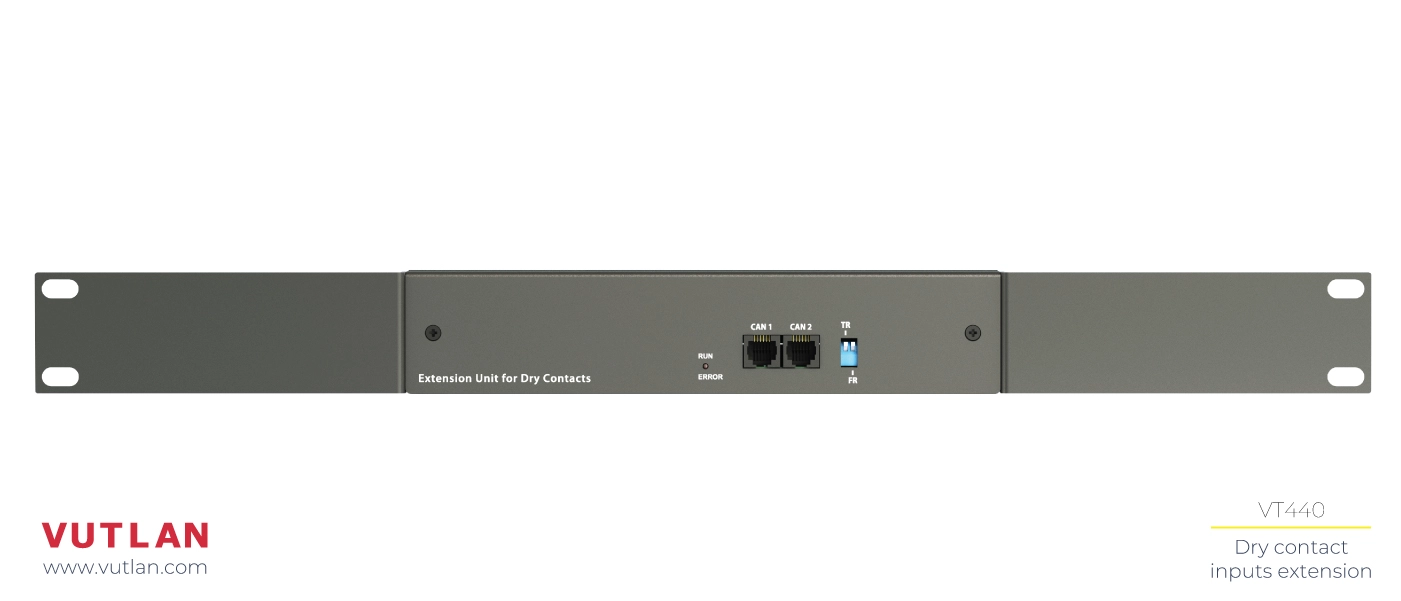

Status Indicators:
Red (Error), Green Led (Run)
TR switch:
Activate if the unit is the last unit in a CAN bus chain.
Origin of goods:
Made in EU
HS Code:
8471 50 000
GTIN:
8588009886266
