KMS-30 Contact Magnet Sensor
Previous
Next
Description

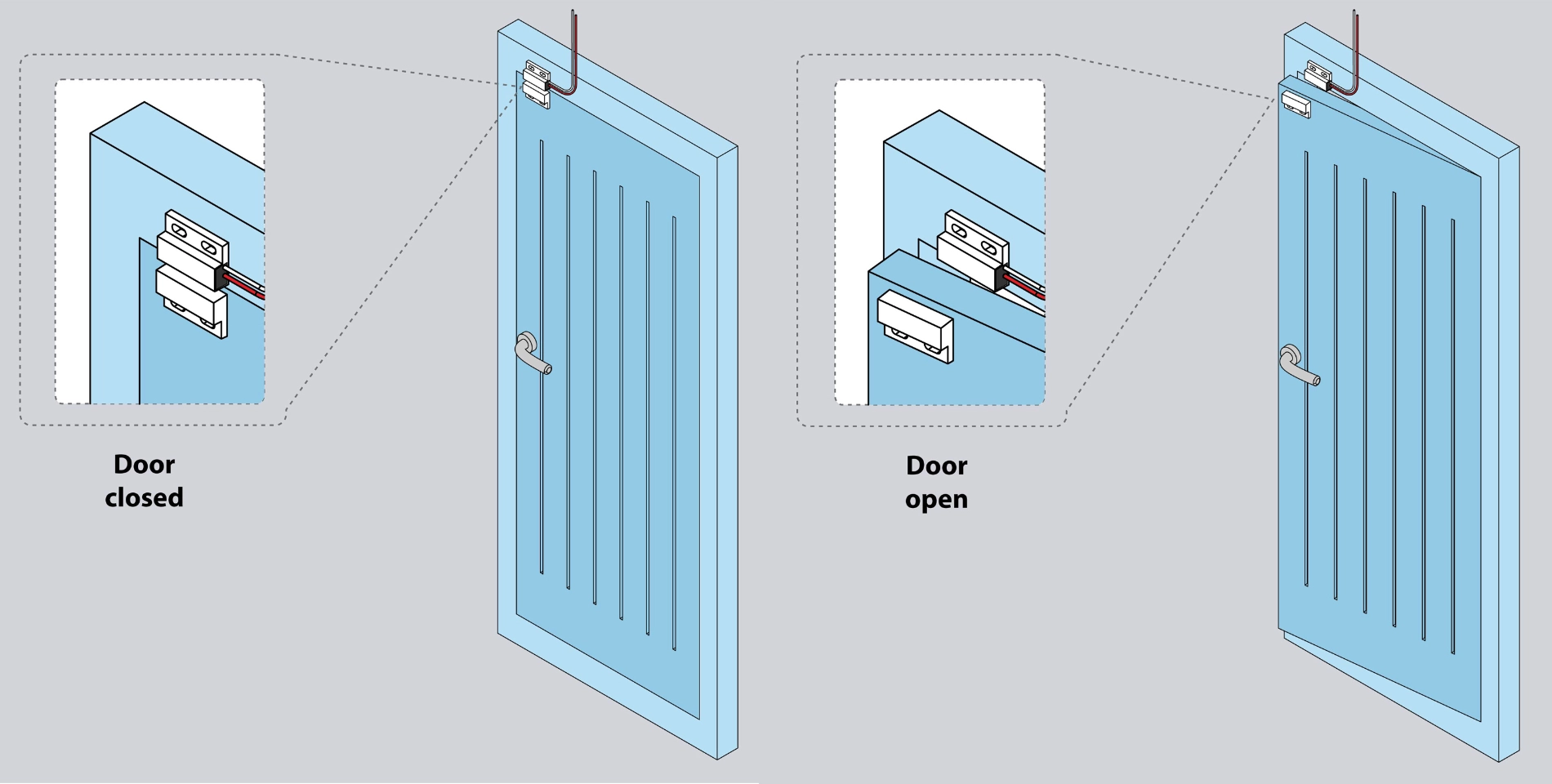

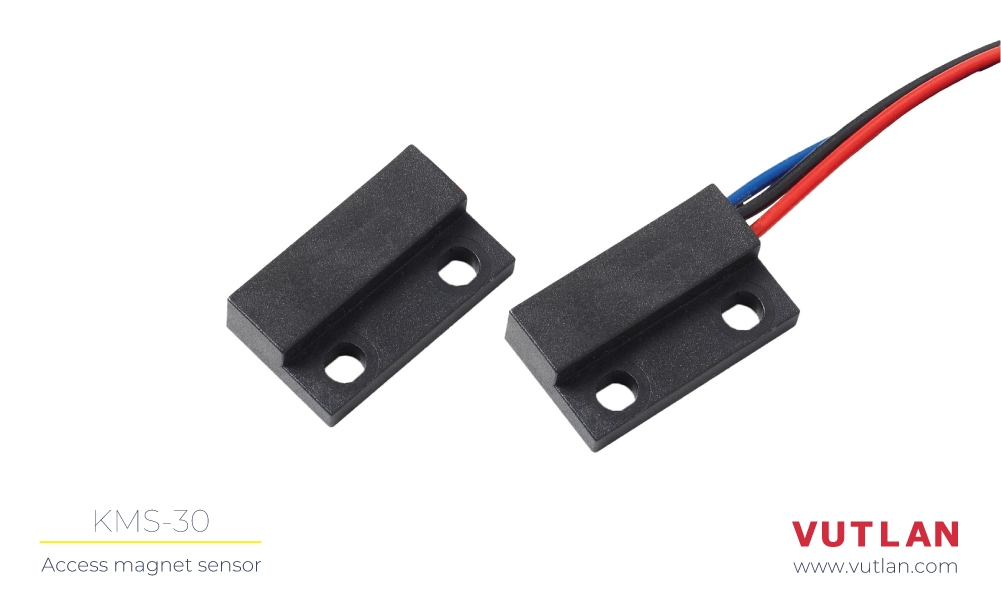

The KMS-30 Magnet Sensor is essential for access control and is designed to monitor the status of doors and windows (open or closed). It consists of two parts: a magnet and a sensor.

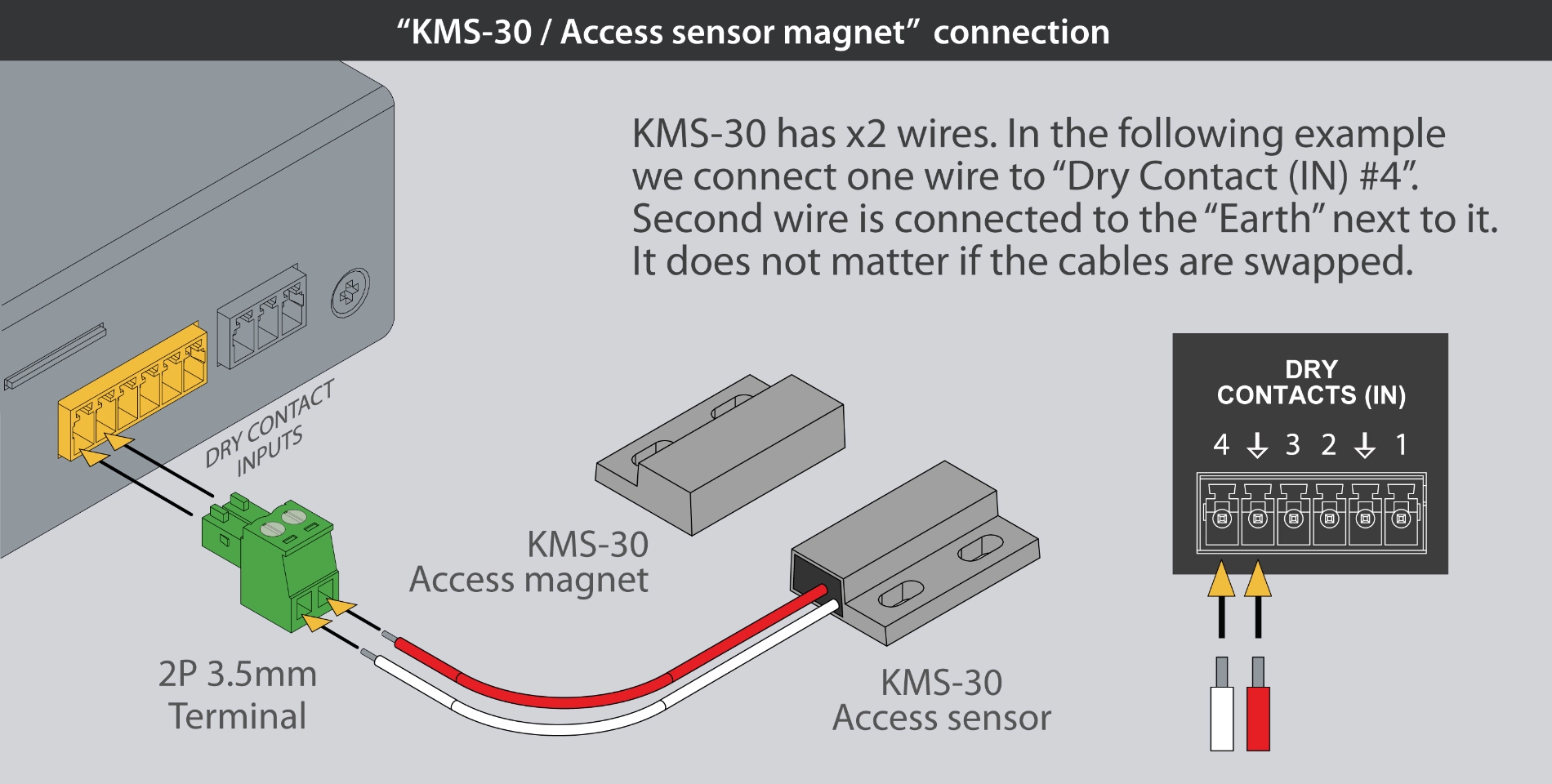

This sensor easily connects to any dry contacts connector of Vutlan monitoring devices.
The length of the connected cable is 1.8 meters.
Use cases
The sensor's versatility makes it a practical solution for a wide range of environments where monitoring access points is critical.
- Access Monitoring Control: Detects the opening of doors, windows, server rack doors, and enclosures, providing alerts when entry points are accessed. Ideal for securing IT rooms, server cabinets, and other restricted areas.
- Security Surveillance / Intrusion detection: It can detect unauthorized access attempts by monitoring ggarage doors, gates, and other larger access points, ensuring security for both residential and commercial settings.
- Rack and Cabinet Security: Ensures secure monitoring of IT racks, server cabinets, and enclosures, crucial for data centers and facilities with sensitive equipment.
- Integration with Alarm Systems: Compatible with Vutlan and third-party monitoring systems, it triggers alerts when access points are breached.
Specifications
Type of sensor:
Reed switch, dry contact
Used for:
Used to detect the opening of doors or windows, or other similar in nature objects.
Maximum distance:
500 meters away from Vutlan monitoring unit or VT440 extension
Connection:
lead
Contacts configuration:
SPST-NO
Operating temperature range:
-10 - 50 °C
Recommended operating humidity:
5 - 95%
IP rating:
IP68
Body dimensions:
29 x 18.8 x 6.9 mm
Cable length:
1.2 meters
Components:
Manufactured in E.U.
HS Code:
8531 10 300
GTIN:
8588009886587
Previous
Next
Sensor features
Logic schemes
Logical schemes are used to set automatic actions in response to events occurring in the system.
Dashboard view
The monitoring interface can be customized for each user.
There are widgets with multifunctional graphs and gauges.
Thresholds
Each sensor has 5 alarm thresholds for logical control and notifications.
Graphs and Logging
Vutlan supports recording to SD card and USB stick.
Data from the entire system loaded with sensors is stored for up to 3 years.
-01.webp)
Previous
Next
Add more Dry contacts using VT440
The VT440 / Dry Contacts extension unit increases the number of Dry contacts that can be connected to any Vutlan monitoring device.
Each VT440 device adds 32 dry contacts. Each VT440 + VT32 expansion module adds 64 dry contacts.
A tab for monitoring and configuring dry contacts is available in the Vutlan device interface.
Controllers with dry contact input terminals:
All Vutlan monitoring units have a certain number of dry input contacts.
